Pedestrian with impact high

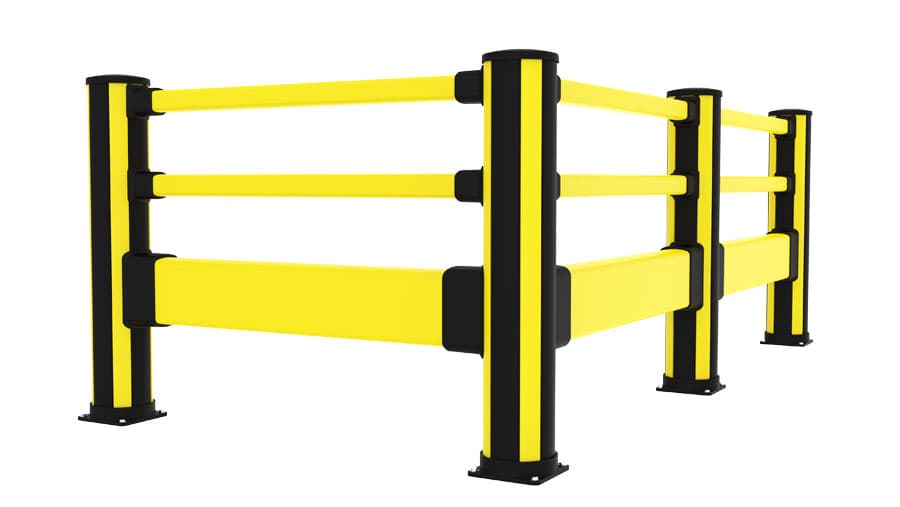

Use the X-Protect Pedestrian + Impact high barrier configuration to protect walkways from medium duty vehicles where there is a reduced risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.
Models
Models
Product Information

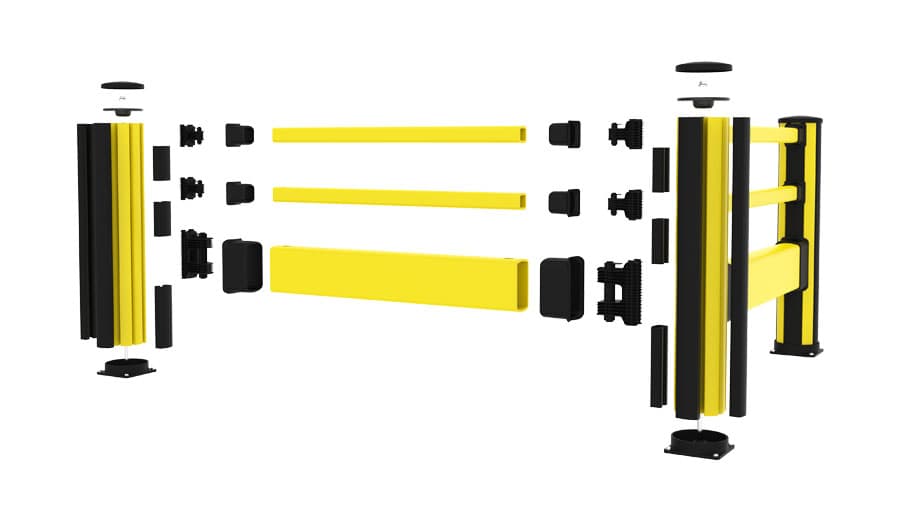

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
| Impact test results | |||||
| Area of impact | Load | Equivalent to | 90° Deflection | Force to fixings | |
| Centre of barrier C - C as below | |||||
| 2000mm | 8000 J | 2500 kg 9.1 km/h | 5000 kg 6.4 km/h | 450mm | 17 kN |
| Posts | |||||
| End post | 1850 J | 2500 kg 4.3 km/h | 5000 kg 3 km/h | NA * | 11.6 kN |
| Mid post | 2450 J | 2500 kg 5 km/h | 5000 kg 3.5 km/h | NA * | 12.7 kN |
* Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
