Essential Pedestrian with three rails
The X-Protect Essential Pedestrian Barrier with Three Rails provides added impact resistance and visibility for safe, well-defined walkways. Ideal for light-duty zones, it enhances separation between people and vehicles while keeping layouts open and efficient.
Models
Models
Downloads
Essential Pedestrian with three rails
Essential Pedestrian with three rails
—
Product information
X-Protect Essential Pedestrian
Essential Pedestrian with three rails
—
Assembly guide
X-Protect Essential Pedestrian
Essential Pedestrian with three rails
—
Technical Drawing
X-Protect | Impact protection
Essential Pedestrian with three rails
—
Brochure
Product Information
The Essential Pedestrian Barrier with Three Rails provides an enhanced level of protection for areas where additional height and visibility are required. Designed for light-duty impact zones, it creates safe, well-defined walkways while maintaining an open and efficient layout.

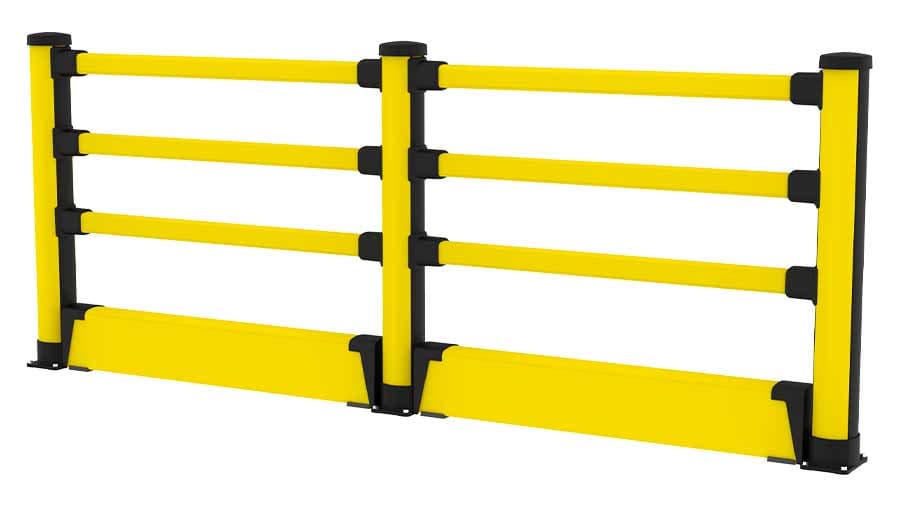

To further improve site safety, the Floor Barrier can be integrated into this configuration. It acts as a solid base element that reinforces the lower section of the system, offering additional protection against ground-level risks such as vehicle forks, pallets and debris. This combination provides a continuous barrier line that enhances both visibility and impact resistance while maintaining smooth traffic flow between zones.
Installation is quick and efficient, with minimal fixings required and no unnecessary stress on the floor surface.
Key features
- Fast to install
- Kind to the floor
- Easy to repair
| Impact test results | |||||
| Area of impact | Load | Equivalent to | 90° Deflection | Force to fixings | |
| Centre of barrier C - C as below | |||||
| 1500mm | 2000 J | 2500kg 4.6 km/h | 1500kg 5.9 km/h | 334mm | 4.2kN |
| 2000mm | 2250 J | 2500kg 4.8 km/h | 1500kg 5.9 km/h | 414mm | 5.1kN |
| Posts | |||||
| End post | 1300 J | 2500kg 3.7 km/h | 1500kg 4.7 km/h | 550mm | 6.1kN |
| Mid post | 1300 J | 2500kg 3.7 km/h | 1500kg 4.7 km/h | 525mm | 5.6kN |
