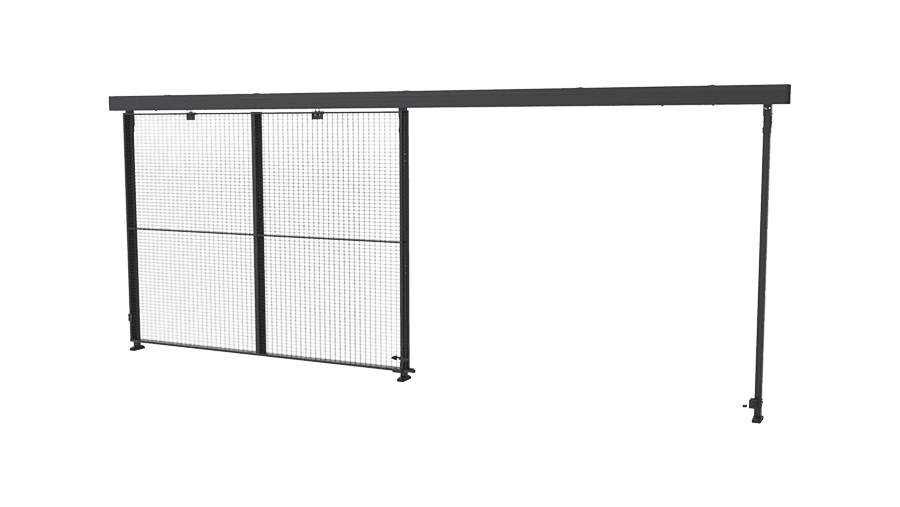

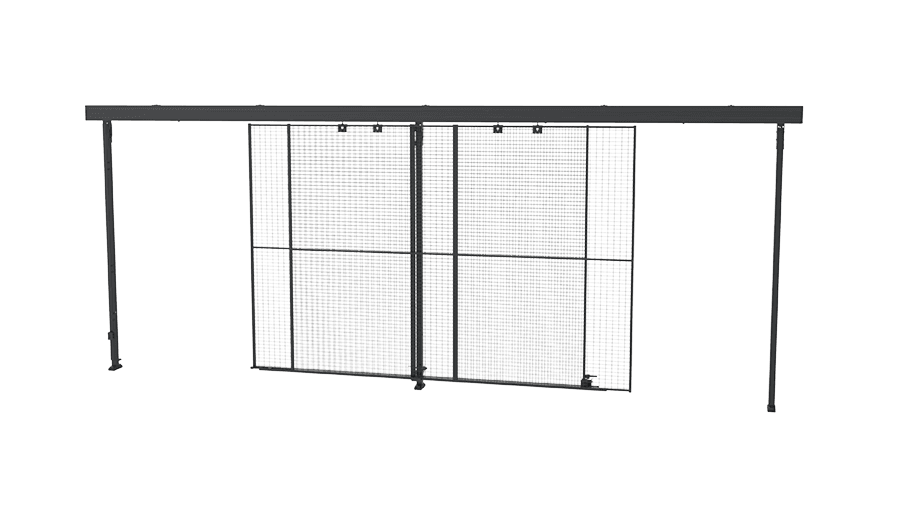

Double sliding door, overlapping
View CAD formatsDownload datasheet
An overlapping sliding door is the perfect solution where space is limited. The sliding door can also be used when there are two output points from one machine.
(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)
Models
Models
CADArticleDescriptionMax WidthHeightPanelFits PostsDownload
D24-230140—1340 (mm)2300 (mm)Mesh, Plastic, Sheet metalClassic 50x50
Images availableDownload available
D44-230140—1340 (mm)2300 (mm)Mesh, Plastic, Sheet metalPremium 70x70
Images availableDownload available
DP24-230290Double sliding doors with upper frame - overlap—2300 (mm)Plastic, Sheet metalClassic 50x50
Images availableDownload available
DP44-230290Double sliding doors with upper frame - overlap2840 (mm)2300 (mm)Plastic, Sheet metalPremium 70x70
Images availableDownload available
