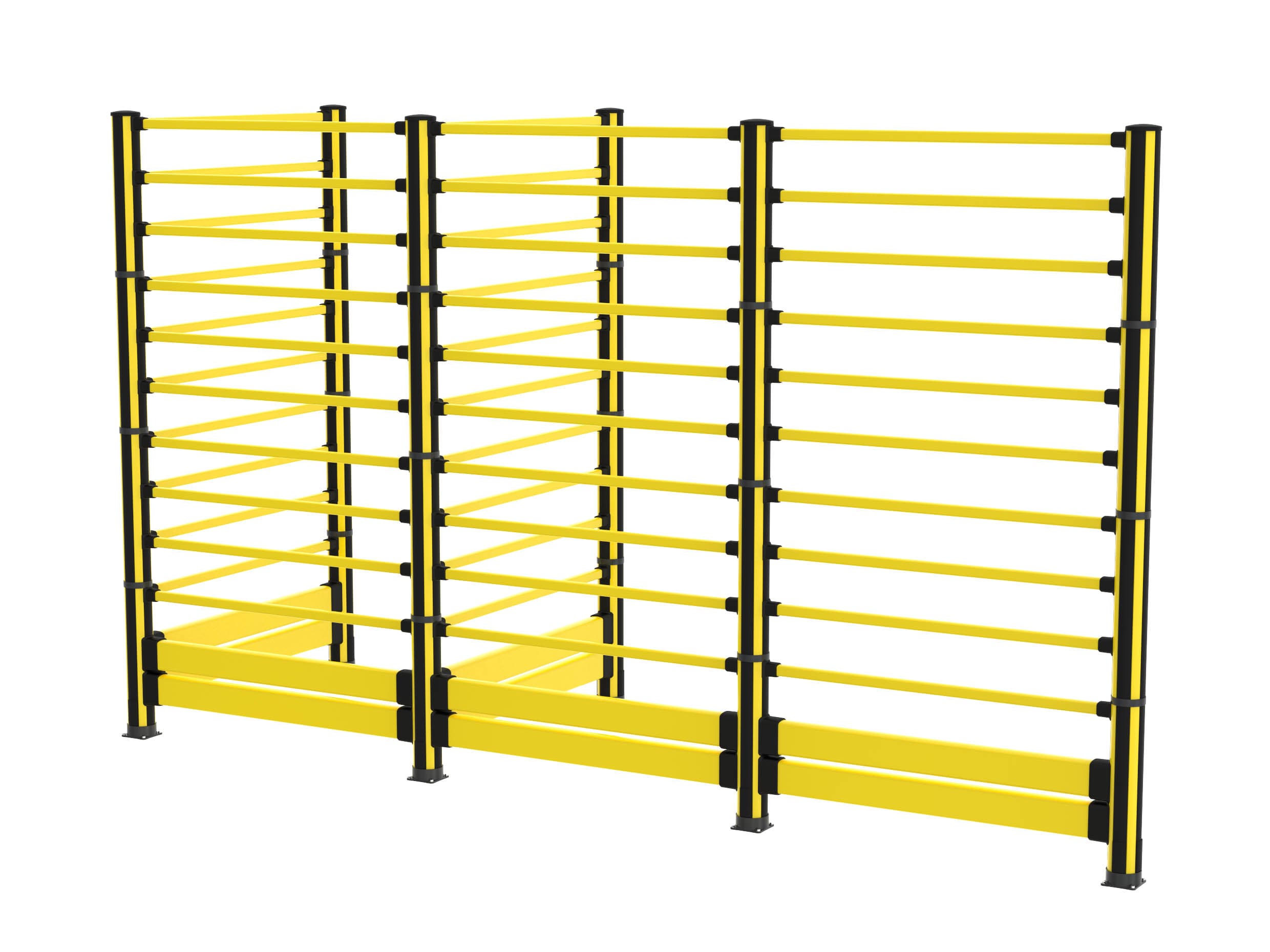

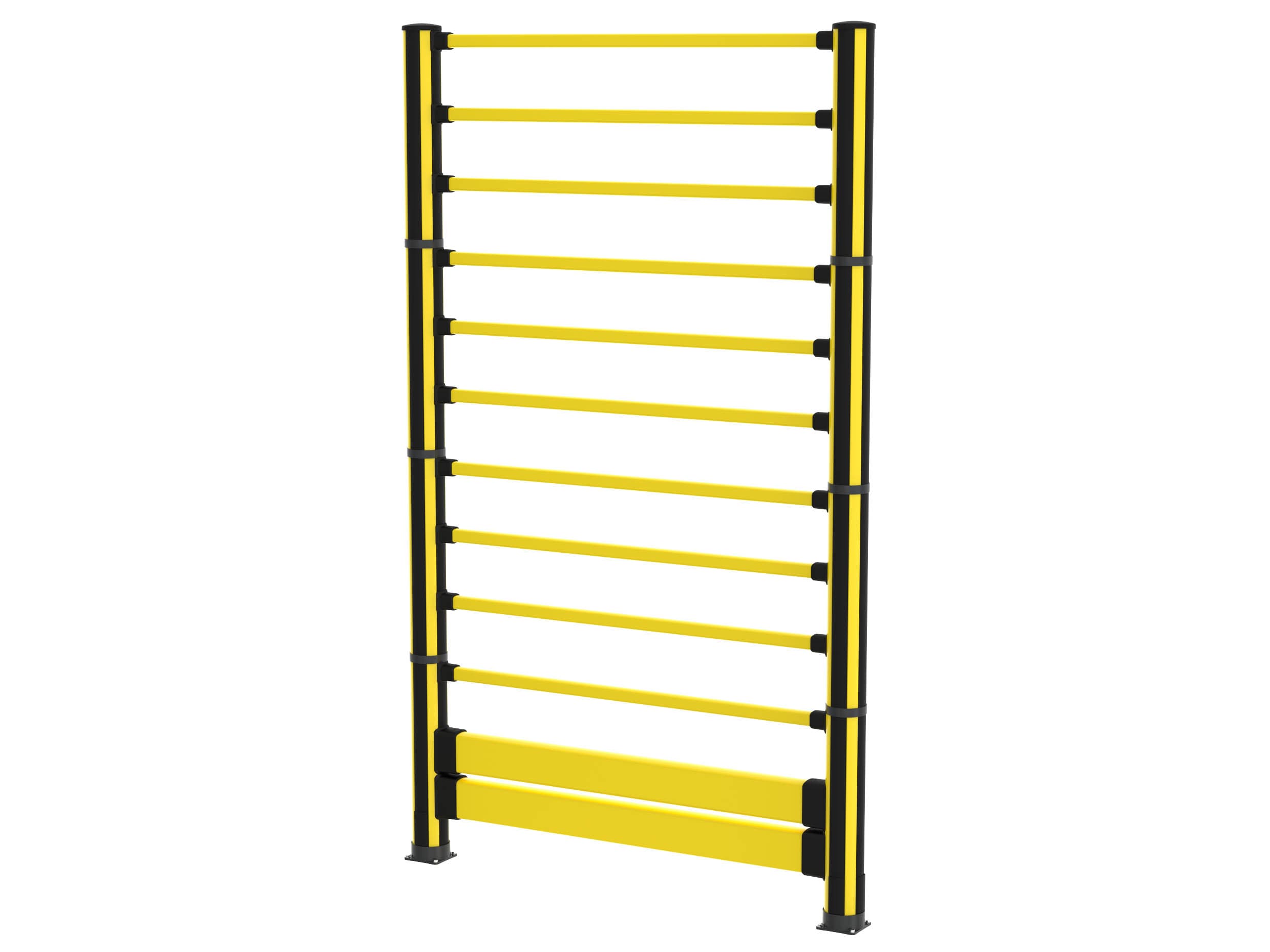

Topple Barrier Impact
The X-Protect Topple Barrier Impact combines topple prevention and impact protection in warehouse and logistics environments with mixed pedestrian and vehicle traffic. Designed to maintain safe workflows and clear separation, the system helps protect personnel, goods and surrounding infrastructure.
Models
Models
Downloads
Product Information
The X-Protect Topple Barrier Impact is developed for warehouse, logistics and production environments where falling goods, pallet handling and vehicle traffic create safety risks for personnel and operations.
The reinforced configuration combines lower rails with impact protection and upper pedestrian protection to help prevent goods from entering walkways while providing additional protection against vehicle impacts. Its modular construction integrates directly with the X-Protect range, enabling flexible and continuous protection layouts throughout the facility.
Suitable for high-bay storage, loading areas, pick and pack zones and internal logistics routes, the barrier maintains open visibility and efficient workflows in demanding operational environments. The flexible design helps absorb impact forces while installation remains fast and straightforward using the same simple installation approach as the rest of the X-Protect range.
Key features
- Combined topple and impact protection
- Designed for forklift and AGV traffic
- Modular X-Protect integration
- Fast and easy installation
Impact test results
Product: | Area of impact | Load | Equivalent to | Equivalent to | 90' deflection | Force to fixings |
Centre of barrier C - C as below | ||||||
Topple Barrier Impact 2300 | 2000 mm | 6200 J | 2500 kg | 5000 kg | N/A | 12,2 kN |
Post | ||||||
Topple Barrier Impact 2300 | End post | 5250 J | 2500 kg | 5000 kg | N/A | 5,4 kN |
Topple Barrier Impact 2300 | Mid post | 5250 J | 2500 kg | 5000 kg | N/A | 5,9 kN |
Area of impact | Load | Equivalent to | 90' deflection | Force to fixings | ||
Centre of barrier C - C as below | ||||||
Topple Barrier Impact 3400 | 2000 mm | 6200 J | 2500 kg | 5000 kg | N/A | 5,9 kN |
Post | ||||||
Topple Barrier Impact 3400 | End post | 5250 J | 2500 kg | 5000 kg | N/A | 4,8 kN |
Topple Barrier Impact 3400 | Mid post | 5250 J | 2500 kg | 5000 kg | N/A | 5,1 kN |
* Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection. The Axelent Topple Barrier is tested for static load on top rail up to 400 kg.Â
