Impact barriers

Impact

3D

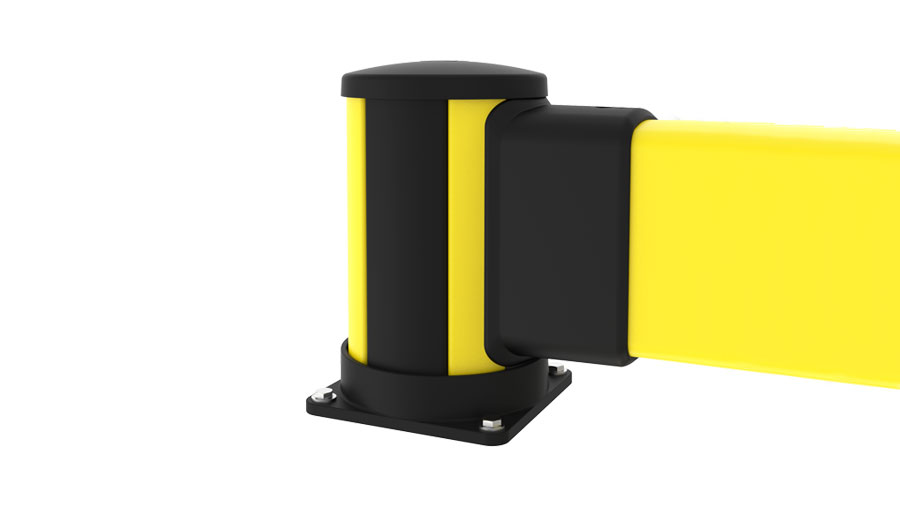

Use the X-Protect Impact Barrier for ground level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones. Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just...

Get your quote now

Models

CAD Article Description Height (mm) Length (mm) CC (mm) Color
RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow (RAL 1018)
RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow (RAL 1018)
RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow (RAL 1018)
RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow (RAL 1018)
RCI1-077-0100 Impact rail 770 1000 Zinc Yellow (RAL 1018)
RCI1-047-0070 Impact rail 470 700 Zinc Yellow (RAL 1018)
RCI1-027-0050 Impact rail 270 500 Zinc Yellow (RAL 1018)
BCM1-035-I100 Impact mid 350 Zinc Yellow (RAL 1018)
BCM0-035-I100 Impact mid 350 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
2
BCE1-035-I100 Impact end 350 Zinc Yellow (RAL 1018)
BCE0-035-I100 Impact end 350 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCC1-035-I100 Impact corner 350 Zinc Yellow (RAL 1018)
BCC0-035-I100 Impact corner 350 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1

Downloads

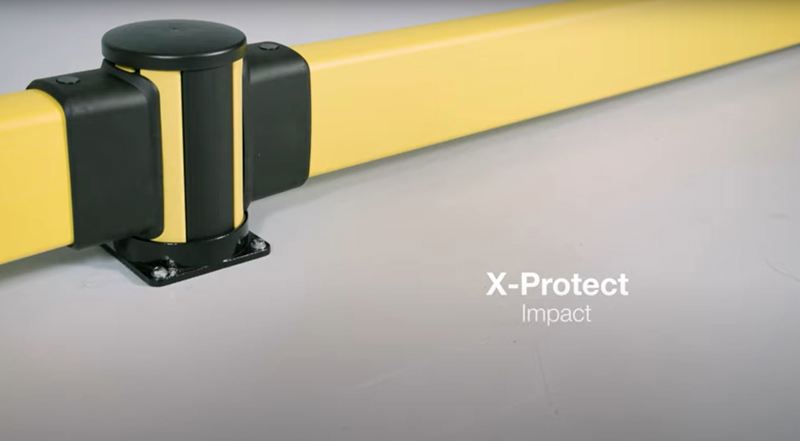

X-Protect Impact

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

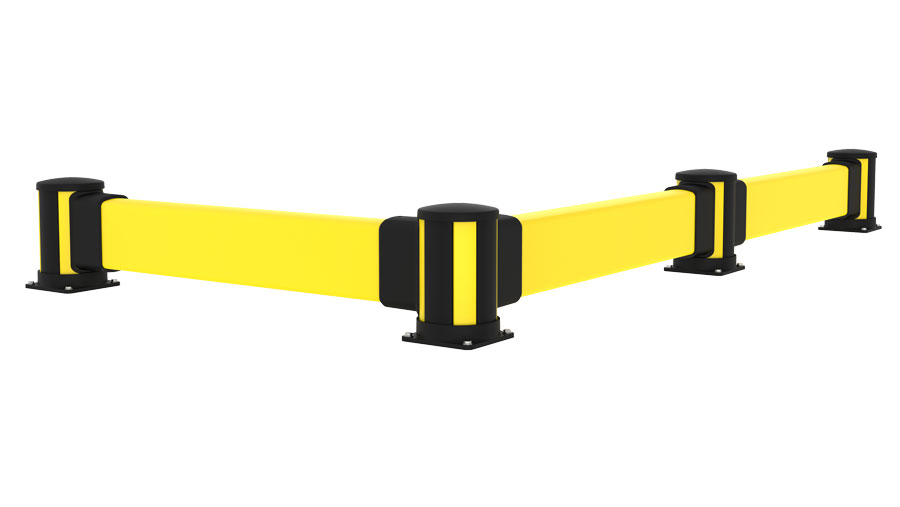

Use the X-Protect Impact Barrier for ground level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones.

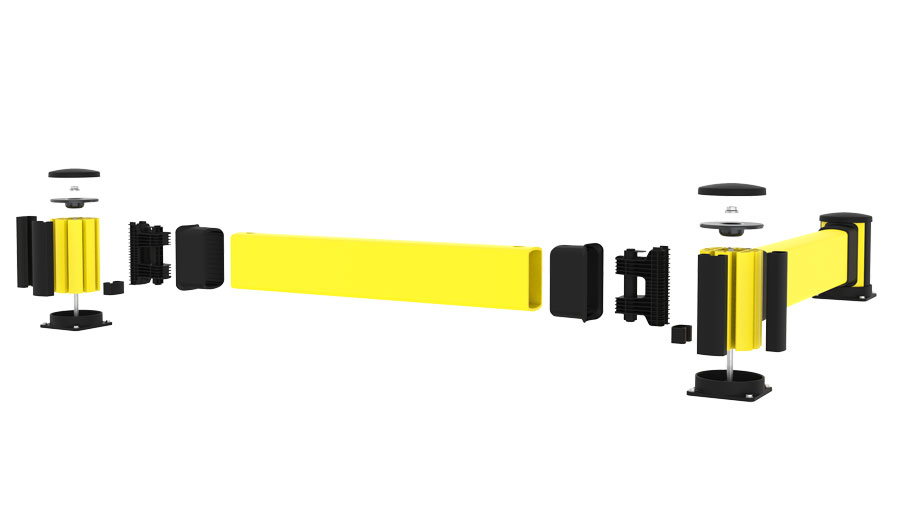

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
