Locks and switches

Switch fittings

3D

Axelent works closely with a number of interlock switch market leaders such as Allen-Bradley, Siemens, Euchner, ABB Jokab and Telemecanique. The wide range of products we can supply to our customers means that we can always supply the very safest and best solution.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Switches

    25 Articles
    CAD Article Description

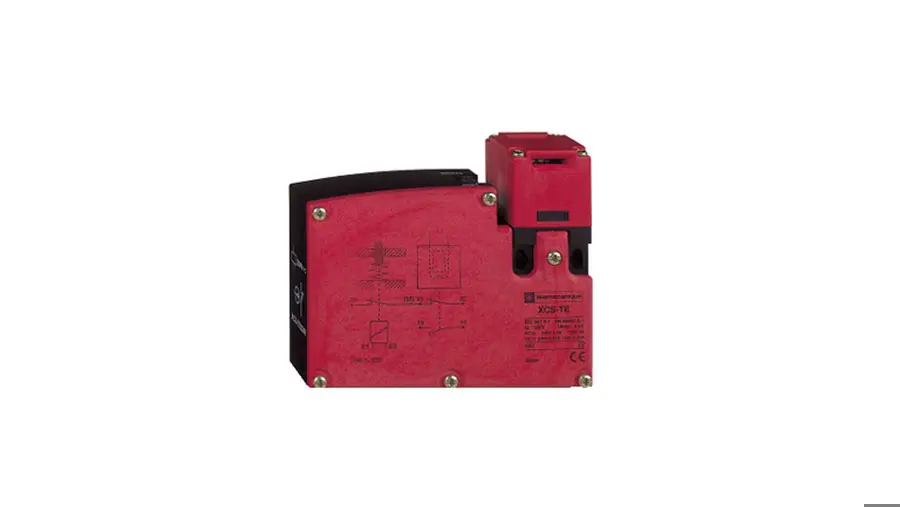

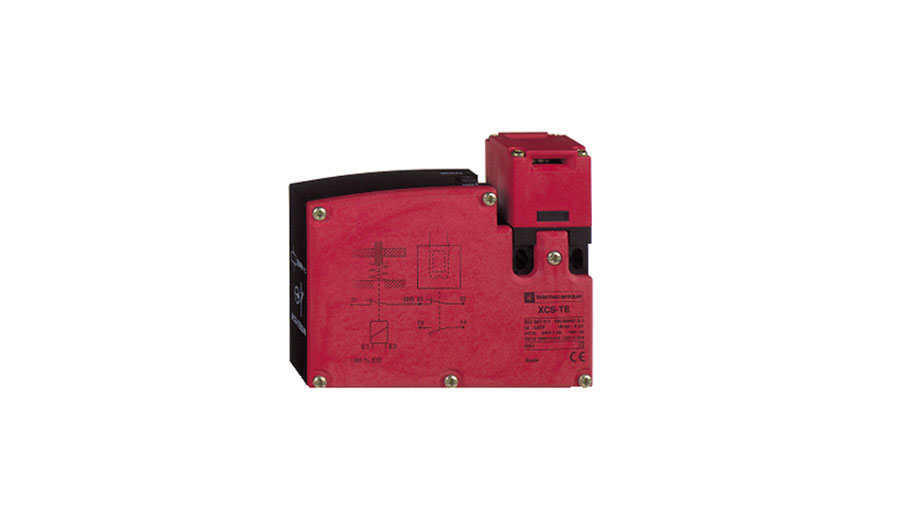

    B-300 Telemecanique, XCS TE7311, plastic, Locking w/o 24 VDC, cont 2NC
    1

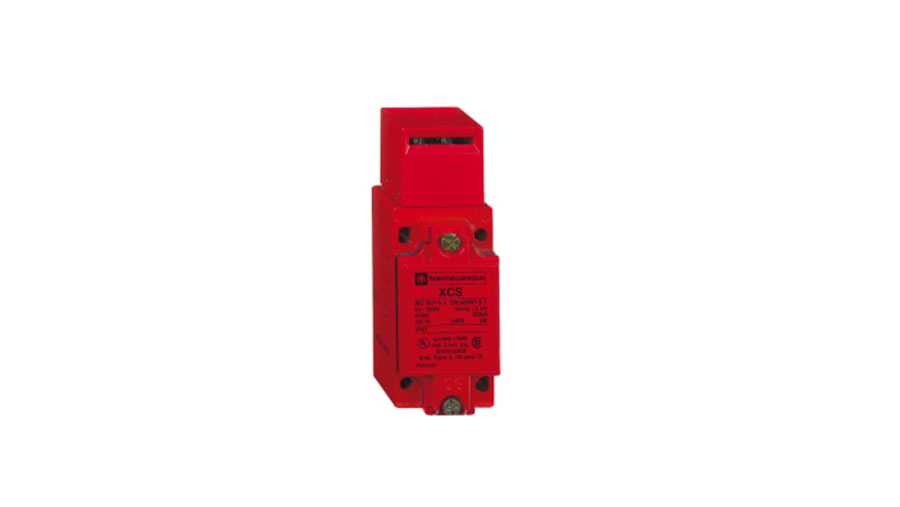

    B-301 Telemecanique, XCS A701, metal, No Lock, cont 2NC+1NO
    1

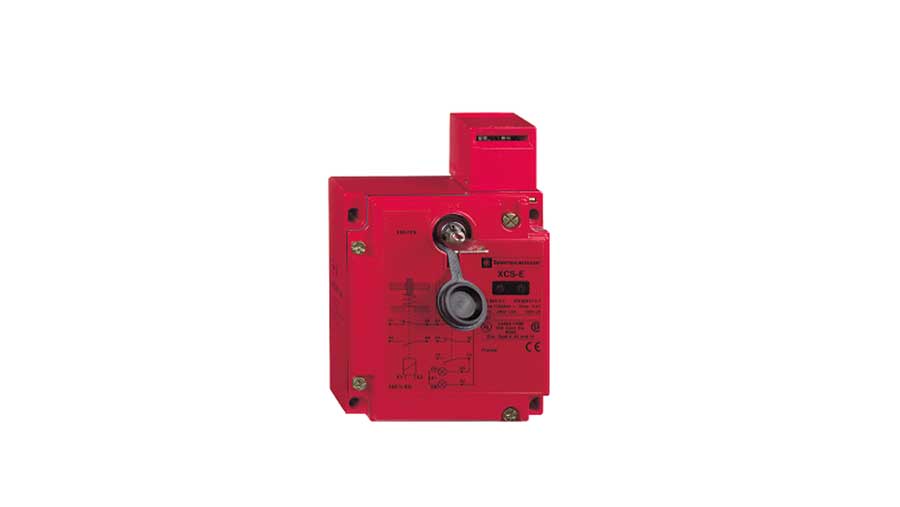

    B-302 Telemecanique, XCS E7311, metal, Locking w/o 24 VDC, cont 2NC+1NO
    1 1

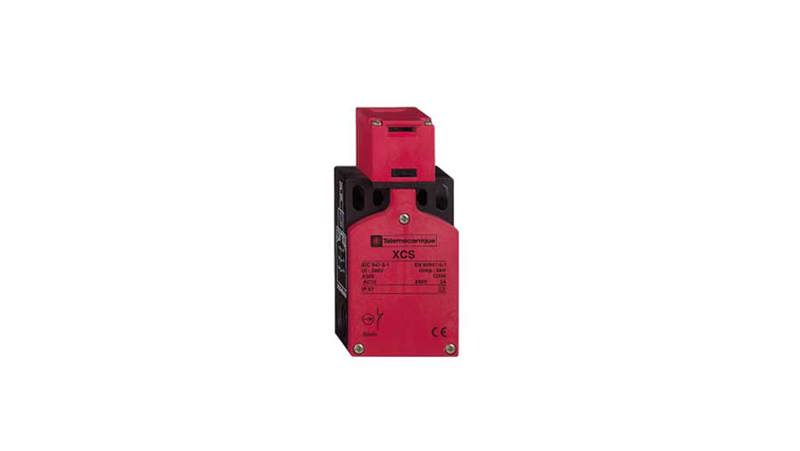

    B-303 Telemecanique, XCS TA791, plastic, No Lock, cont 2NC+1NO
    1

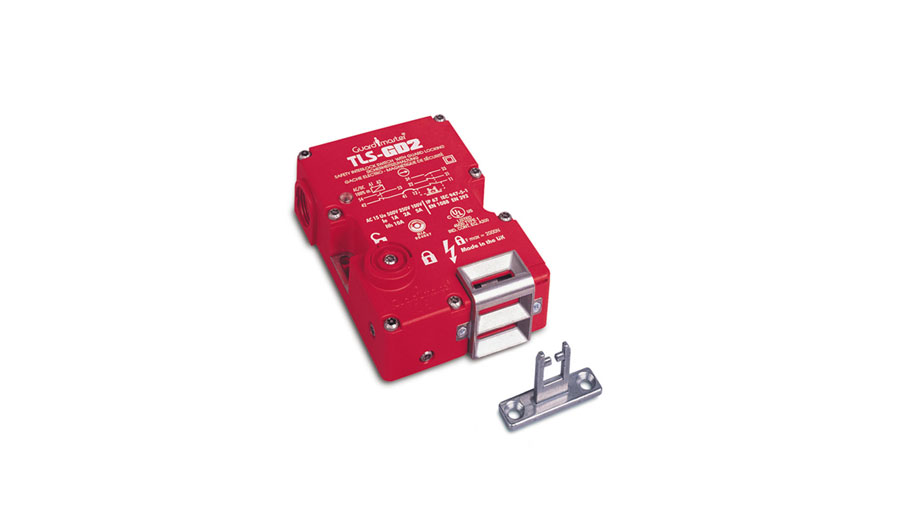

    B-500 Guardmaster, TLS2-GD2, plastic, Locking with 24 VDC, cont 3NC+2NO
    1 1

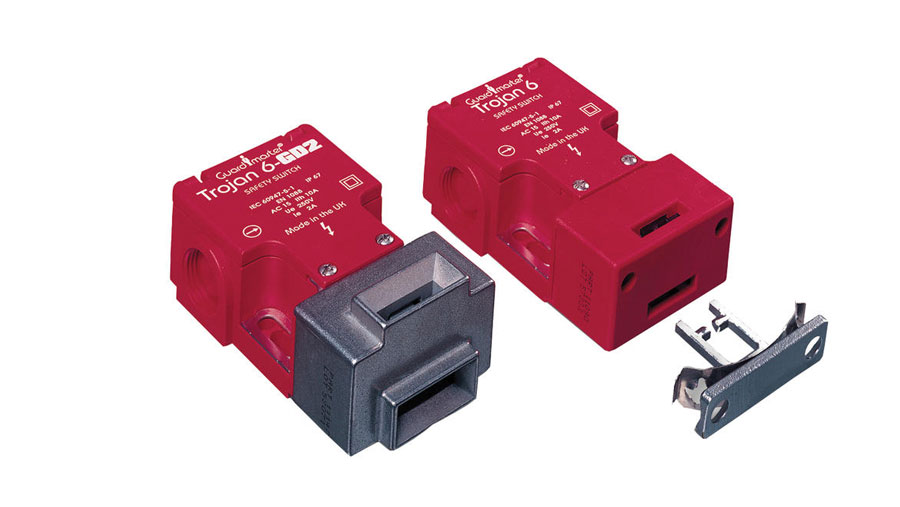

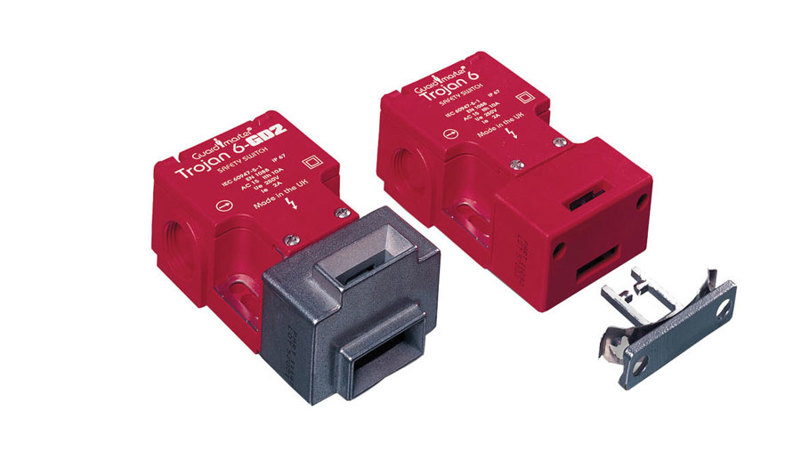

    B-501 Guardmaster, Trojan 5, plastic, No lock, cont 2NC+1NO (incl. key)
    1 1
    B-504 Allen-Bradley cable l=5m 8-pin on M12 socket
    1

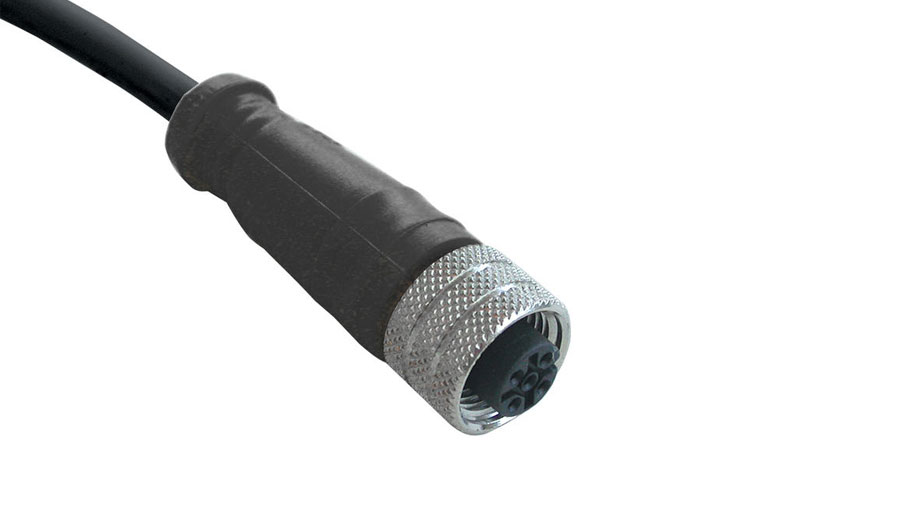

    B-505 Allen-Bradley cable l=20m 8-pin on M12 socket
    1

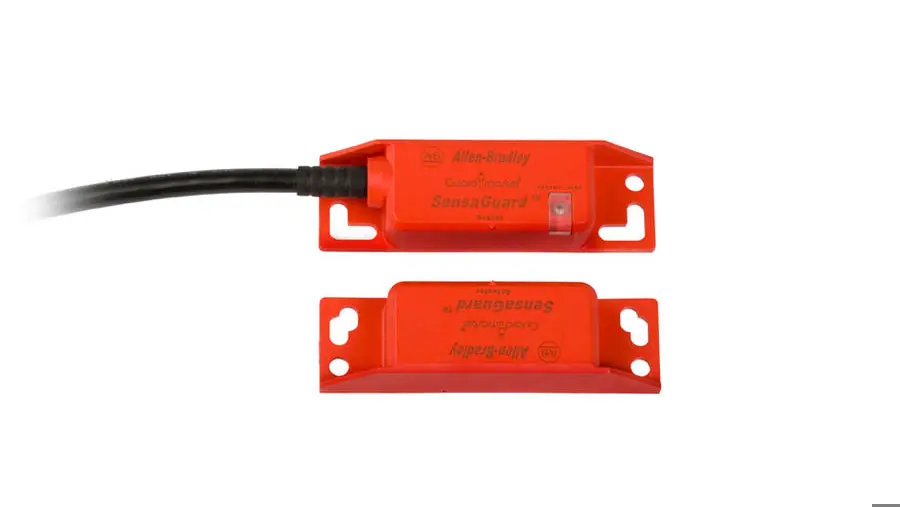

    B-507 SensaGuard II 25x88 non-contact unique coded, incl actuator, 0,2m ca
    1 1

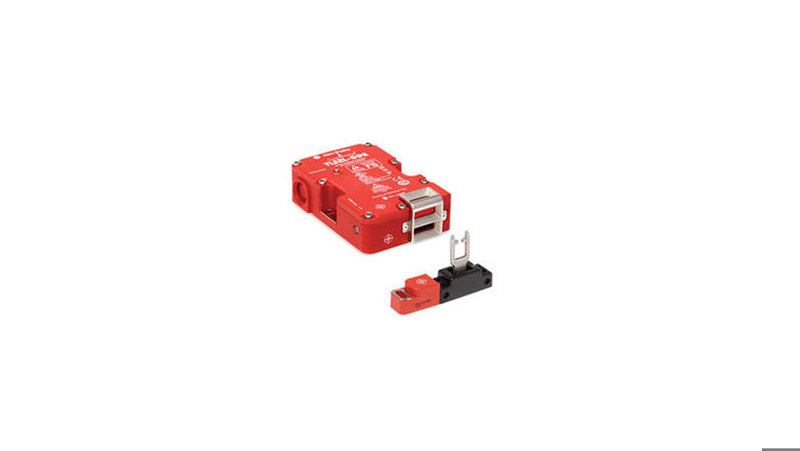

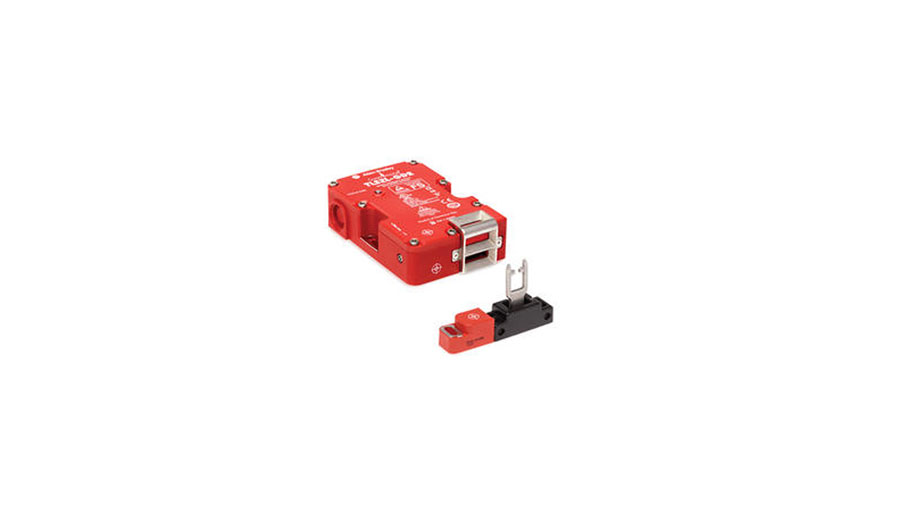

    B-508 Guardmaster TLS-ZL GD2 24VDC, power to lock
    1 1
    B-509 Guardmaster TLS-ZR GD2 24VDC, power to release
    1 1

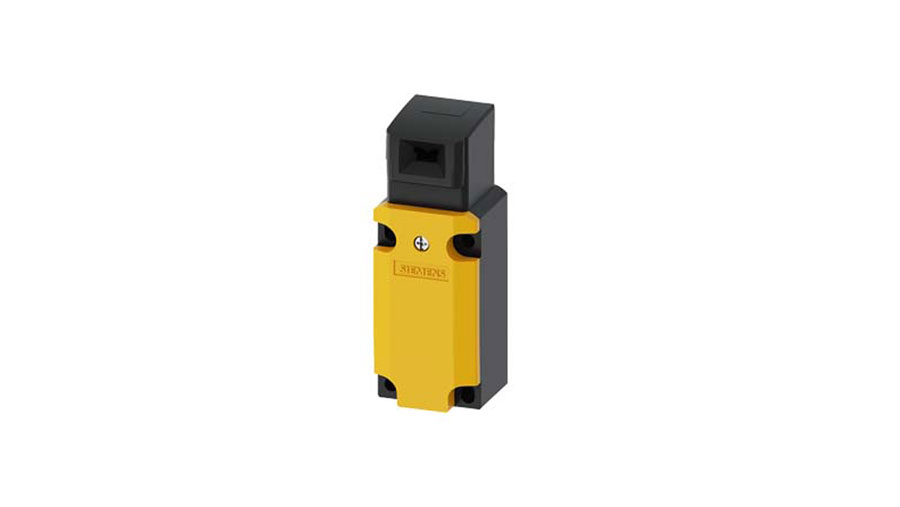

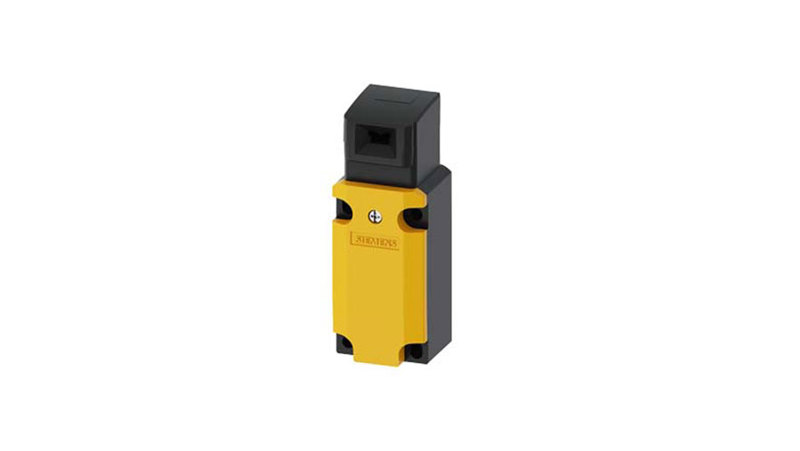

    B-610 Siemens 3SE5 112-0QV10, metal, no lock, cont 2NC+1NO
    1 1

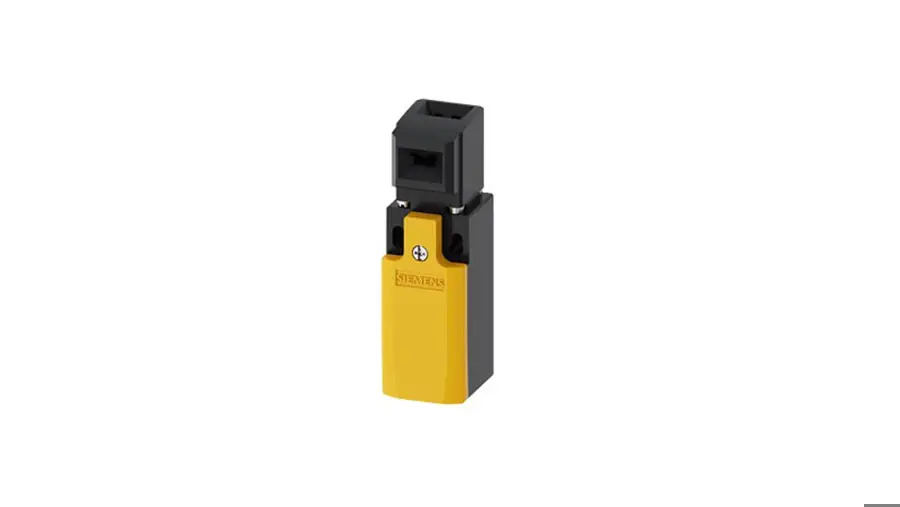

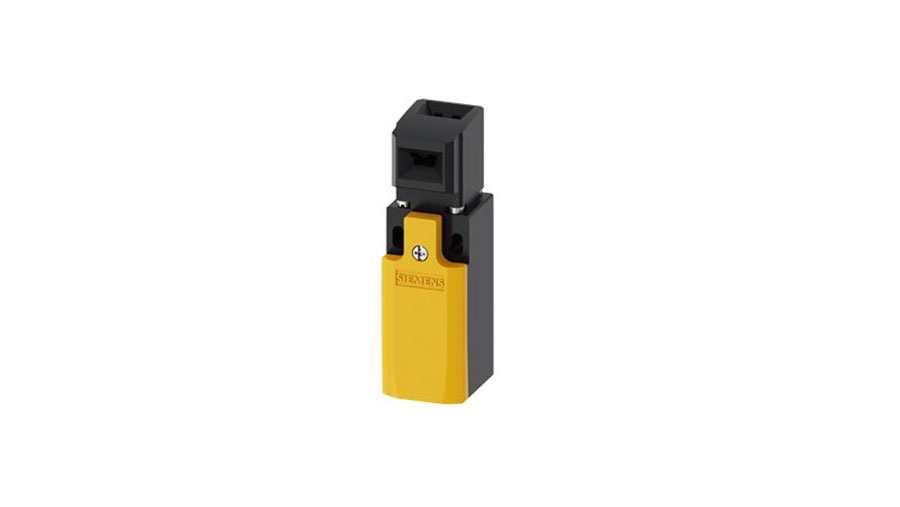

    B-611 Siemens, 3SE5 232-0QV40, plastic, No lock, cont 2NC+1NO
    1 1

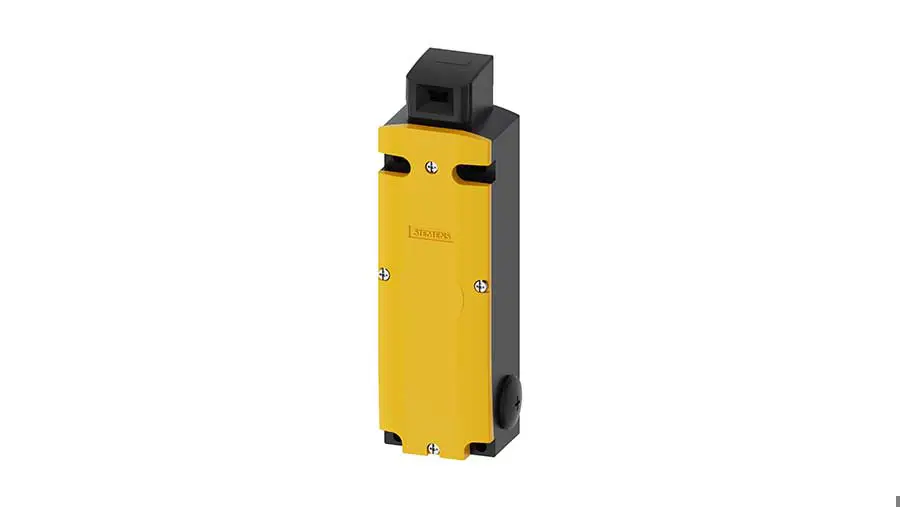

    B-612 Siemens 3SE5 312-0SB11, metal, locking with 24VDC,cont 2NC+1NO,2NC+1NO
    1 1

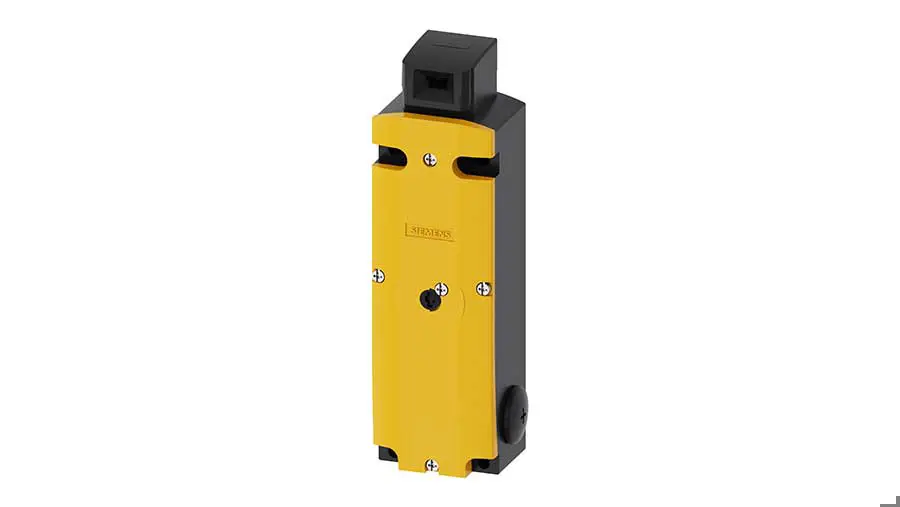

    B-613 Siemens 3SE5 312-0SD11, metal, release 24 VDC, cont 2NC+1NO,2NC+1NO
    1 1

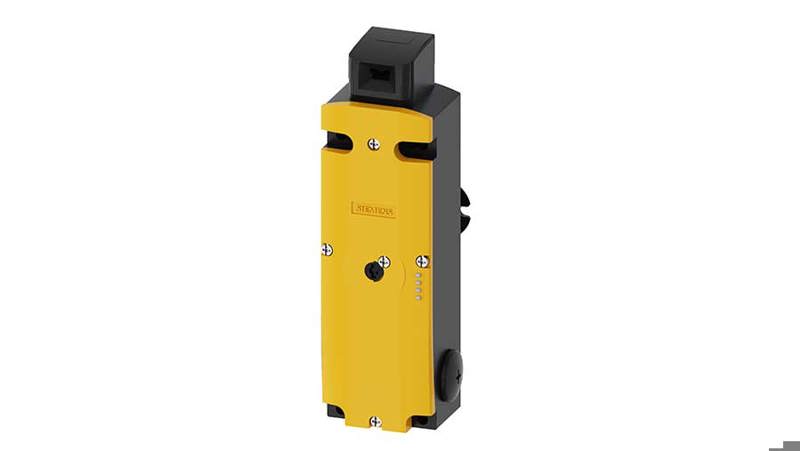

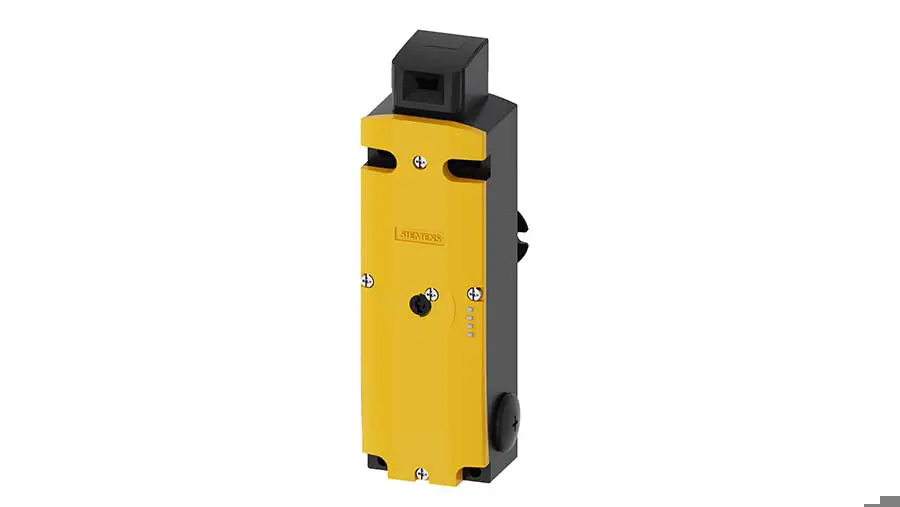

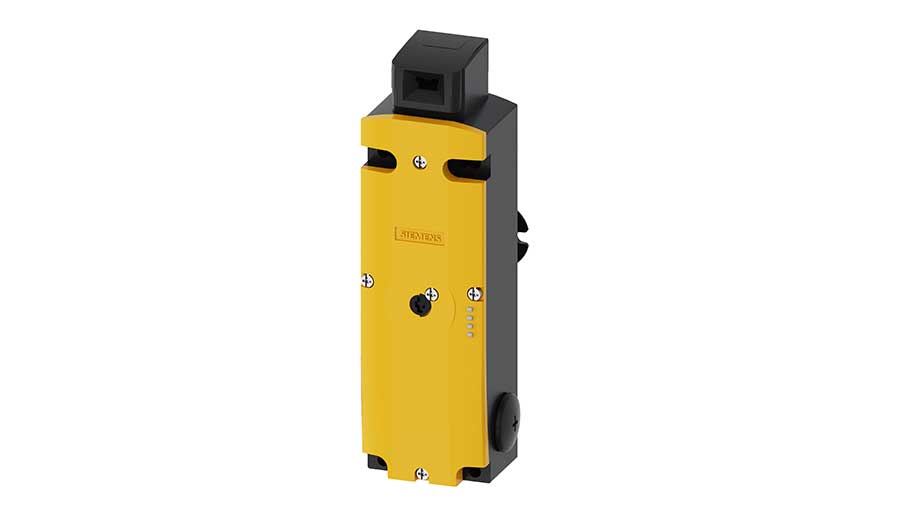

    B-614 Siemens 3SE5 312-1SG11, metal, release 24 VDC, kont 2NC+1NO, 2NC+1NO
    1 1

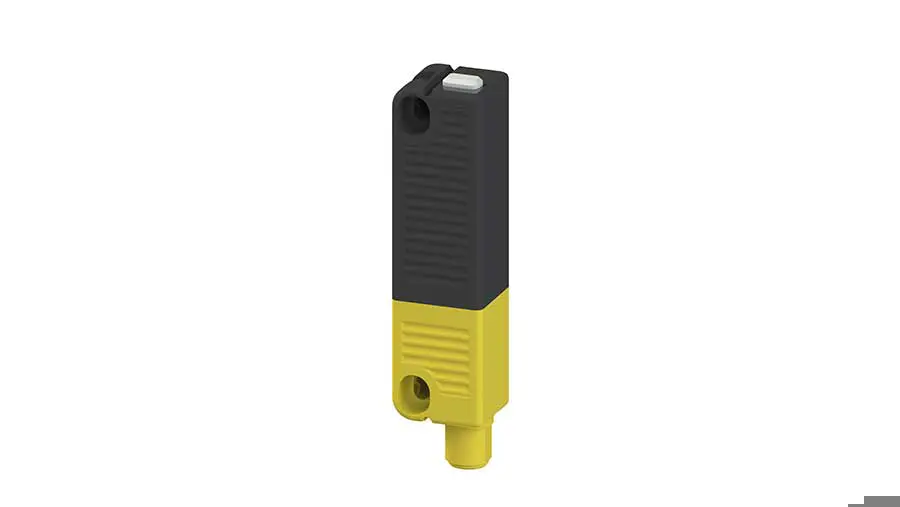

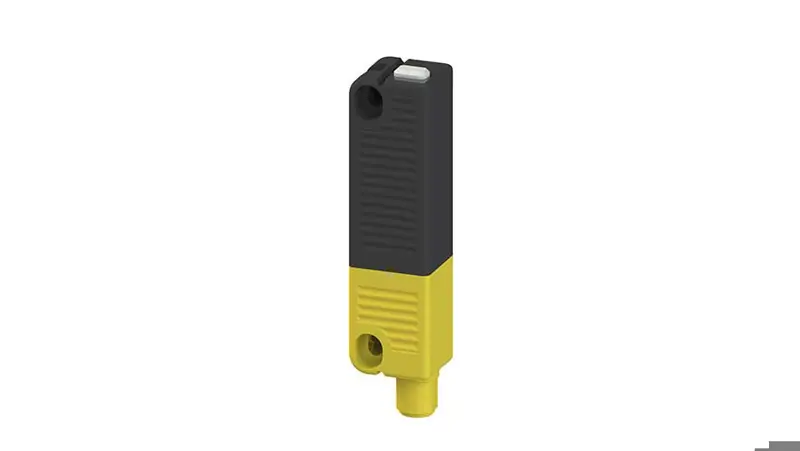

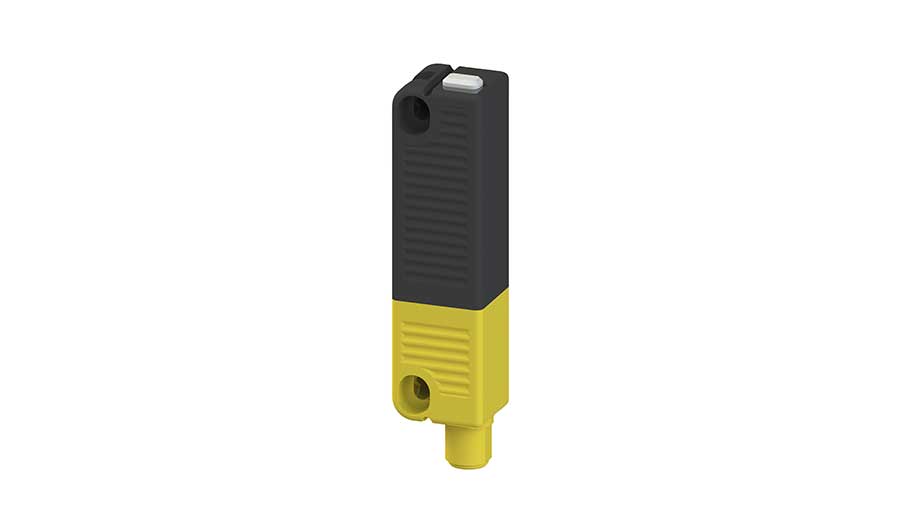

    B-615 Siemens safety switch 3SE6 RFID non-contact, incl actuator, M12 connec
    1

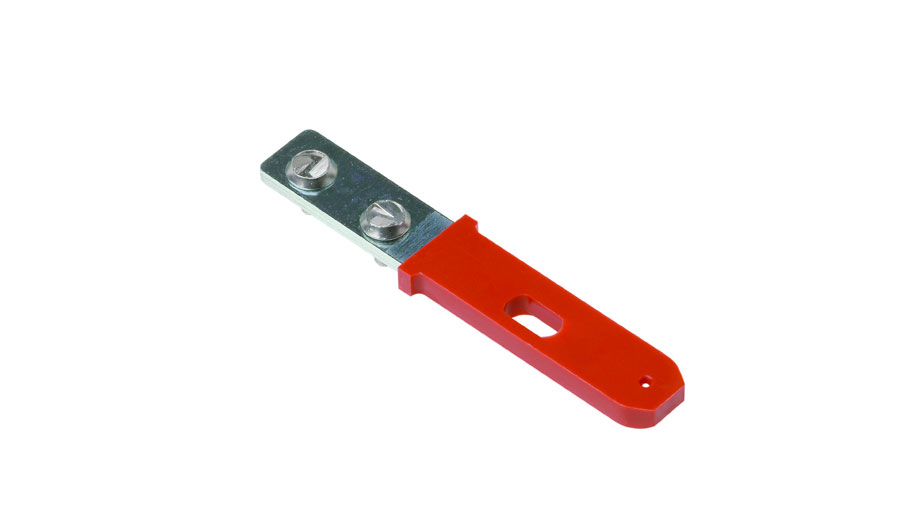

    N-1-01 Euchner 016849, (straight)
    1

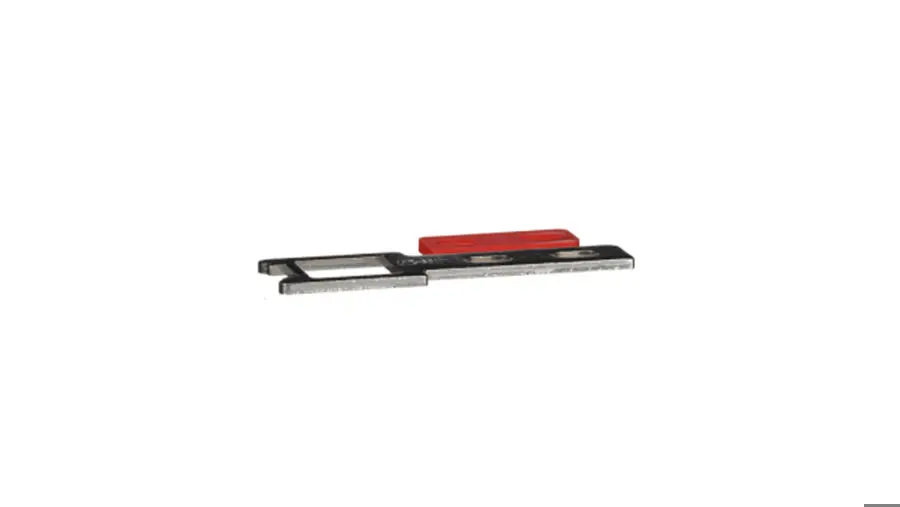

    N-3-01 Telemecanique XCS Z01, wide (straight)
    1

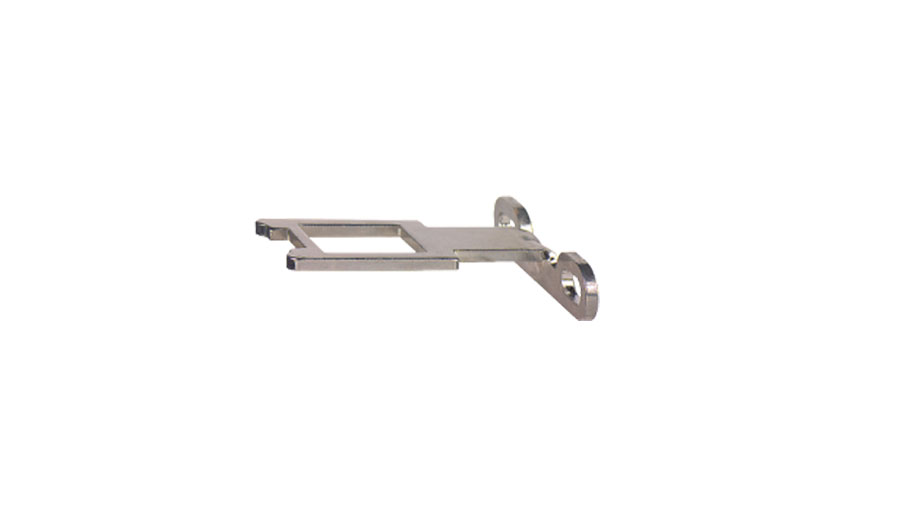

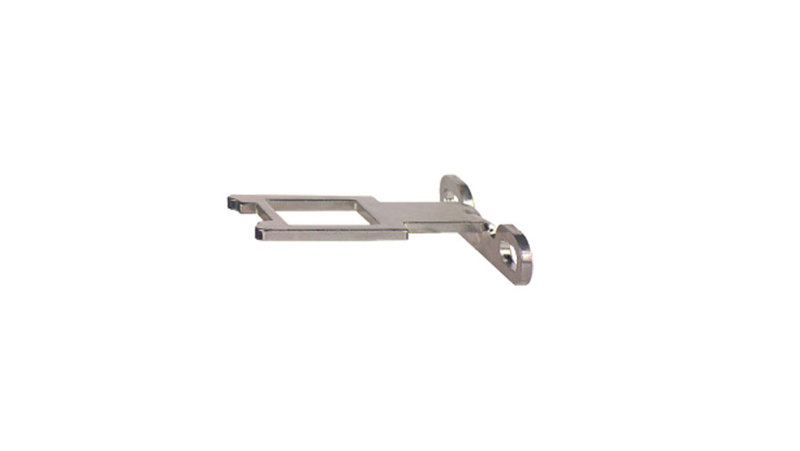

    N-3-02 Telemecanique XCS Z02, wide (angled)
    1

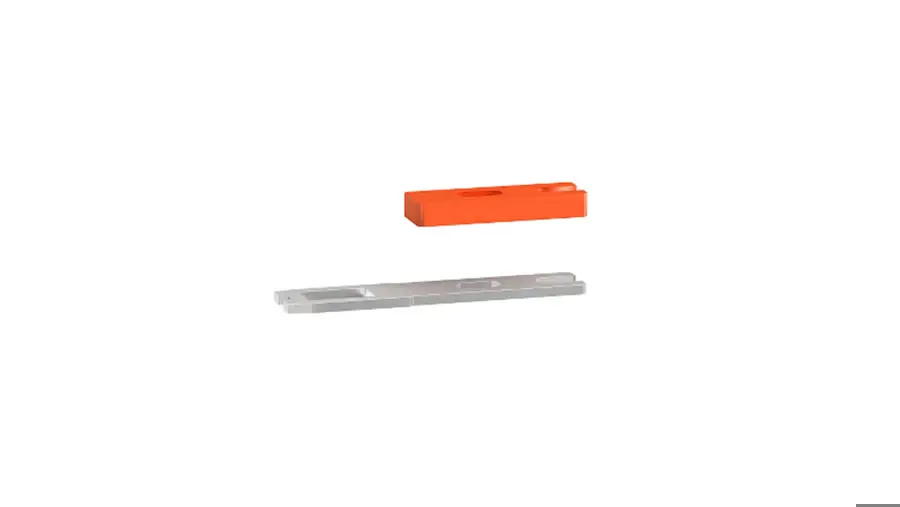

    N-3-03 Telemecanique XCS Z11, slim (straight)
    1

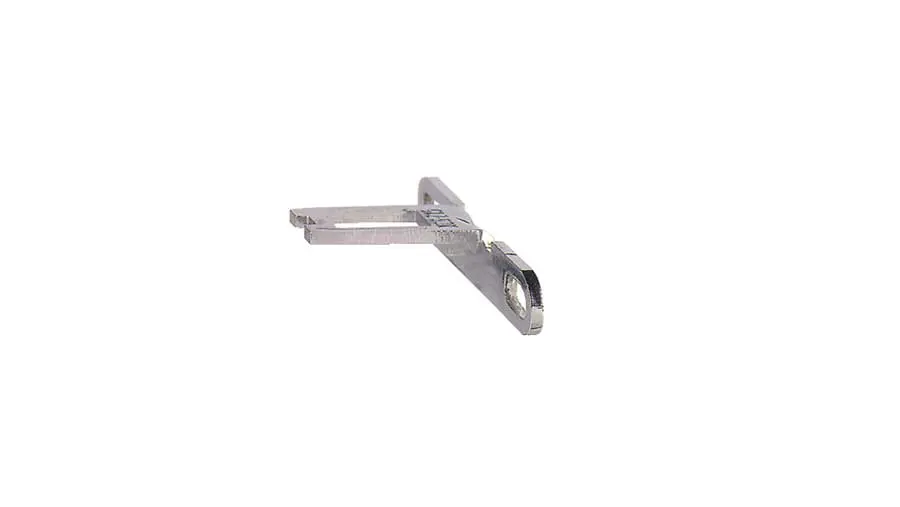

    N-3-04 Telemecanique XCS Z15, slim (angled)
    1
    N-6-03 Siemens 3SX3 207, smal (straight, long)

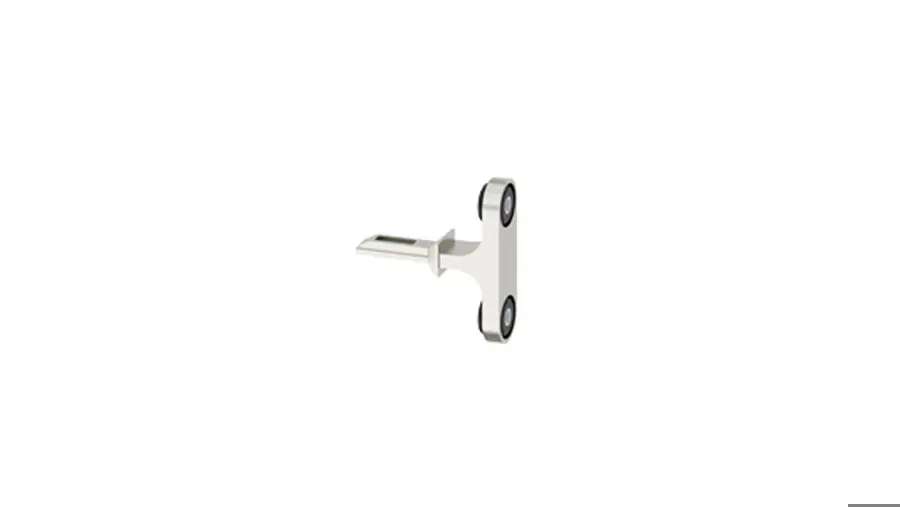

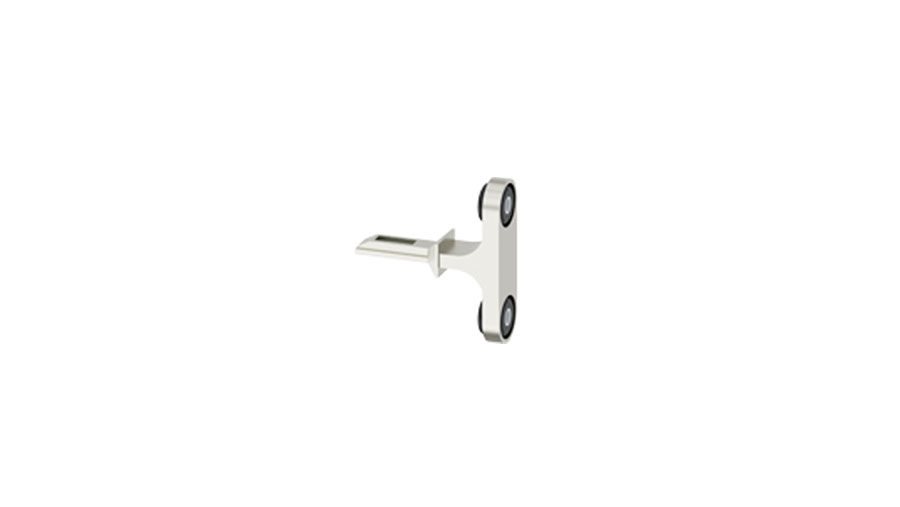

    N-6-12 Siemens 3SE5 000-0AV02, vertical mountig, angled key
    1 1

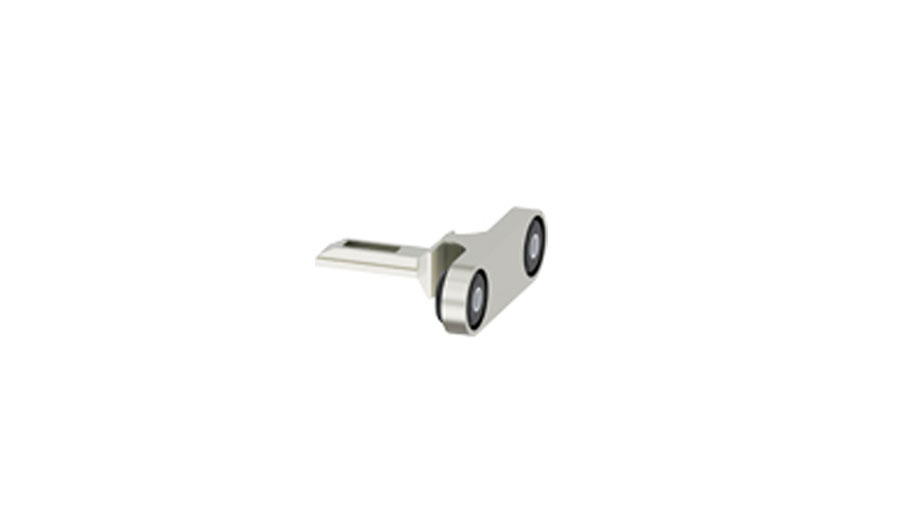

    N-6-13 Siemens 3SE5 000-0AV03, horizont. assemble, angled
    1 1

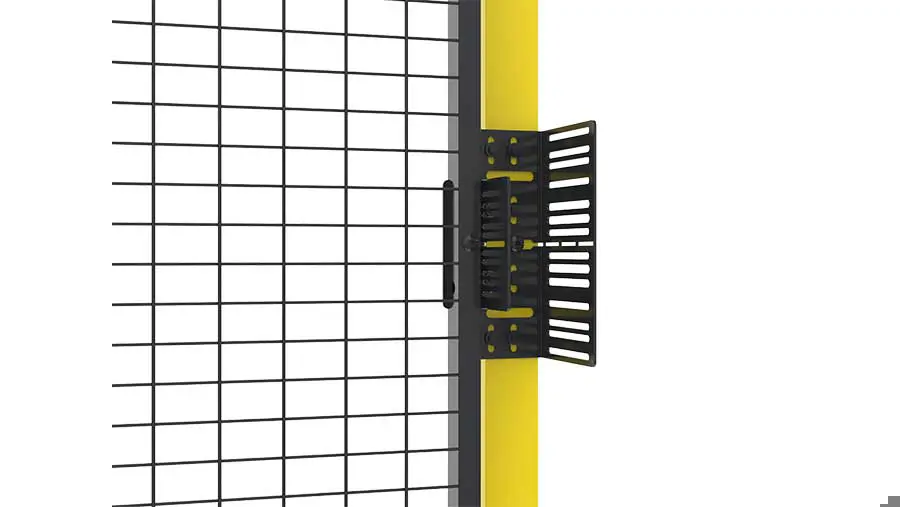

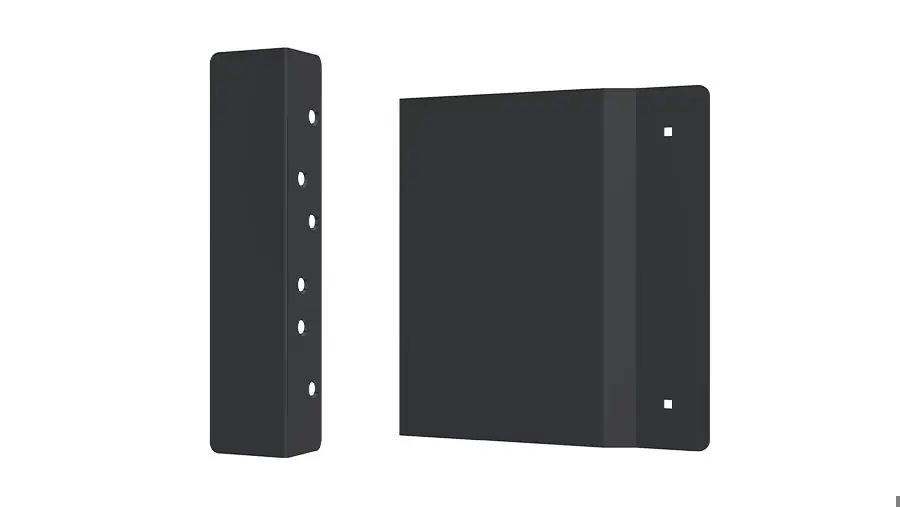

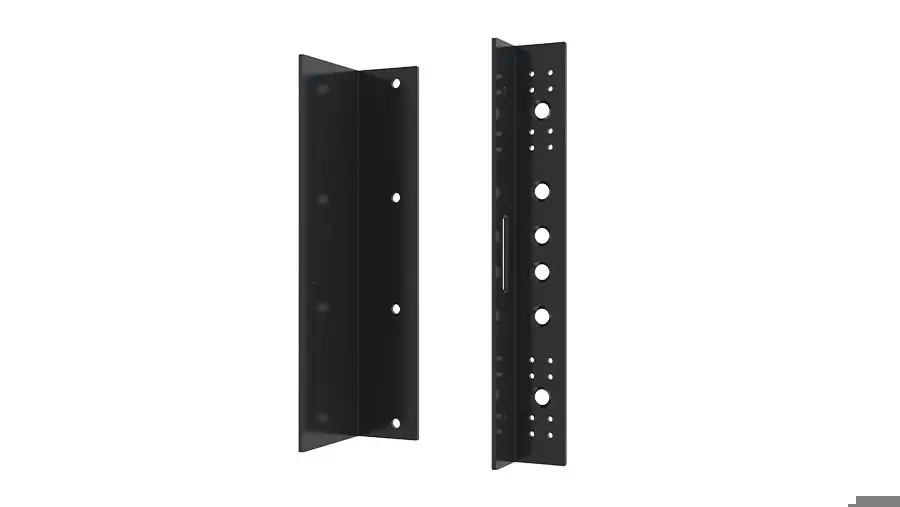

  • Switch fittings

    8 Articles
    CAD Article Description

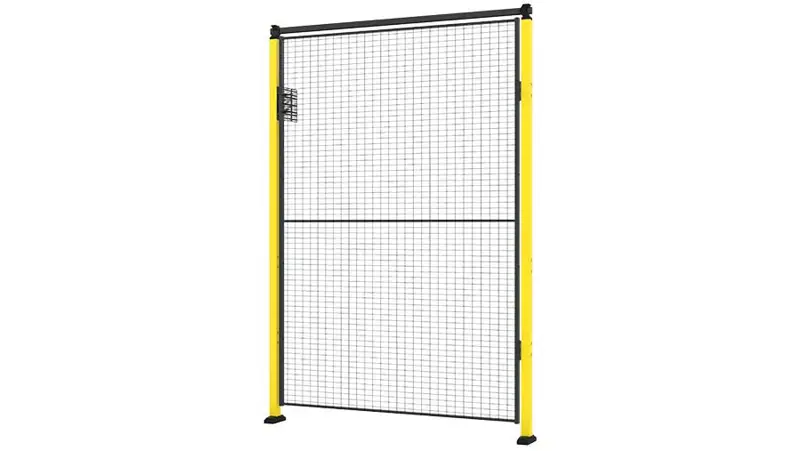

    T10-01 Complete fittings for switch and key, hinge door, right/left
    1
    T10-12 Complete fittings for switch and key, hinge doors, right/left, Euchner
    1

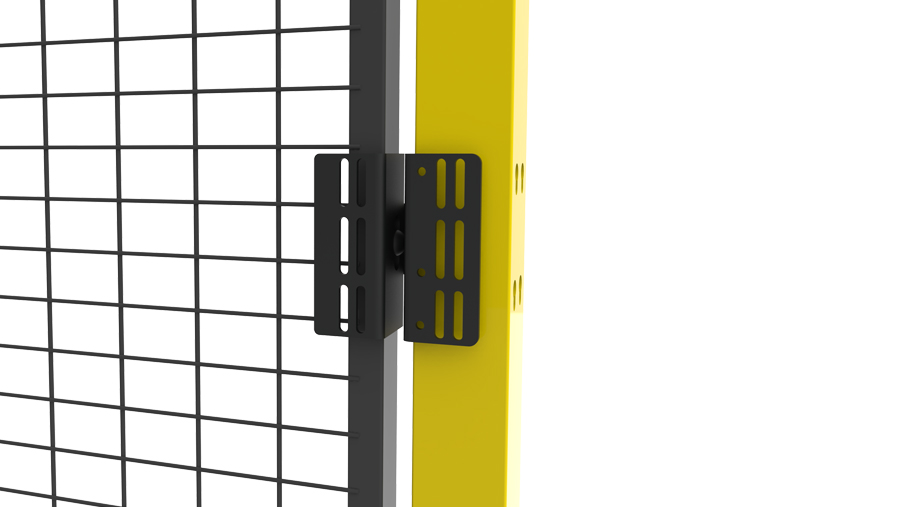

    T10-13 Switch fitting hinge door, universal, non-contact
    1
    T10-32 Fittings, Schmersal AZM200 hingedoor/slidingdoor, right/left
    1
    T10-02 Complete fittings for switch and key, sliding door, right/left
    1
    T10-20 Complete fittings for switch and key, sliding doors, right/left
    1
    T10-23 Switch fitting single sliding door, universal, non-contact
    1
    T10-24 Switch fitting meeting sliding door, universal, non-contact
    1
