Mesh panel Contour

3D

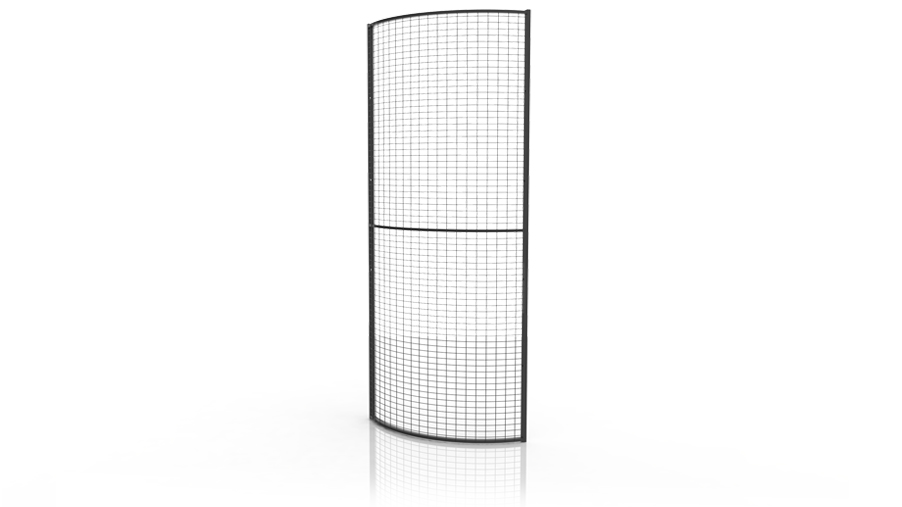

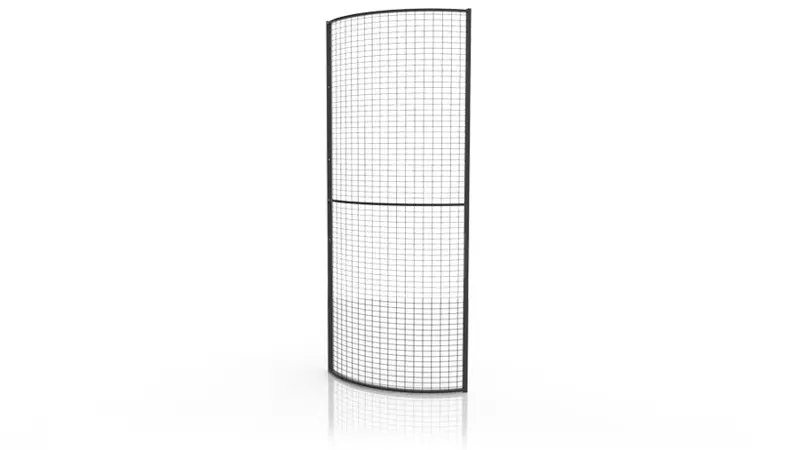

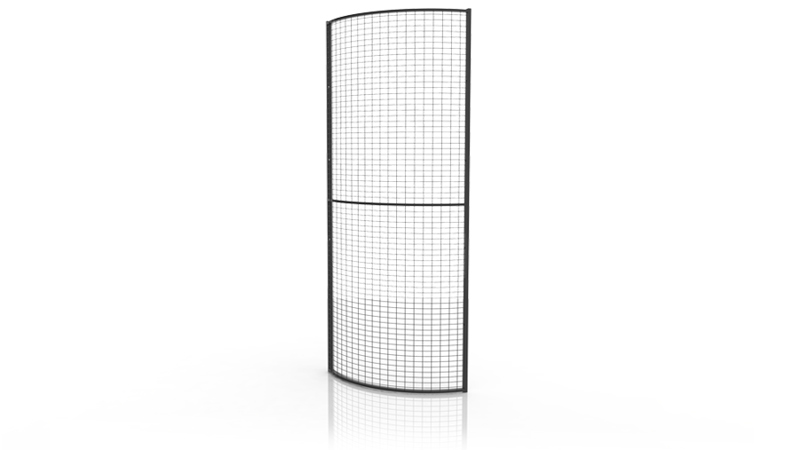

X-Guard mesh panel Contour has rounded corners, making it not only the perfect solution for confined but also sleek in design. These panels come in four heights and 90° angle. The mesh requires a minimum safety distance of 200 mm. All panels have a 30x20 mm frame with factory-fixed brackets to fa...

Read more
Get your quote now

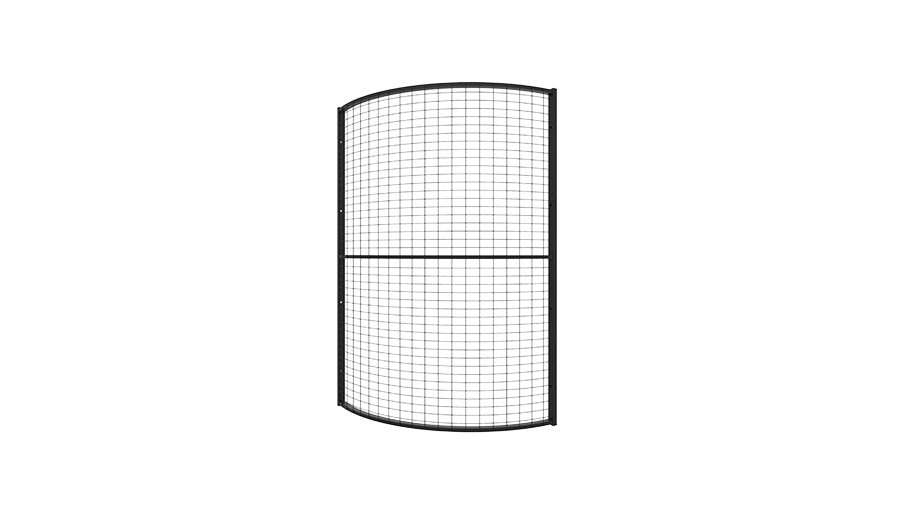

W32R90-130 Mesh panel Contour
W32R90-190 Mesh panel Contour

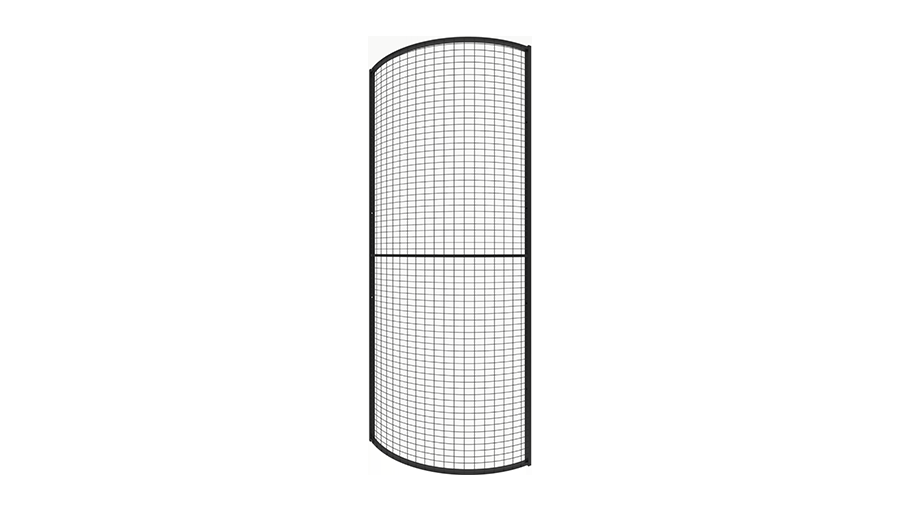

W32R90-220 Mesh panel Contour
W32R90-240 Mesh panel Contour
Select CAD Format
Mesh panel Contour Mesh panel Contour Mesh panel Contour Mesh panel Contour

Models

  • Contour

    4 Articles
    CAD Article Description Height (mm) Mesh Aperture
    		W32R90-130 90° 1300 50x30
    1
    		W32R90-190 90° 1900 50x30
    1
    		W32R90-220 90° 2200 50x30
    1
    		W32R90-240 90° 2400 50x30
    1
    View more View less

Downloads

X-Guard Contour

Assembly instruction

X-Guard Technical

Brochure

Technical Specifications

X-Guard mesh panel Contour has rounded corners, making it not only the perfect solution for confined but also sleek in design. These panels come in four heights and 90° angle. The mesh requires a minimum safety distance of 200 mm. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

View more View less
