X-Rail Fall Protection height 2300 mm

Height 2300 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Get your quote now

Models

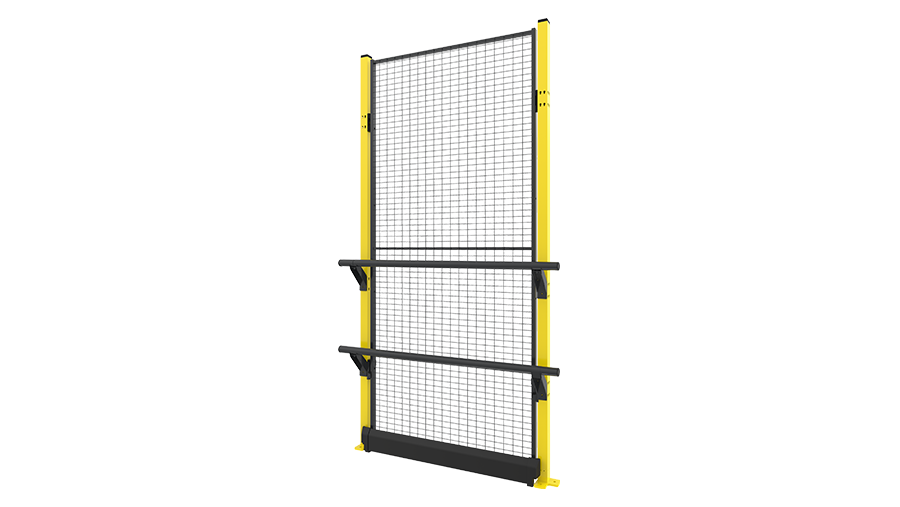

  • Mesh panels

    13 Articles
    CAD Article Width (mm) Height (mm) Color
    W322-220025 250 2200 Graphite Black (RAL 9011)
    W322-220040 400 2200 Graphite Black (RAL 9011)
    W322-220050 500 2200 Graphite Black (RAL 9011)
    W322-220060 600 2200 Graphite Black (RAL 9011)
    W322-220070 700 2200 Graphite Black (RAL 9011)
    W322-220080 800 2200 Graphite Black (RAL 9011)
    W322-220090 900 2200 Graphite Black (RAL 9011)
    W322-220100 1000 2200 Graphite Black (RAL 9011)
    W322-220110 1100 2200 Graphite Black (RAL 9011)
    W322-220120 1200 2200 Graphite Black (RAL 9011)
    W322-220130 1300 2200 Graphite Black (RAL 9011)
    W322-220140 1400 2200 Graphite Black (RAL 9011)
    W322-220150 1500 2200 Graphite Black (RAL 9011)
  • Posts 50x50mm

    1 Articles
    CAD Article Height (mm) Color
    P1170-230 2300 Zinc Yellow (RAL 1018)

Downloads

X-Rail Anchor Bolt

Assembly instruction

List of fastening materials for X-Rail

Product information

Combination option for Counter plate

Product information

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Product information

X-Rail Fall protection

Assembly instruction

Technical Specifications

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

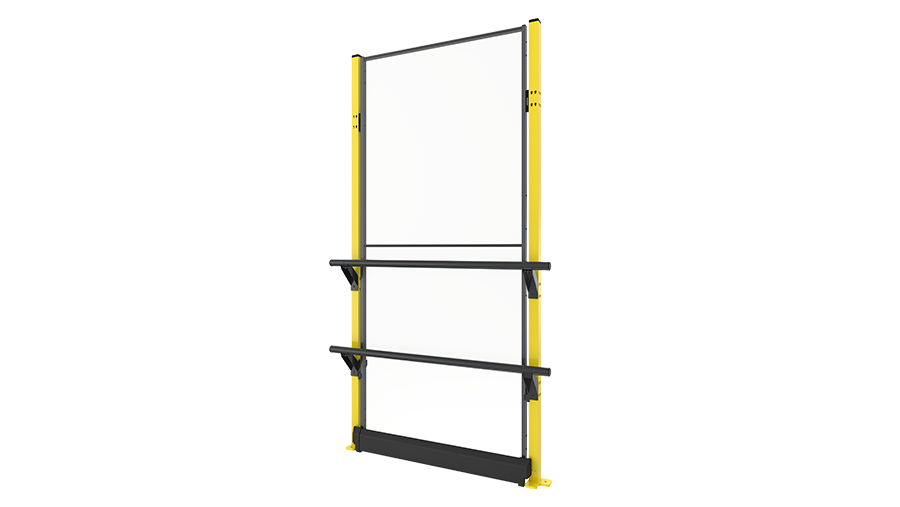

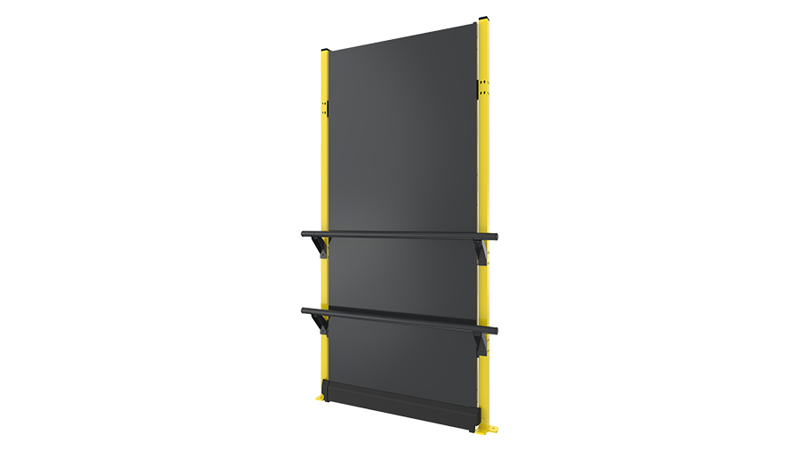

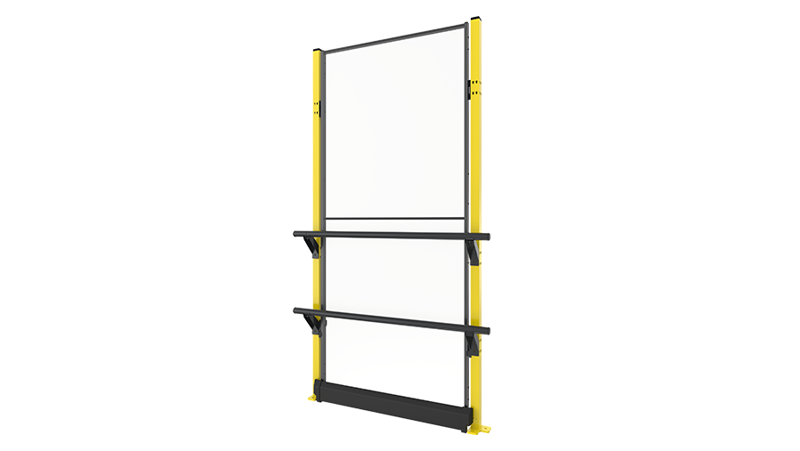

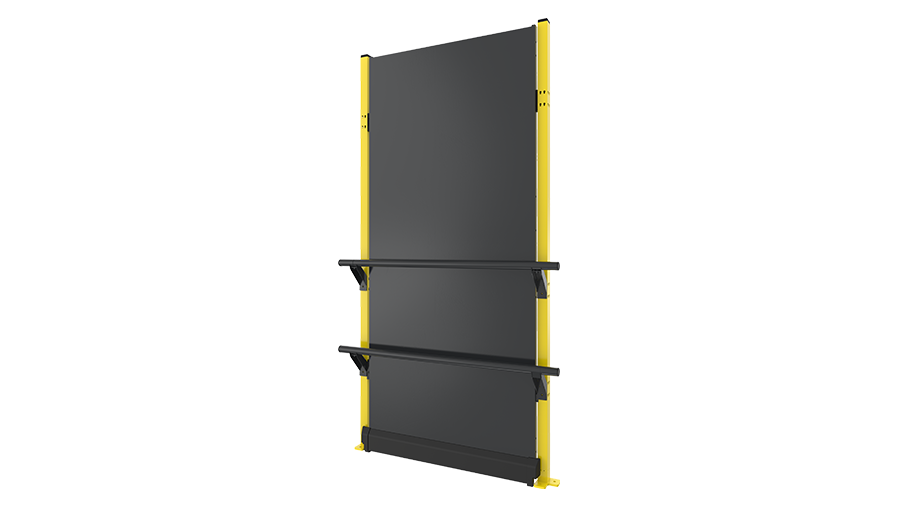

X-Rail 2300 mm can be used either without panels or with X-Guard Classic panels - mesh, plastic, and sheet metal.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
