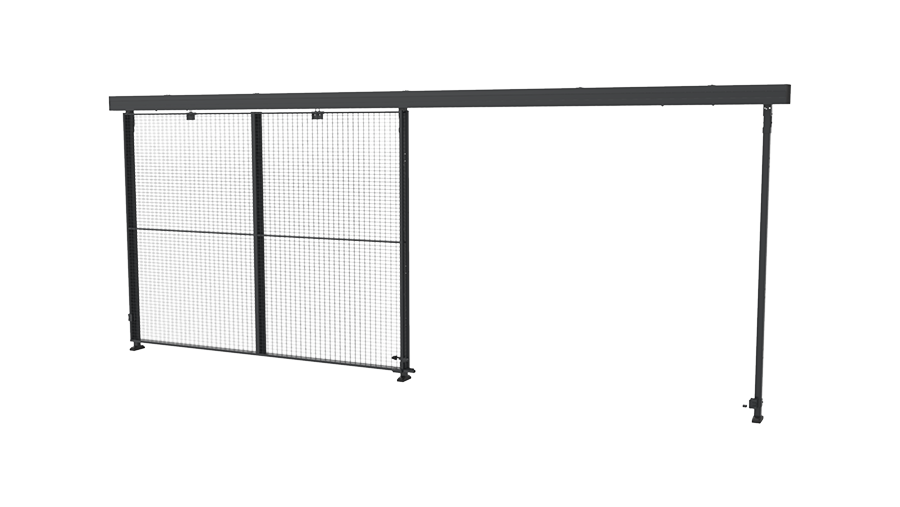

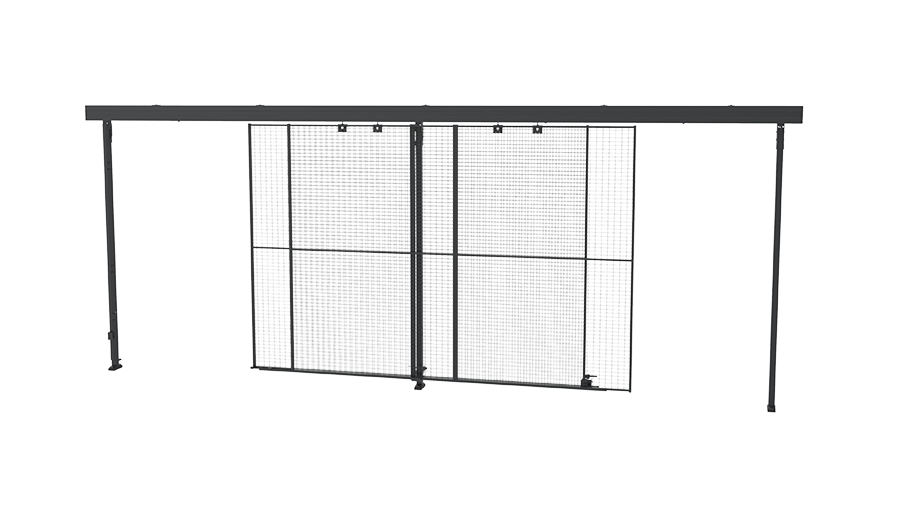

Double sliding door, overlapping

3D

An overlapping sliding door is the perfect solution where space is limited. The sliding door can also be used when there are two output points from one machine. (Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

Get your quote now
D24-230290 Double sliding door, overlapping
D24-230290 Double sliding door, overlapping
Select CAD Format
Double sliding door, overlapping Double sliding door, overlapping Double sliding door, overlapping

Models

CAD Article Description Max Width (mm) Height (mm) Panel Fits Posts
D24-230140 1340 2300 Mesh
Plastic
Sheet metal 		Classic 50x50
1
D24-230290
2 1
D44-230140 1340 2300 Mesh
Plastic
Sheet metal 		Premium 70x70
1
D44-230290
1
DP24-230290 Double sliding doors with upper frame - overlap 2300 Plastic
Sheet metal 		Classic 50x50
1
DP44-230290 Double sliding doors with upper frame - overlap 2840 2300 Plastic
Sheet metal 		Premium 70x70
1
View more View less
