Single sliding door

3D

A single sliding door is usually used where there is not enough space to open a side-hinged door for normal access and where just a single section is required opened. (Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

Get your quote now

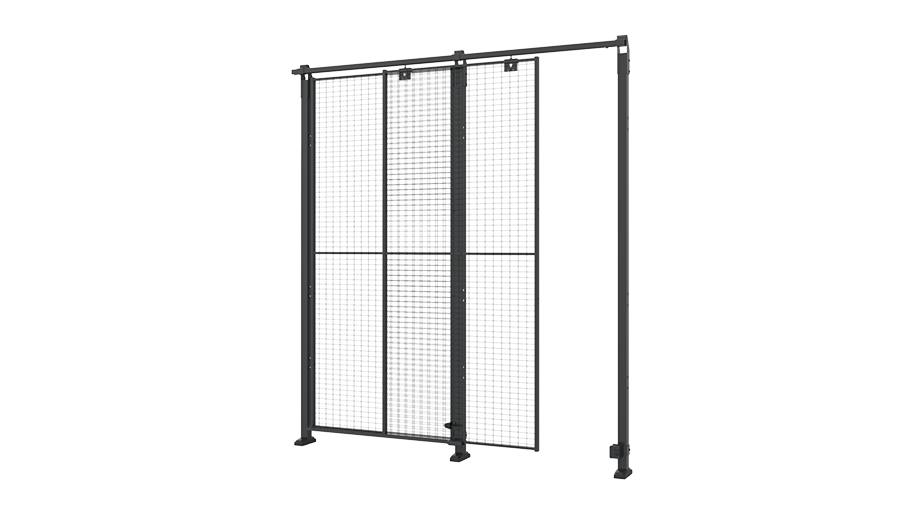

D20-XXX100 Single sliding door
Select CAD Format

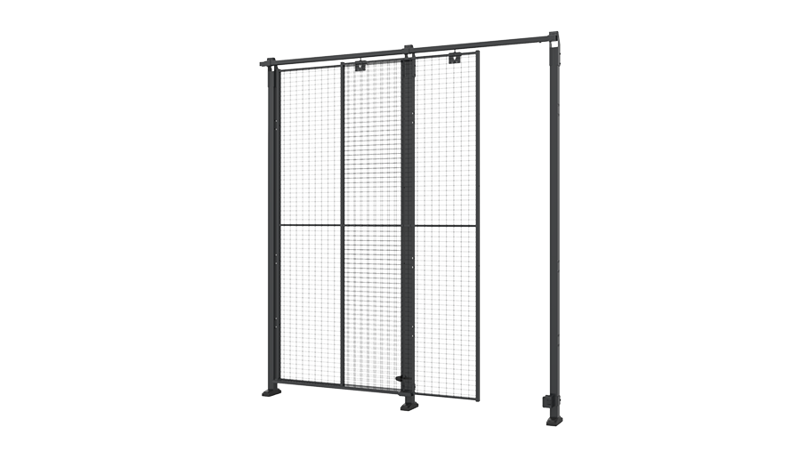

Single sliding door Single sliding door

Models

CAD Article Description Width (mm) Max Width (mm) Height (mm) Max Height (mm) Panel Fits Posts
D20-XXX100 900 2500 Mesh Classic 50x50
1 1
D20-XXX140 3000 2300 Mesh Classic 50x50
1
D20-XXX220 2100 2500 Mesh Classic 50x50
1
D20-XXX310 3000 2500 Mesh Classic 50x50
1
D20-XXX570 5700 2755 Mesh Classic 50x50
1
DP20-XXX220A Single sliding door with upper frame 2080 2500 Plastic
Sheet metal 		Classic 50x50
1
DP20-XXX310A Single sliding door with upper frame 2980 2500 Plastic
Sheet metal 		Classic 50x50
1
DP20-XXX570A Single sliding door with upper frame 5880 2500 Plastic
Sheet metal 		Classic 50x50
1
DP40-XXX220A Single sliding door with upper frame 2090 2500 Plastic
Sheet metal 		Premium 70x70
1
DP40-XXX310A Single sliding door with upper frame 2990 2500 Plastic
Sheet metal 		Premium 70x70
1
DP40-XXX570A Single sliding door with upper frame 5890 2500 Plastic
Sheet metal 		Premium 70x70
1
View more View less

Downloads

X-Store 2.0 | Warehouse

Brochure

X-Store 2.0 | Warehouse

Assembly instruction
