Panels

Mesh panels

3D

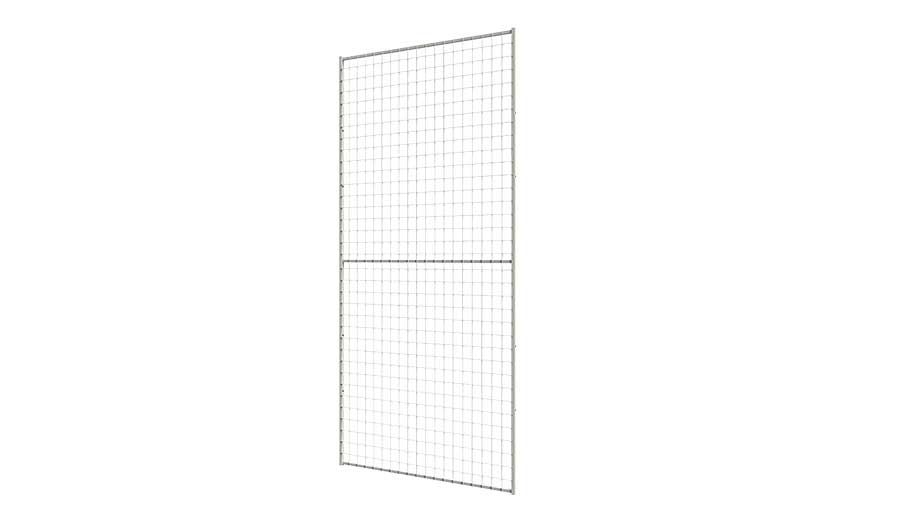

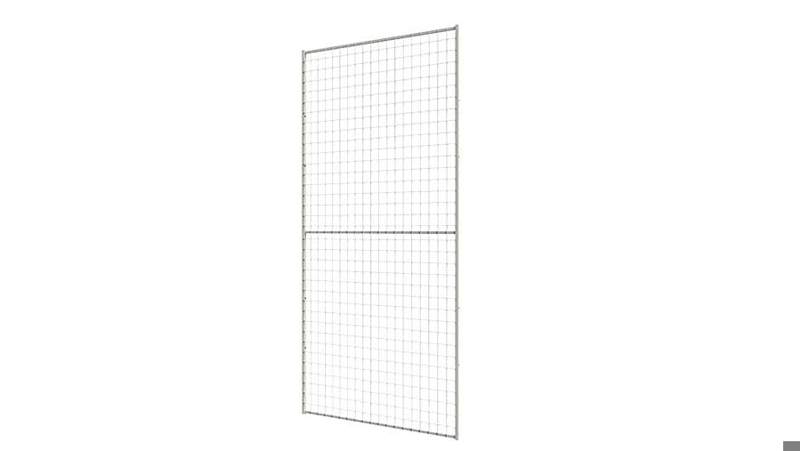

The panels are available in three heights and in six widths. Using feet, posts and extenders you can tailor your industry or storage panels to suit your needs.  The standard panel colour is RAL 9018 (papyrus white). We can also supply panels after customers requirements.

Get your quote now

Country

Models

  • Height 750 mm

    6 Articles
    CAD Article Height (mm) Width (mm) Mesh Aperture
    413-075025 750 250 50x60
    413-075040 750 400 50x60
    413-075070 750 700 50x60
    413-075100 750 1000 50x60
    413-075120 750 1200 50x60
    413-075150 750 1500 50x60
  • Height 1100 mm

    6 Articles
    CAD Article Height (mm) Width (mm) Mesh Aperture
    413-110025 1100 250 50x60
    413-110040 1100 400 50x60
    413-110070 1100 700 50x60
    413-110100 1100 1000 50x60
    413-110120 1100 1200 50x60
    413-110150 1100 1500 50x60
  • Height 2200 mm

    6 Articles
    CAD Article Height (mm) Width (mm) Mesh Aperture
    413-220025 2200 250 50x60
    413-220040 2200 400 50x60
    413-220070 2200 700 50x60
    413-220100 2200 1000 50x60
    413-220120 2200 1200 50x60
    413-220150 2200 1500 50x60

Downloads

X-Store 2.0 Panel combinations Video

Assembly guide

X-Store 2.0

Brochure

X-Store 2.0

Assembly guide

Technical Specifications

The panels are available in three heights and in six widths. Using feet, posts and extenders you can tailor your industry or storage panels to suit your needs.


The standard panel colour is RAL 9018 (papyrus white). We can also supply panels after customers requirements.



Vertical tubing 19x19
Horizontal tubing 15x15
Posts 50x50, 70x70 or floor fitting
Vertical wires Ø 3 mm
Horizontal wires Ø 2,5 mm
Mesh aperture 50x60 mm
Finish Phosphate/Epoxy paint
Colour, mesh panels Papyrus white, RAL 9018
Colour, post Graphite black, RAL 9011
  (Other colours can be quoted)
