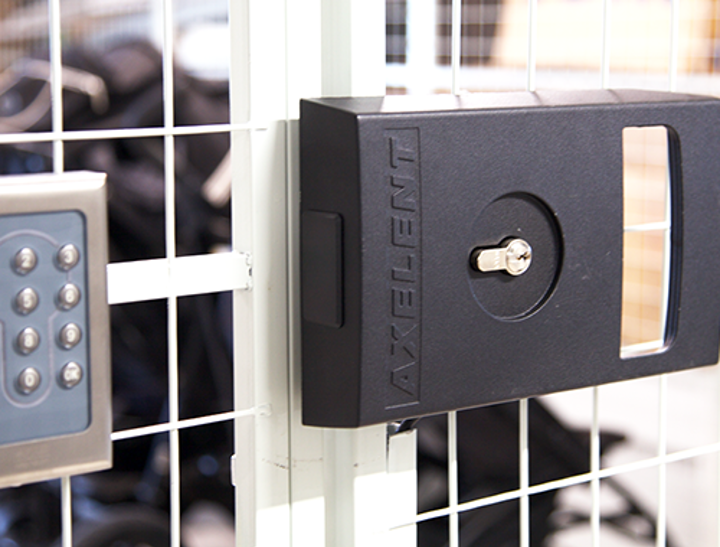

Our electric cylinder lock is patented and has a unique locking function

Our cylinder lock is patented and available in several versions. The lock is robust with a metal cover to withstand tough conditions and is tested and approved to EN 12209:2016. The lock is designed for our modular mesh panel systems for industry and warehouses but the lock can also be used for similar third-party products/systems on the market. Assembly is easy; it is available for both hinge- and sliding doors in right and left versions. 



Why should you choose an electrical cylinder lock from Axelent

This lock can be used in various places within warehouse and production environments, preferable in relation to already installed access systems. In case of power failure the lock has an escape release function on the inside.



Good to know about the lock:

  • Light to indicate open or locked
  • Cylinder lock with mechanical key that overrides the electronic function (just add a standard profile cylinder such as Euro)
  • Compatible with most electric access lock systems such as RFID, card readers, Pin code units etc.
  • Storage temperature: -25 to +70 °C according to IEC 60068-2-14
  • Operating temperature: -10 to +70 °C according to IEC 60068-2-14
  • Housing IP rating: IP41
  • Supply voltage: 12-24 VDC +/-10 % (regulated)
  • Available in several versions
  • Robust design
  • Unique locking function
  • Patented product
  • Flexible, fits both hinge and sliding doors
  • Ordered in right or left execution
  • Simple assembly
  • Certified product
  • Tested and approved to EN 12209:2016
  • Possibility to prevent unintended closing during service and maintenance by use of a padlock
  • Additional bail handle for use from inside is optionally available
  • Supplied in a specially designed box

Read more about the different versions of our X-It lock here or our total offering when it comes to locks.
