Triple sliding door with 3-step rail

3D

A triple telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Read more
Get your quote now

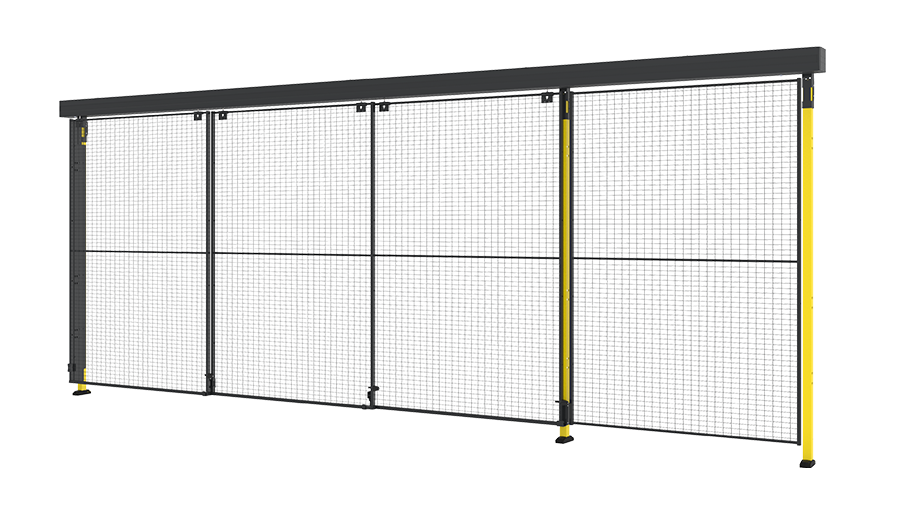

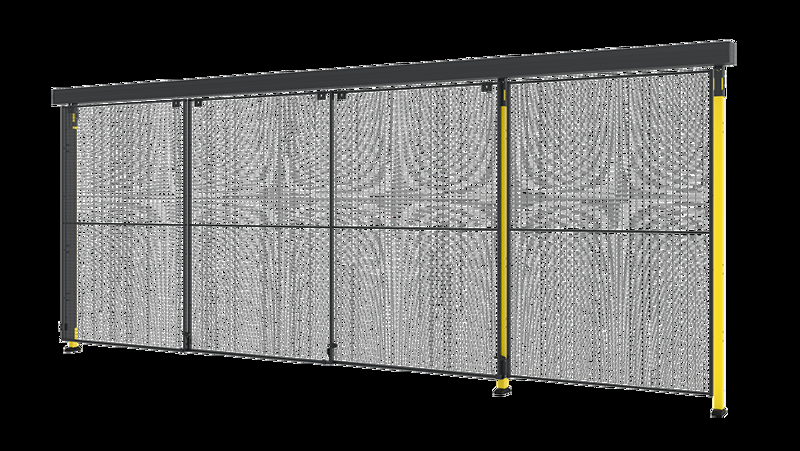

machine guarding triple sliding door with mesh panels

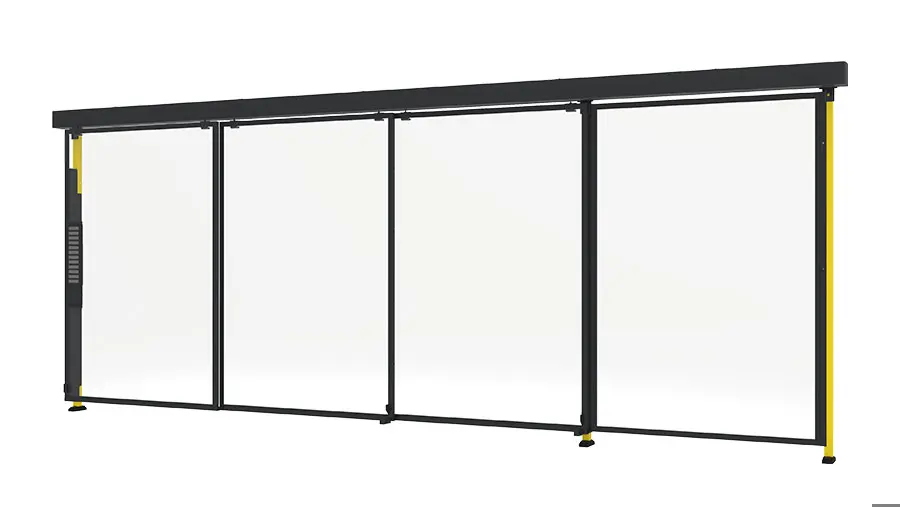

axelent triple sliding door with plastic panels
axelent mounting instructions rail fitting kit aluminium
Installing movie of Axelent 3-Step sliding door
Select CAD Format
machine guarding triple sliding door with mesh panels axelent triple sliding door with plastic panels axelent mounting instructions rail fitting kit aluminium Installing movie of Axelent 3-Step sliding door

Models

  • Height 2000 mm

    4 Articles
    CAD Article Description Width (mm) Height (mm) Panel Fits Posts
    		D23-200450R Triple sliding door with 3-step rail 4500 2000 Mesh Classic 50x50
    2
    		D23-200450L Triple sliding door with 3-step rail 4500 2000 Mesh Classic 50x50
    2
    		D43-200450R Triple sliding door with 3-step rail 4500 2000 Mesh Premium 70x70
    2
    		D43-200450L Triple sliding door with 3-step rail 4500 2000 Mesh Premium 70x70
    2
    View more View less

  • Height 2300 mm

    4 Articles
    CAD Article Description Max Width (mm) Height (mm) Panel Fits Posts
    		D23-230450R Triple sliding door with 3-step rail 4380 2300 Mesh
    Plastic
    Sheet metal     		Classic 50x50
    3 2
    		D23-230450L Triple sliding door with 3-step rail 4380 2300 Mesh
    Plastic
    Sheet metal     		Classic 50x50
    4 2
    		D43-230450R Triple sliding door with 3-step rail 4380 2300 Mesh Premium 70x70
    2 2
    		D43-230450L Triple sliding door with 3-step rail 4380 2300 Mesh
    Plastic
    Sheet metal     		Premium 70x70
    2 2
    View more View less

  • Height 2500 mm

    4 Articles
    CAD Article Description Width (mm) Height (mm) Panel Fits Posts
    		D23-250450L Triple sliding door with 3-step rail 4500 2500 Mesh Classic 50x50
    2
    		D23-250450R Triple sliding door with 3-step rail 4500 2500 Mesh Classic 50x50
    2
    		D43-250450L Triple sliding door with 3-step rail 4500 2500 Mesh Premium 70x70
    2
    		D43-250450R Triple sliding door with 3-step rail 4500 2500 Mesh Premium 70x70
    2
    View more View less

Downloads

X-Guard Technical

Brochure

Technical Specifications

A triple telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Maximum height is 2500 mm and maximum width is 3x1500 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

View more View less
