Panels

Mesh panel Lite

3D

X-Guard Lite is a thinner and lighter version of the standard X-Guard system. The panel is available in three heights and are available in 13 different widths.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height 1300 mm

    13 Articles
    CAD Article Width (mm) Height (mm) Mesh Aperture Color
    W312-130025 250 1300 50x30 Graphite Black (RAL 9011)
    1
    W312-130040 400 1300 50x30 Graphite Black (RAL 9011)
    W312-130050 500 1300 50x30 Graphite Black (RAL 9011)
    W312-130060 600 1300 50x30 Graphite Black (RAL 9011)
    W312-130070 700 1300 50x30 Graphite Black (RAL 9011)
    1
    W312-130080 800 1300 50x30 Graphite Black (RAL 9011)
    W312-130090 900 1300 50x30 Graphite Black (RAL 9011)
    W312-130100 1000 1300 50x30 Graphite Black (RAL 9011)
    W312-130110 1100 1300 50x30 Graphite Black (RAL 9011)
    1
    W312-130120 1200 1300 50x30 Graphite Black (RAL 9011)
    W312-130130 1300 1300 50x30 Graphite Black (RAL 9011)
    W312-130140 1400 1300 50x30 Graphite Black (RAL 9011)
    W312-130150 1500 1300 50x30 Graphite Black (RAL 9011)
    1
  • Height 1900 mm

    13 Articles
    CAD Article Width (mm) Height (mm) Mesh Aperture Color
    W312-190025 250 1900 50x30 Graphite Black (RAL 9011)
    1
    W312-190040 400 1900 50x30 Graphite Black (RAL 9011)
    W312-190050 500 1900 50x30 Graphite Black (RAL 9011)
    W312-190060 600 1900 50x30 Graphite Black (RAL 9011)
    W312-190070 700 1900 50x30 Graphite Black (RAL 9011)
    1
    W312-190080 800 1900 50x30 Graphite Black (RAL 9011)
    W312-190090 900 1900 50x30 Graphite Black (RAL 9011)
    2
    W312-190100 1000 1900 50x30 Graphite Black (RAL 9011)
    W312-190110 1100 1900 50x30 Graphite Black (RAL 9011)
    W312-190120 1200 1900 50x30 Graphite Black (RAL 9011)
    1
    W312-190130 1300 1900 50x30 Graphite Black (RAL 9011)
    W312-190140 1400 1900 50x30 Graphite Black (RAL 9011)
    W312-190150 1500 1900 50x30 Graphite Black (RAL 9011)
    1
  • Height 2200 mm

    13 Articles
    CAD Article Width (mm) Height (mm) Mesh Aperture Color
    W312-220025 250 2200 50x30 Graphite Black (RAL 9011)
    W312-220040 400 2200 50x30 Graphite Black (RAL 9011)
    W312-220050 500 2200 50x30 Graphite Black (RAL 9011)
    W312-220060 600 2200 50x30 Graphite Black (RAL 9011)
    W312-220070 700 2200 50x30 Graphite Black (RAL 9011)
    1
    W312-220080 800 2200 50x30 Graphite Black (RAL 9011)
    W312-220090 900 2200 50x30 Graphite Black (RAL 9011)

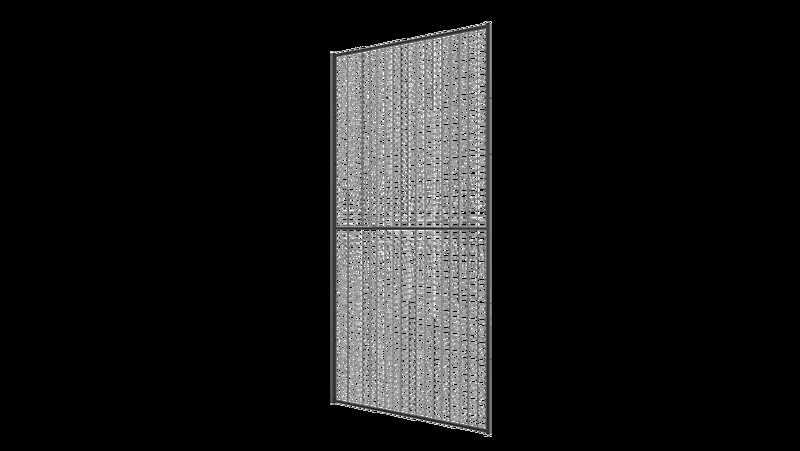

    W312-220100 1000 2200 50x30 Graphite Black (RAL 9011)
    1
    W312-220110 1100 2200 50x30 Graphite Black (RAL 9011)
    W312-220120 1200 2200 50x30 Graphite Black (RAL 9011)
    W312-220130 1300 2200 50x30 Graphite Black (RAL 9011)
    1
    W312-220140 1400 2200 50x30 Graphite Black (RAL 9011)
    W312-220150 1500 2200 50x30 Graphite Black (RAL 9011)

Downloads

X-Guard Technical

Brochure

X-Guard Lite

Assembly instruction

Product information

X-Guard Lite is a thinner and lighter version of the standard X-Guard system.

The panel is available in three heights and are available in 13 different widths.

The size of mesh is cc 50x30 mm. The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm. The recommended safety distance is 200 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

See the product in Axelent Xperience
