X-Protect

Standalone Floor Barrier

3D

Designed to serve as a standalone solution, it improves the safeguarding of building perimeters and vital infrastructure from the everyday risks of vehicle forks, pallets in transit, AMRs and AGVs, and other low-height hazards. It can be combined with our other impact protection products such as...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Description Height (mm) Length (mm) CC (mm) Color
FCE3-022-I100-10 Floor barrier end - 10 pack 221 Graphite Black (RAL 9011)
FCE3-022-I100-2 Floor barrier end - 2 pack 221 Graphite Black (RAL 9011)

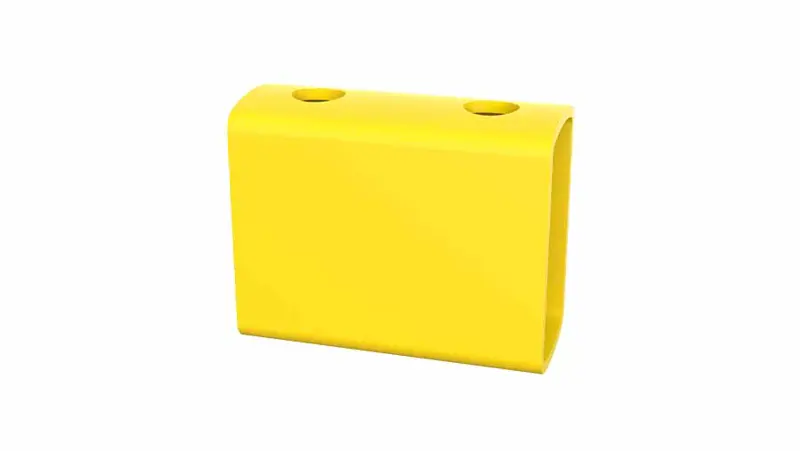

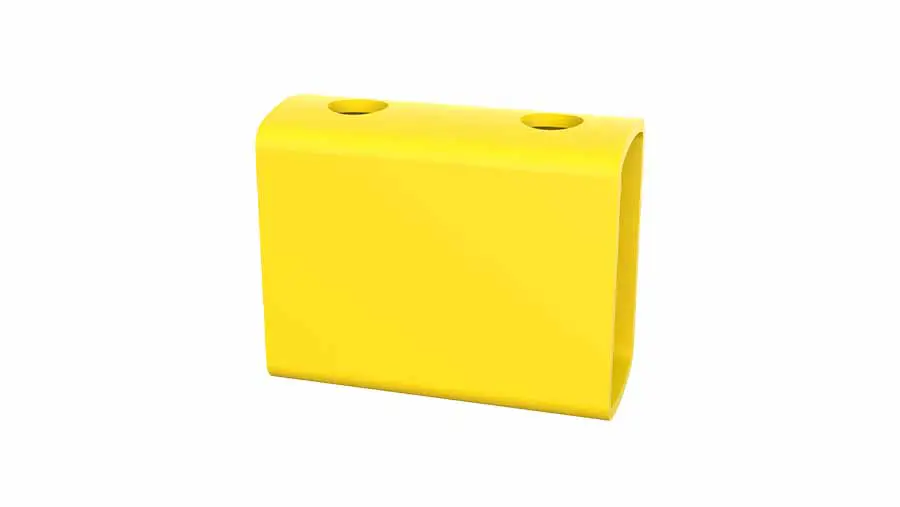

RCI1-027-0050 Impact rail 270 500 Zinc Yellow (RAL 1018)

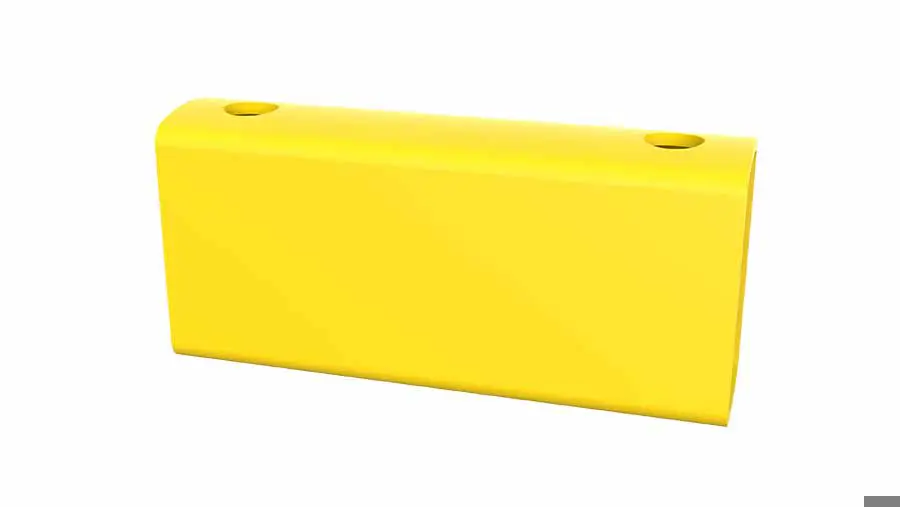

RCI1-047-0070 Impact rail 470 700 Zinc Yellow (RAL 1018)

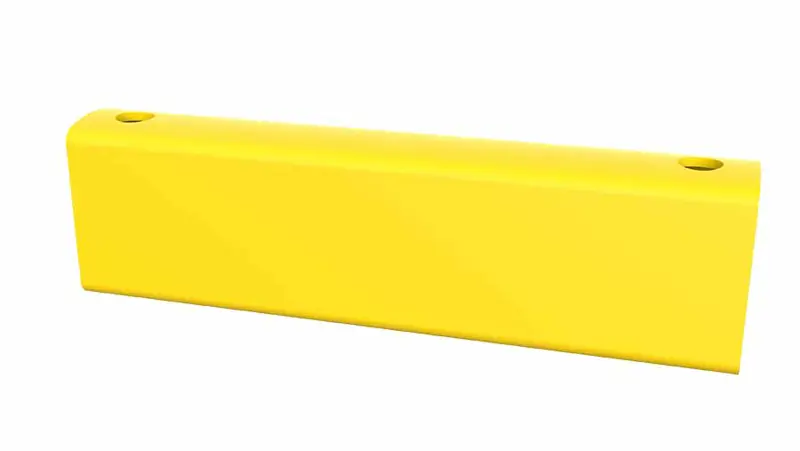

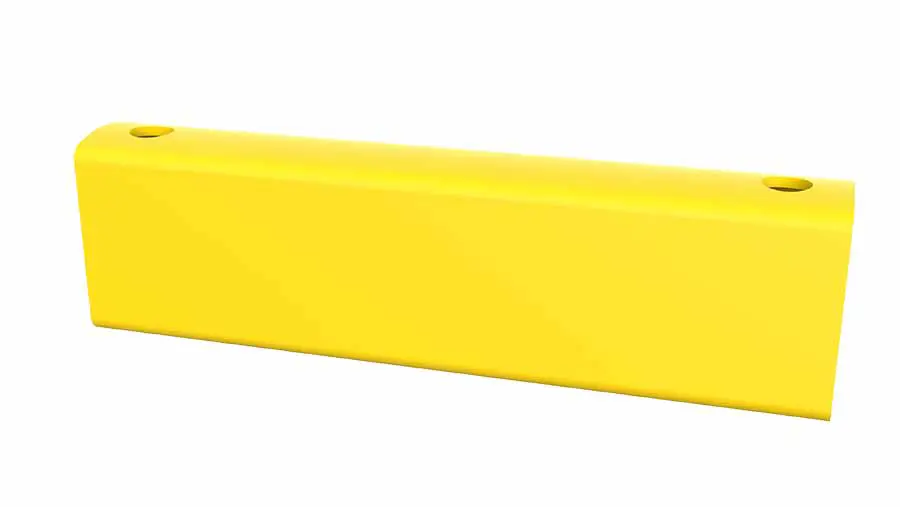

RCI1-077-0100 Impact rail 770 1000 Zinc Yellow (RAL 1018)

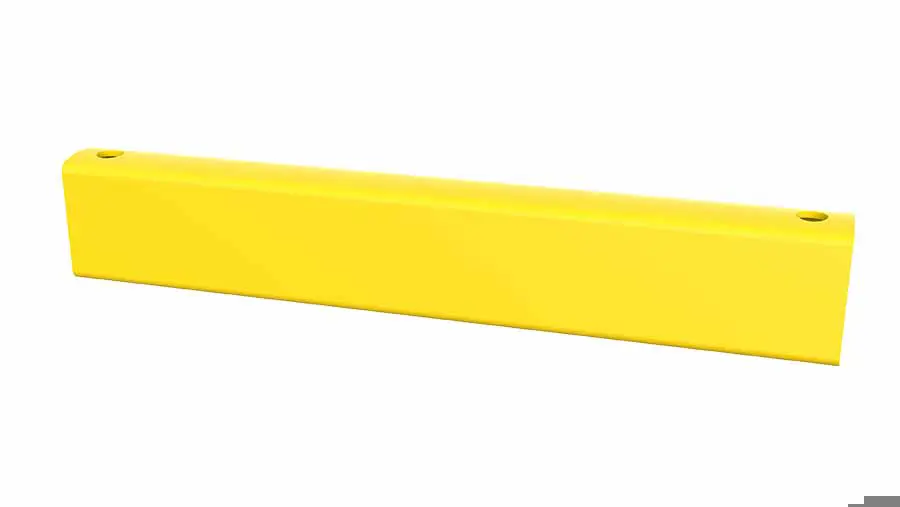

RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow (RAL 1018)

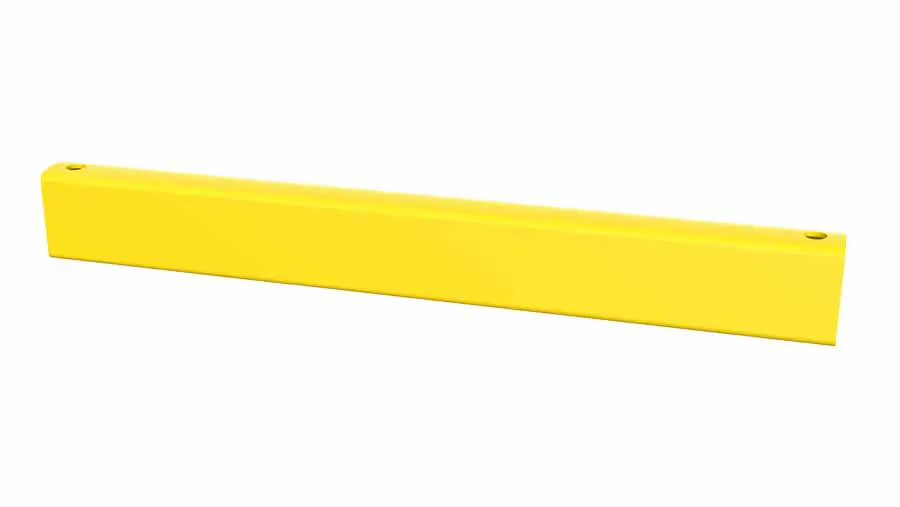

RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow (RAL 1018)

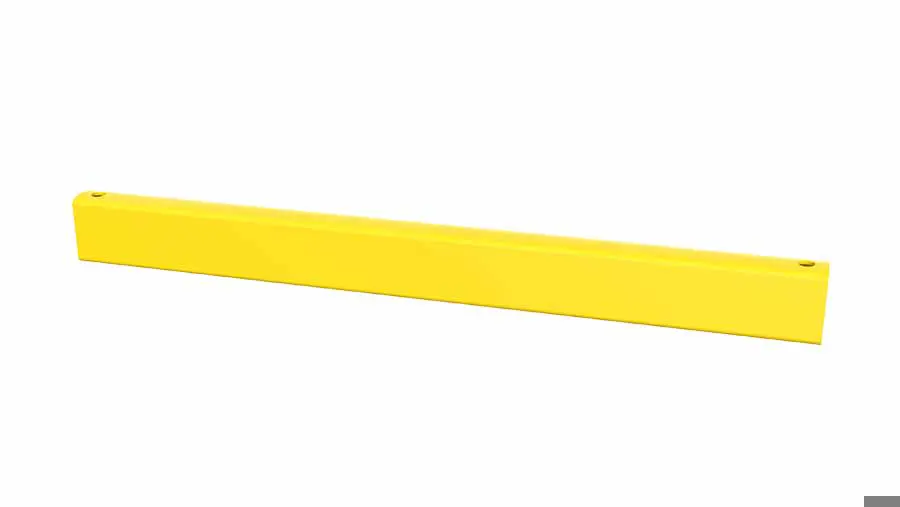

RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow (RAL 1018)

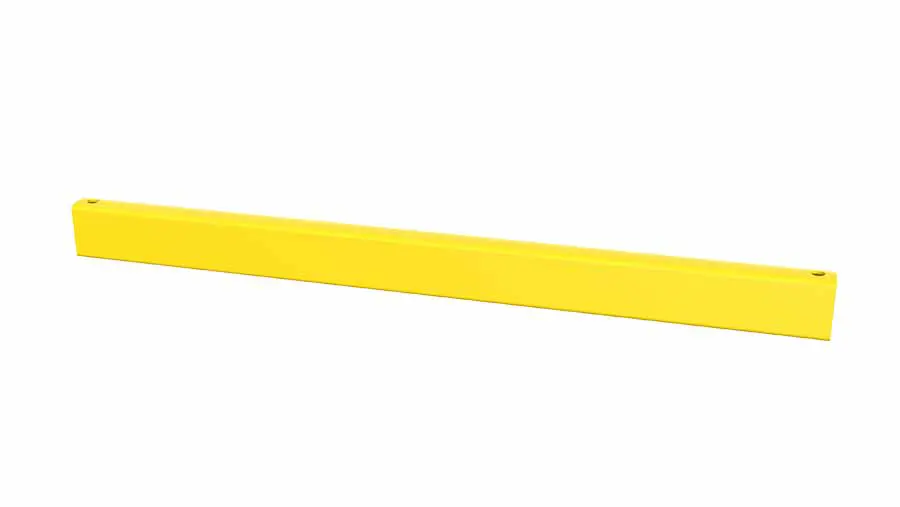

RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow (RAL 1018)
RCI1-064-0087 Impact rail 640 870 Zinc Yellow (RAL 1018)
RCI1-067-0090 Impact rail 670 900 Zinc Yellow (RAL 1018)
RCI1-197-0220 Impact rail 1970 2200 Zinc Yellow (RAL 1018)
RCI1-201-0224 Impact rail 2010 2240 Zinc Yellow (RAL 1018)
RCI1-074-0097 Impact rail 740 970 Zinc Yellow (RAL 1018)
RCI1-207-0230 Impact rail 2070 2300 Zinc Yellow (RAL 1018)
RCI1-211-0234 Impact rail 2110 2340 Zinc Yellow (RAL 1018)
RCI1-217-0240 Impact rail 2170 2400 Zinc Yellow (RAL 1018)

Downloads

X-Protect_Floor_barrier

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Designed to serve as a standalone solution, it improves the safeguarding of building perimeters and vital infrastructure from the everyday risks of vehicle forks, pallets in transit, AMRs and AGVs, and other low-height hazards. It can be combined with our other impact protection products such as Impact High and Pedestrian barriers.

With a requirement of two fixings per section, even for spans up to 2.77 meters, its setup is straightforward and minimally invasive. This streamlined installation process saves time and decreases the need for modifications to your existing layout.


The Floor Barrier's performance is both reliable and formidable, capable of withstanding impacts up to 3000 J with less than 200mm deflection over a span of 1.77 meters.


Ease of installation, complemented by push-fit parts and heavy-duty expansion bolts, marries well with the system's adaptability. With our drilling template, adjustments can be made swiftly, allowing the Floor Barrier system to evolve in tandem with the shifting safety requirements of your workspace.

See the product in Axelent Xperience
