Mesh storeroom

Solid + (FK+)

3D

SSF testing and approval now provides proof that Axelent’s FK+ storeroom system can meet the toughest challenges. FK+ uses reinforced hinges, lock fittings, doors and walls. Security provided by Axelent!

Get your quote now

Models

  • Door

    2 Articles
    CAD Article Height (mm) Width (mm) Description
    45-42259002 2250 900 Door (right)
    3
    45-42259003 2250 900 Door (left)
    3
  • Wall section

    10 Articles
    CAD Article Height (mm) Width (mm) Description

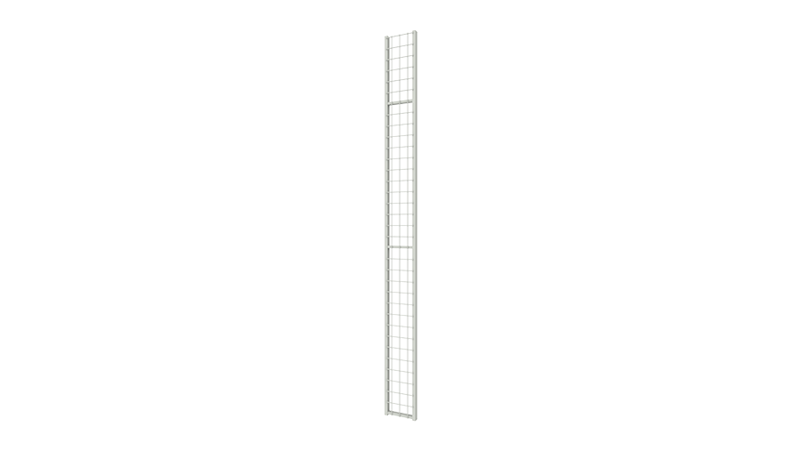

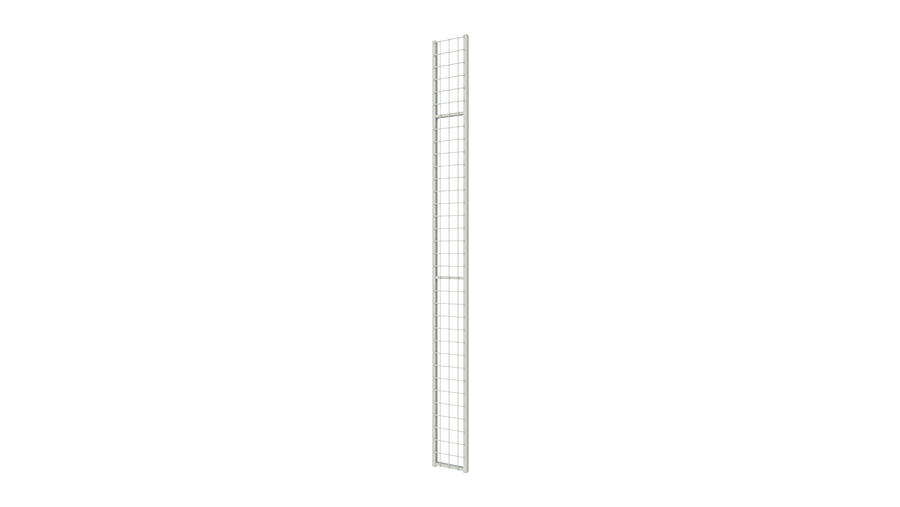

    45-2020 2250 200 Wall section
    1 3
    45-2025 2250 250 Wallsection
    3
    45-2035 2250 350 Wall section
    3
    45-2040 2250 400 Wall section
    3
    45-2055 2250 550 Wall section
    3
    45-2060 2250 600 Wall section
    3

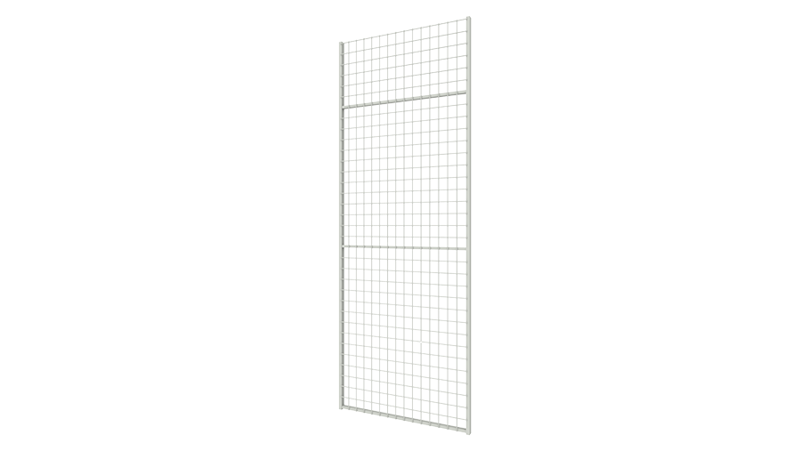

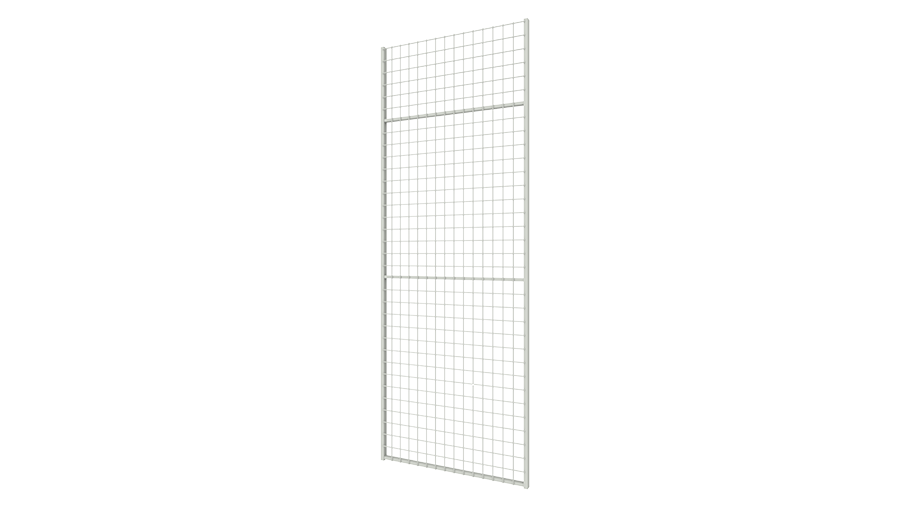

    45-2080 2250 800 Wall section
    2 3
    45-2100 2250 1000 Wall section
    3
    45-2110 2250 1100 Wall section
    3

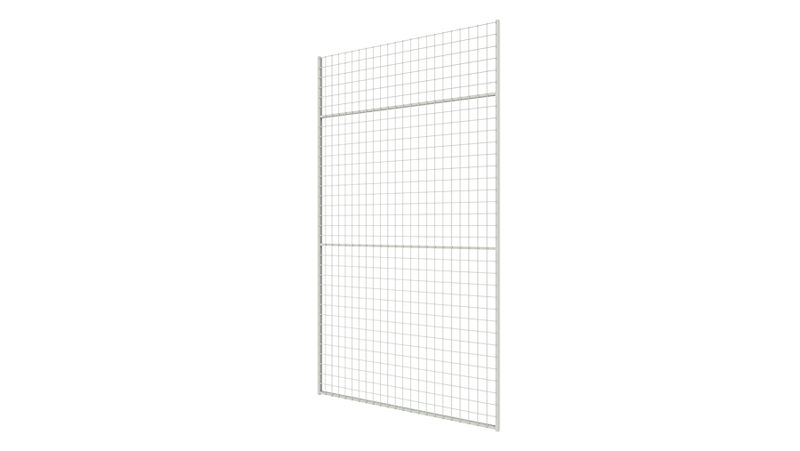

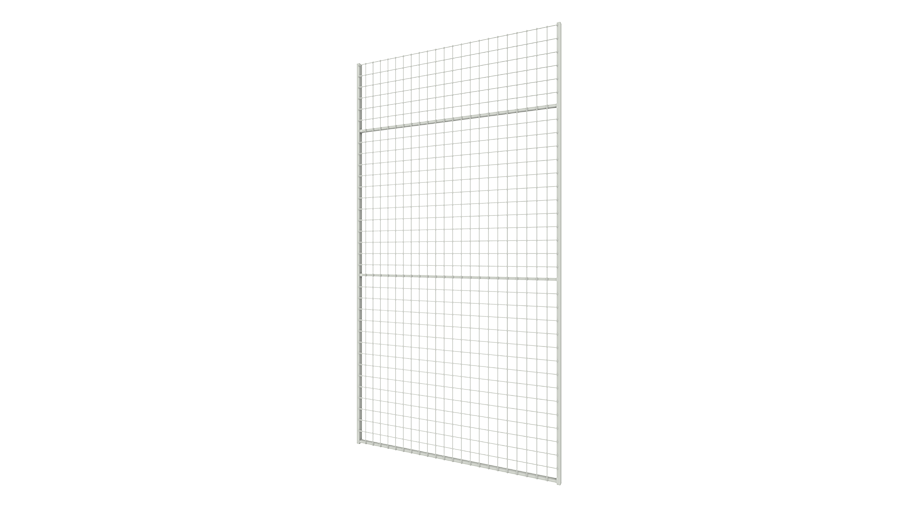

    45-2120 2250 1200
    1 3
  • Accessories

    3 Articles
    CAD Article Width (mm) Description

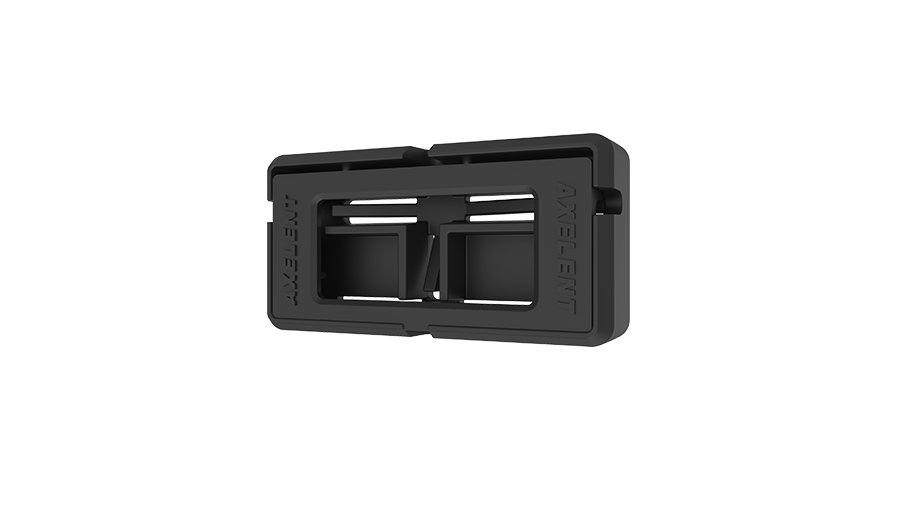

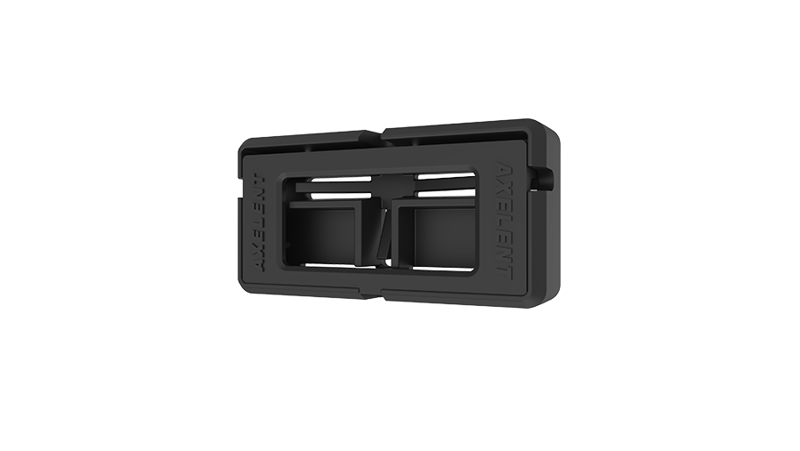

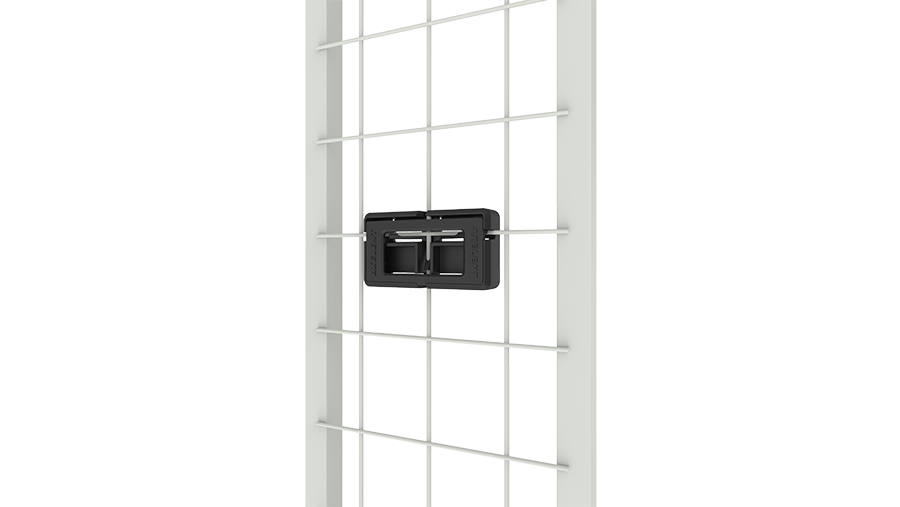

    34-00110 Number badge, (exist as accessories)
    2

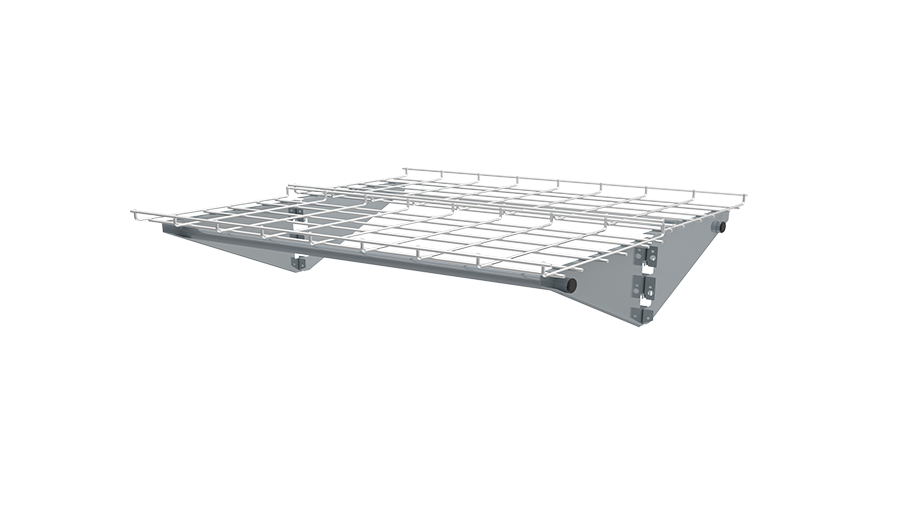

    34-00120 400 Shelf, double mounting (exist as accessories)
    1 3

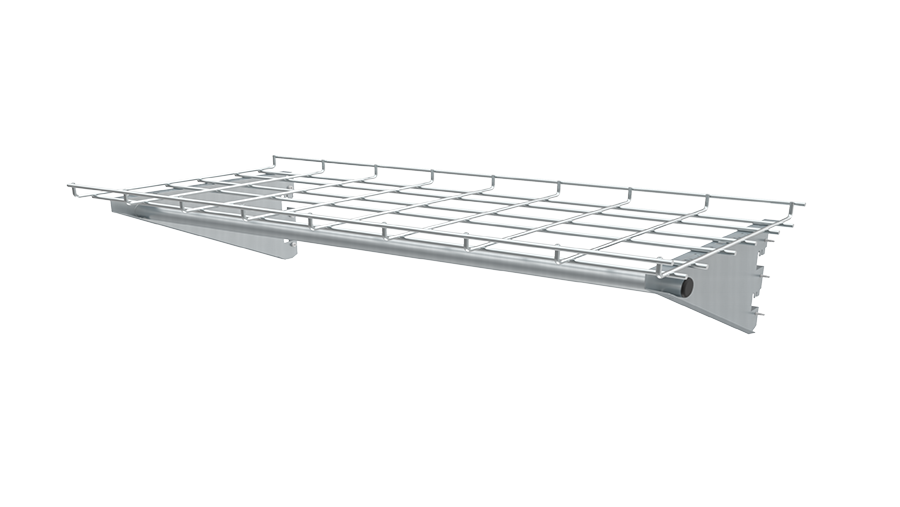

    34-00130 400 Shelf, single mounting, (exist as accessory)
    1 3

Downloads

Storeroom, mesh

Assembly instruction

Storeroom, roof

Assembly instruction

Safe-X | Storerooms

Brochure

Safe-X | Storeroom Technical information

Product information

Technical Specifications

SSF testing and approval now provides proof that Axelent’s FK+ storeroom system can meet the toughest challenges. FK+ uses reinforced hinges, lock fittings, doors and walls. Security provided by Axelent!

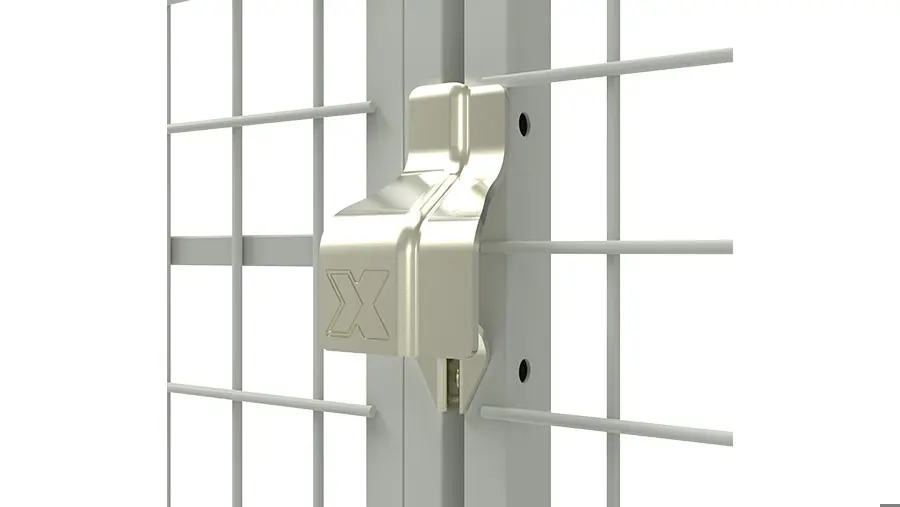

  • Extra hinge and lock fitting reinforcement.
  • Extra door and wall design reinforcement.
  • Can be combined with F and FP systems.
  • Can be cut and adapted to existing building dimensions.
  • Can be fitted with ceiling at heights above 3.5 metres.
  • The walls are painted RAL 9018.
  • Tested and approved according to the SSF's standard for burglary resistant storage rooms.
Product facts
Product Size (mm) Description
Vertical tubes 30x20 Tubular steel frame, wall
Horizontal tubes 25x15 Tubular steel frame, wall
Vertical tubes 40x20 Tubular steel frame, door
Horizontal tubes 35x15 Tubular steel frame, door
Vertical wires Ø 5 Steel mesh
Horizontal wires Ø 5 Steel mesh
Dimensions 50x65
45-4225900(1) 2000x860 Door opening dimensions





Axelent burglar-resistant storeroom walls system FK+ satisfies the requirements of the Swedish Theft Prevention Association.
