X-Guard Lite is a thinner and lighter version of the standard X-Guard system. The panel is available in three heights and are available in 13 different widths. Get your quote now

Models

  • Height 1300 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    W312-130025 1300x250 50x30
    1
    W312-130040 1300x400 50x30
    W312-130050 1300x500 50x30
    W312-130060 1300x600 50x30
    W312-130070 1300x700 50x30
    1
    W312-130080 1300x800 50x30
    W312-130090 1300x900 50x30
    W312-130100 1300x1000 50x30
    W312-130110 1300x1100 50x30
    1
    W312-130120 1300x1200 50x30
    W312-130130 1300x1300 50x30
    W312-130140 1300x1400 50x30
    W312-130150 1300x1500 50x30
    1
  • Height 1900 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    W312-190025 1900x250 50x30
    1
    W312-190040 1900x400 50x30
    W312-190050 1900x500 50x30
    W312-190060 1900x600 50x30
    W312-190070 1900x700 50x30
    1
    W312-190080 1900x800 50x30
    W312-190090 1900x900 50x30
    2
    W312-190100 1900x1000 50x30
    W312-190110 1900x1100 50x30
    W312-190120 1900x1200 50x30
    1
    W312-190130 1900x1300 50x30
    W312-190140 1900x1400 50x30
    W312-190150 1900x1500 50x30
    1
  • Height 2200 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    W312-220025 2200x250 50x30
    W312-220040 2200x400 50x20
    W312-220050 2200x500 50x30
    W312-220060 2200x600 50x30
    W312-220070 2200x700 50x30
    1
    W312-220080 2200x800 50x30
    W312-220090 2200x900 50x30
    W312-220100 2200x1000 50x30
    1
    W312-220110 2200x1100 50x30
    W312-220120 2200x1200 50x30
    W312-220130 2200x1300 50x30
    1
    W312-220140 2200x1400 50x30
    W312-220150 2200x1500 50x30

Downloads

X-Guard Lite Assembly guide Mesh

Assembly guide

Technical Specifications

X-Guard Lite is a thinner and lighter version of the standard X-Guard system.

The panel is available in three heights and are available in 13 different widths.

The size of mesh is cc 50x30 mm. The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm. The recommended safety distance is 200 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

Related products

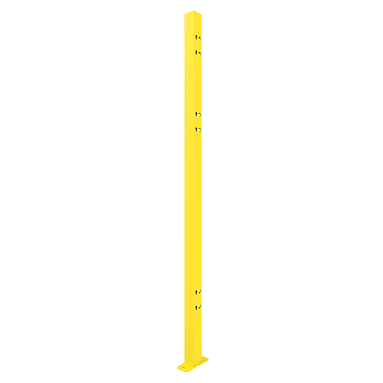

Post Lite 50x50mm
