A number of brackets are available for X-Guard. These allow simple and quick attachment of panels to posts.  The quick fittings has a top and a bottom attachment. The top fitting is a simple click-on fitting which can be fitted to the three sides of the post. The click-on function means simple an...

Get your quote now

Models

  • Quick fittings

    5 Articles
    CAD Article Description
    T00-01 Fittings for X-Guard, 1 pack
    T00-02 Fittings for X-Guard, 1 pack, for 4 mm plastic panels
    T00-03 Fittings for X-Guard, 1 pack, for 6 mm plastic panels
    T00-04 Fittings for X-Guard, 1 pack, for horizontal panels
    1
    T00-05 Fittings for X-Guard, 1 pack, for horizontal panels different heights
    1
  • Quick fittings - optional placing

    2 Articles
    CAD Article Description
    K1-01 Kit for optional placing of quick fittings, 1 pack
    1
    K1-03 Kit for optional placing of quick fittings upper bracket X-Guard, 1 pack
    1

Downloads

T00-04

Assembly instruction

T00-05

Assembly instruction

X-Guard Technical

Brochure

Technical Specifications

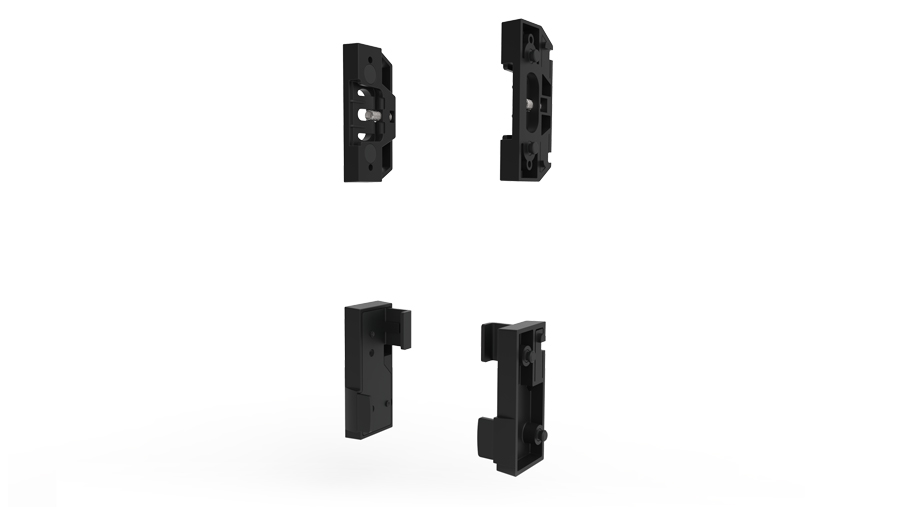

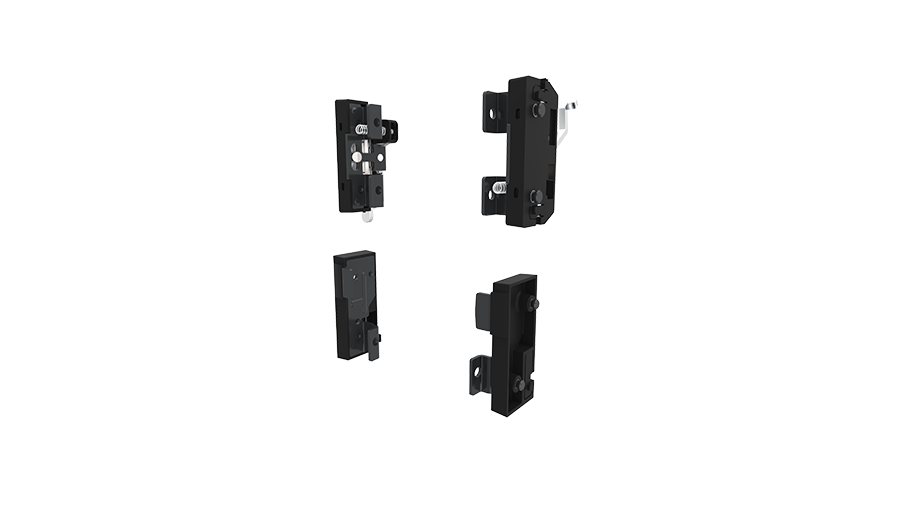

A number of brackets are available for X-Guard. These allow simple and quick attachment of panels to posts.

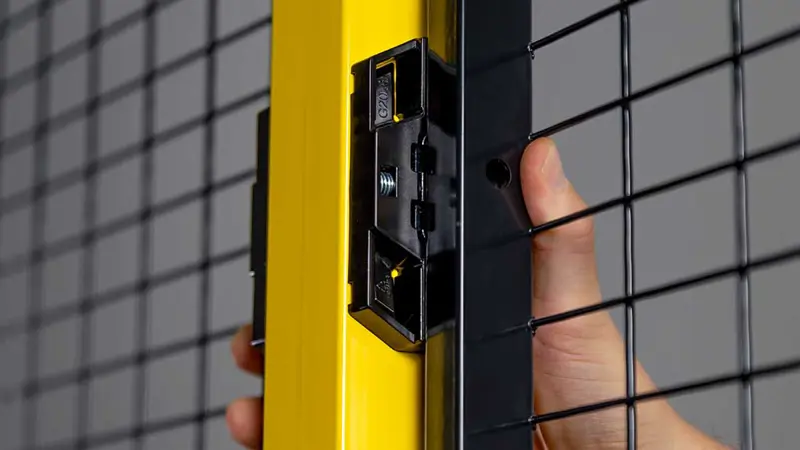

The quick fittings has a top and a bottom attachment. The top fitting is a simple click-on fitting which can be fitted to the three sides of the post. The click-on function means simple and above all quick fitting. A fitter is only required to fit mesh panels to X-Guard machine guards.

The lower fitting acts as a guide to steer the panel into the correct position. The panel is simply clicked into place in the top bracket, when it is in place.

A quick fitting is also available for free positioning of the X-Guard post (K1-01).
