Cable trays

Bolt/Flange nut

3D

Only one bolt model is required for mounting your X-Tray system.

One M8 carriage bolt with a square shoulder to save you having to hold against when you tighten the nut. The bags are stand-up and re-closable.

Get your quote now

Models

CAD Article Surface Treatment Description

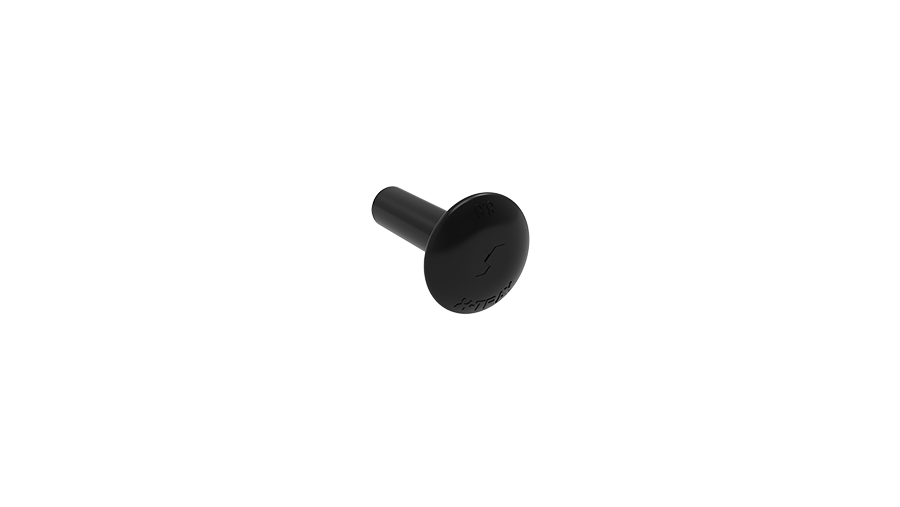

2761 Black Zink X61 Bolt M8x27
1
2762 Black Zink X62 Flange Nut M8
1
7100-031 Zinc Plated Expander Bolt M8x65

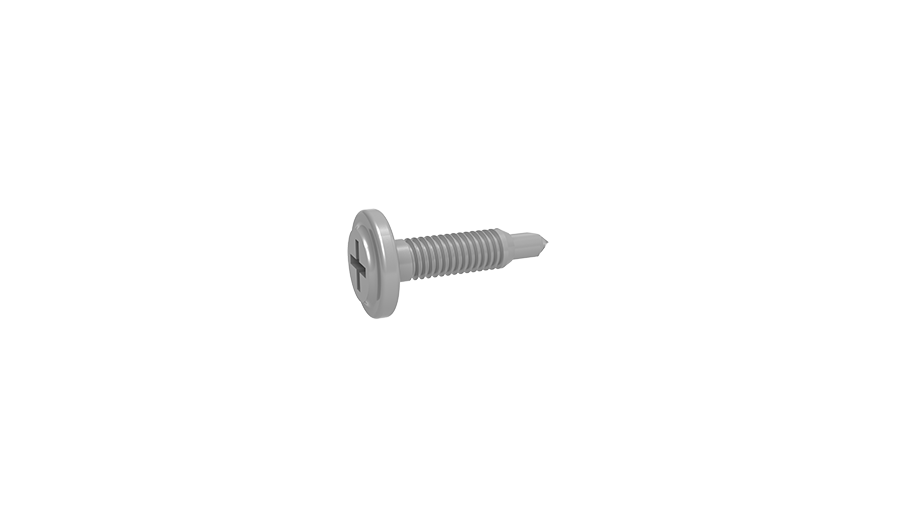

7100-070 Zinc Plated Self drilling screw, washer head 4.2x19
1
