Locks and switches

Hitch lock

3D

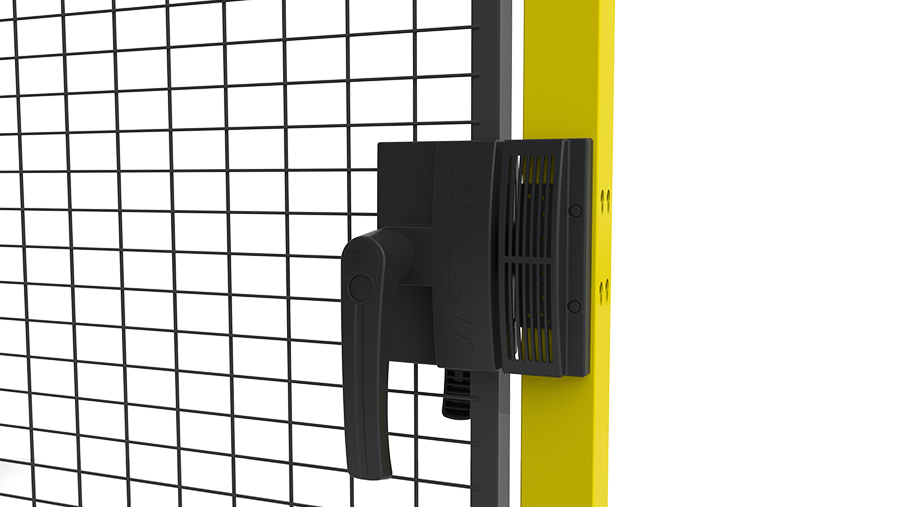

This lock is an alternative to our X-lock and has an integrated mounting for non-contact switches. The lock has an adjustable hitch for eliminating any internal play. The handle is spring-loaded to remove the ability of the door to automatically fully close. To fully shut the door requires delibe...

Get your quote now

Models

CAD Article Description
L10-05-2 Hitch lock for hinge doors right/left
1
L20-05-2 Hitch lock for sliding doors right/left
1
G3059-3 Lock plate for hitch lock

Downloads

L10-05-2

Assembly instruction

L20-05-2

Assembly instruction

X-Guard Locks

Product information

X-Guard Technical

Brochure

Technical Specifications

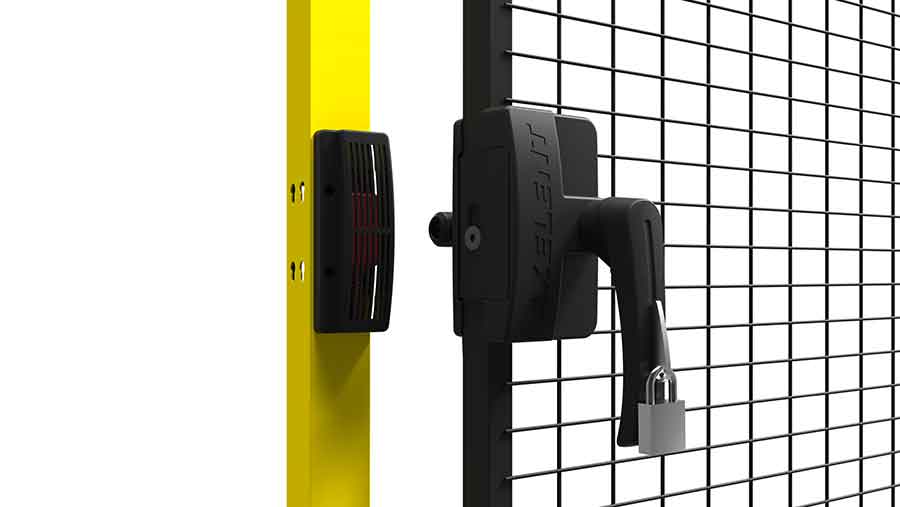

This lock is an alternative to our X-lock and has an integrated mounting for non-contact switches. The lock has an adjustable hitch for eliminating any internal play. The handle is spring-loaded to remove the ability of the door to automatically fully close. To fully shut the door requires deliberate operation of the handle eliminating accidental closure. The external handle has an integrated padlock-loop which makes it possible to secure the door to prevent accidental closure when servicing or machine setting for example.

Note, padlock and/or switch are not included.
