Mesh panel Classic

3D

X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.

Read more
Get your quote now

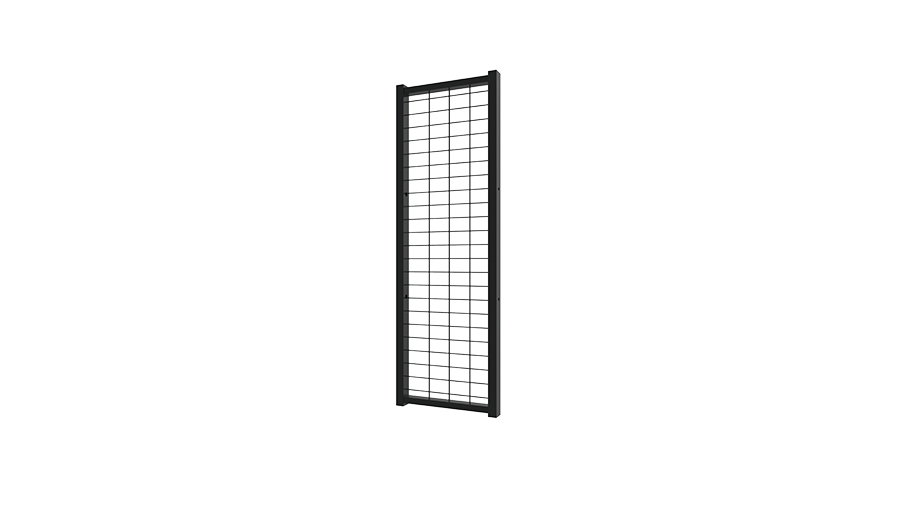

W322-075025 Mesh panel Classic

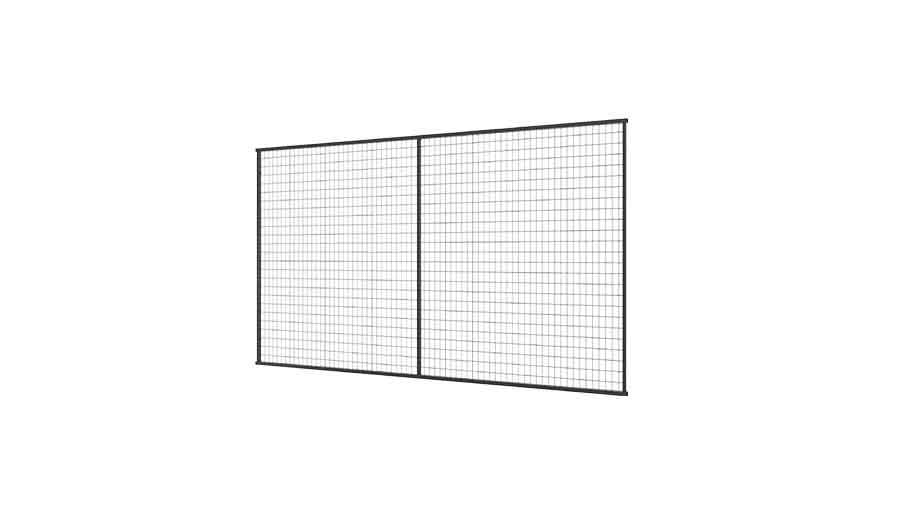

W322-130220 horisontal mesh panel

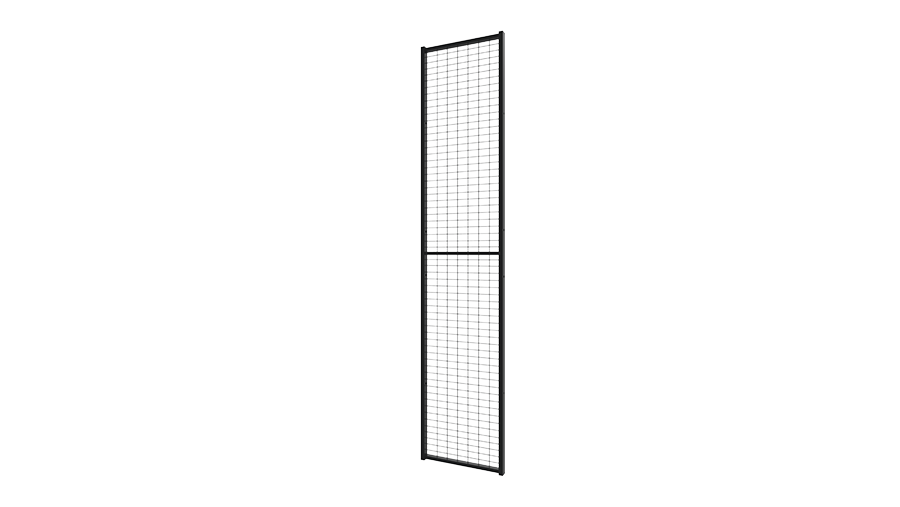

W322-190040 Mesh panel Classic

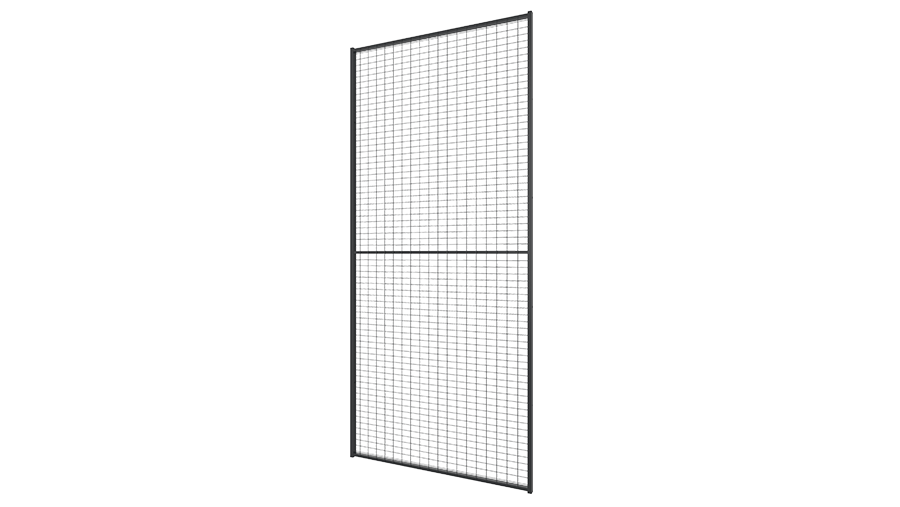

W322-220100 Mesh panel Classic

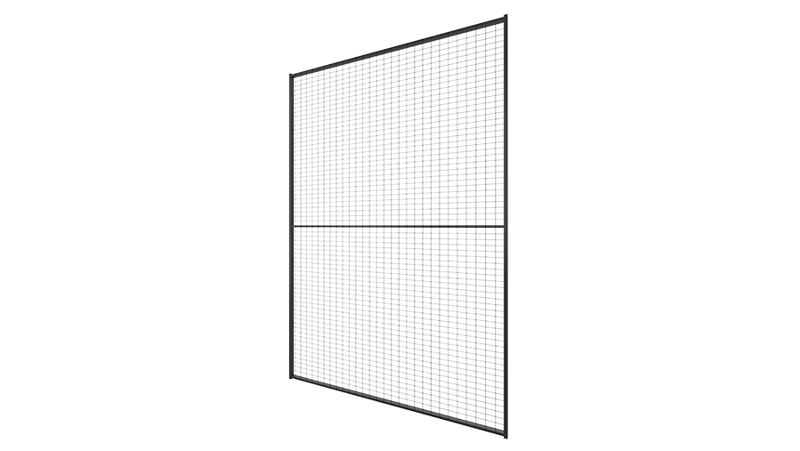

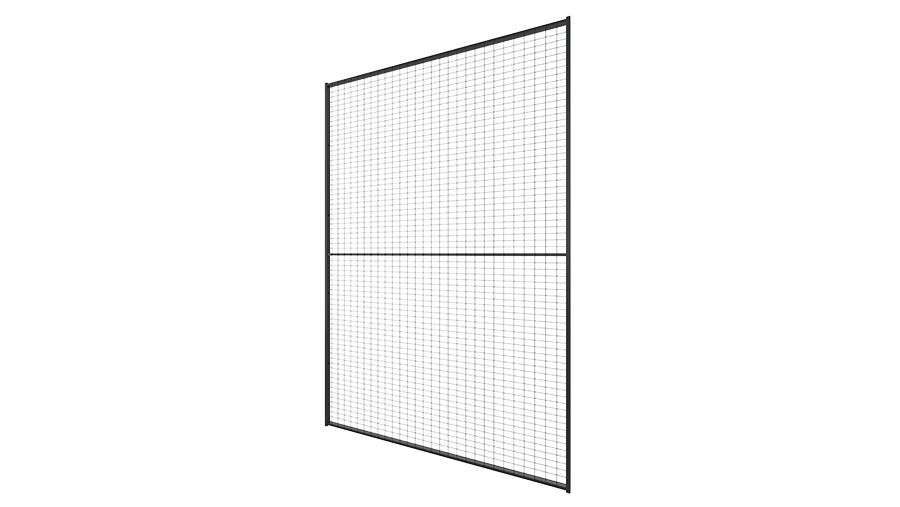

W322-220150 Mesh panel Classic
Select CAD Format
Mesh panel Classic horisontal mesh panel Mesh panel Classic Mesh panel Classic Mesh panel Classic

Models

  • Height 750 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    		W322-075025 750x250 50x30
    1
    		W322-075040 750x400 50x30
    		W322-075050 750x500 50x30
    		W322-075060 750x600 50x30
    		W322-075070 750x700 50x30
    		W322-075080 750x800 50x30
    		W322-075090 750x900 50x30
    		W322-075100 750x1000 50x30
    		W322-075110 750x1100 50x30
    		W322-075120 750x1200 50x30
    		W322-075130 750x1300 50x30
    		W322-075140 750x1400 50x30
    		W322-075150 750x1500 50x30
    View more View less

  • Height 1300 mm

    14 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    		W322-130025 1300x250 50x30
    		W322-130040 1300x400 50x30
    		W322-130050 1300x500 50x30
    		W322-130060 1300x600 50x30
    		W322-130070 1300x700 50x30
    		W322-130080 1300x800 50x30
    		W322-130090 1300x900 50x30
    		W322-130100 1300x1000 50x30
    		W322-130110 1300x1100 50x30
    		W322-130120 1300x1200 50x30
    		W322-130130 1300x1300 50x30
    		W322-130140 1300x1400 50x30
    		W322-130150 1300x1500 50x30
    		W322-130220 1300x2200 50x30
    1 1
    View more View less

  • Height 1900 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    		W322-190025 1900x250 50x30
    		W322-190040 1900x400 50x30
    1
    		W322-190050 1900x500 50x30
    		W322-190060 1900x600 50x30
    		W322-190070 1900x700 50x30
    		W322-190080 1900x800 50x30
    		W322-190090 1900x900 50x30
    		W322-190100 1900x1000 50x30
    		W322-190110 1900x1100 50x30
    		W322-190120 1900x1200 50x30
    		W322-190130 1900x1300 50x30
    		W322-190140 1900x1400 50x30
    		W322-190150 1900x1500 50x30
    View more View less

  • Height 2200 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    		W322-220025 2200x250 50x30
    		W322-220040 2200x400 50x30
    		W322-220050 2200x500 50x30
    		W322-220060 2200x600 50x30
    		W322-220070 2200x700 50x30
    		W322-220080 2200x800 50x30
    		W322-220090 2200x900 50x30
    		W322-220100 2200x1000 50x30
    1
    		W322-220110 2200x1100 50x30
    		W322-220120 2200x1200 50x30
    		W322-220130 2200x1300 50x30
    		W322-220140 2200x1400 50x30
    		W322-220150 2200x1500 50x30
    1
    View more View less

  • Height 2400 mm

    13 Articles
    CAD Article Height x Width (mm) Mesh Aperture
    		W322-240025 2400x250 50x30
    1
    		W322-240040 2400x400 50x30
    1
    		W322-240050 2400x500 50x30
    1
    		W322-240060 2400x600 50x30
    1
    		W322-240070 2400x700 50x30
    1
    		W322-240080 2400x800 50x30
    1
    		W322-240090 2400x900 50x30
    1
    		W322-240100 2400x1000 50x30
    1
    		W322-240110 2400x1100 50x30
    1
    		W322-240120 2400x1200 50x30
    1
    		W322-240130 2400x1300 50x30
    1
    		W322-240140 2400x1400 50x30
    1
    		W322-240150 2400x1500 50x30
    1
    View more View less

Downloads

X-guard classic

Assembly instruction

X-Guard Technical

Brochure

Product information

X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.



The Classic 50x30 comes in four heights. The 750 mm panel is only used as an extension panel to the other heights. The panels come in thirteen widths, with the exception of the 1300 mm panel, which comes in fourteen widths. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

View more View less
