Mesh panel Premium

3D

X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.

Read more
Get your quote now
Mesh panel Premium

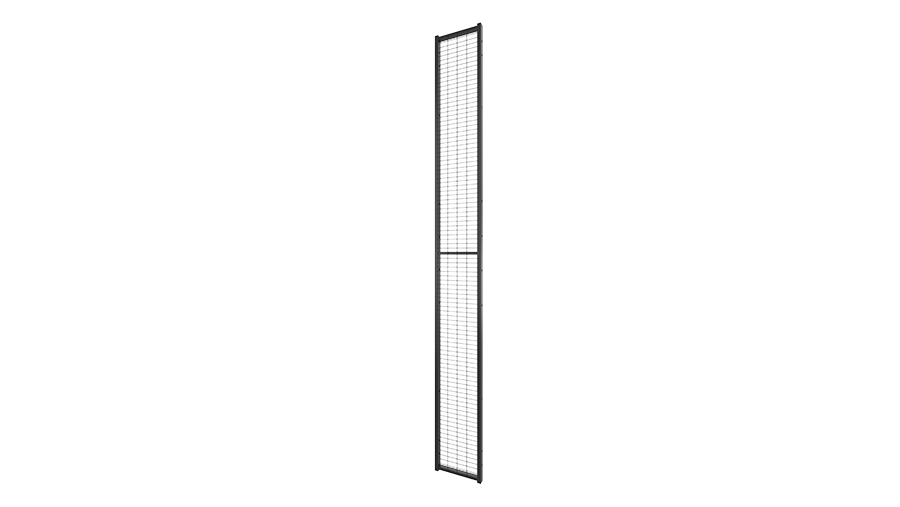

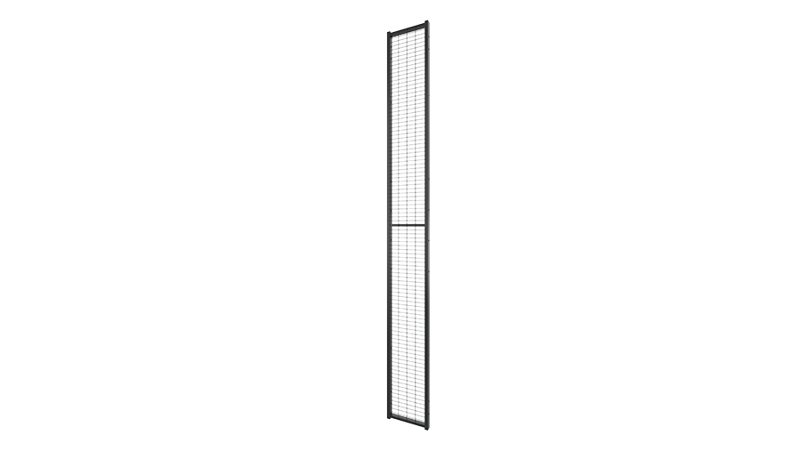

W321-220025 Mesh panel Premium

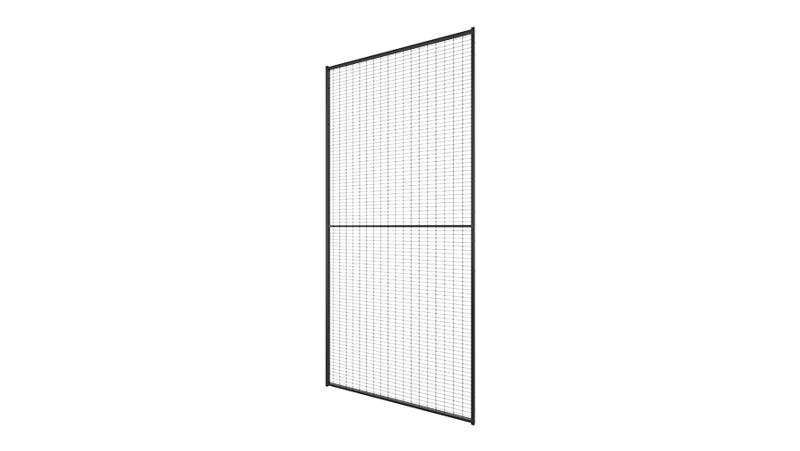

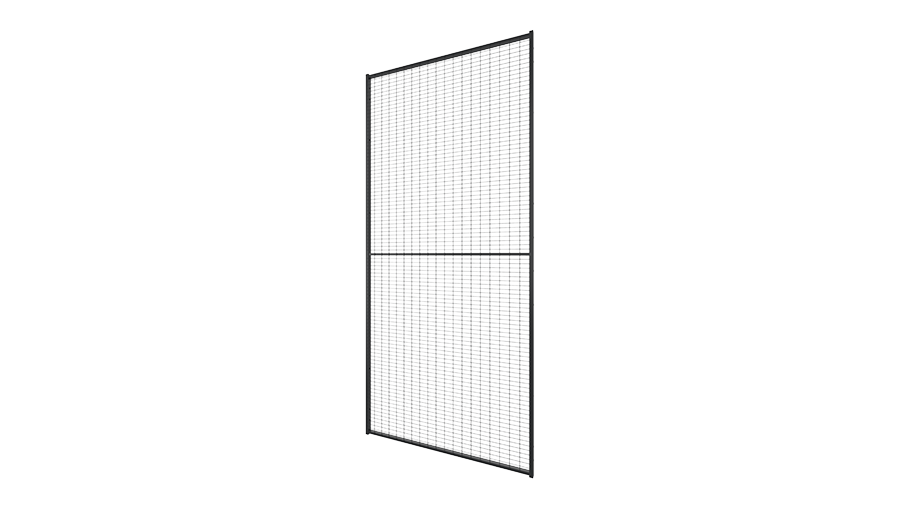

W321-220100 Mesh panel Premium
Select CAD Format
Mesh panel Premium Mesh panel Premium Mesh panel Premium

Models

CAD Article Height x Width (mm) Mesh Aperture
W321-220025 2200x250 50x20
1
W321-220040 2200x400 50x20
W321-220070 2200x700 50x20
W321-220100 2200x1000 50x20
1
W321-220120 2200x1200 50x20
W321-220150 2200x1500 50x20
View more View less

Downloads

X-guard classic

Assembly instruction

X-Guard Premium

Assembly instruction

X-Guard Technical

Brochure

Technical Specifications

X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.

The Premium 50x20 is 2200 mm in height and comes in six widths. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

View more View less
