We have two different posts which comes in the sizes 50x50mm and 70x70mm. The Premium 70x70 mm and Classic 50x50 mm posts offer customizable, robust solutions for secure installations, featuring multiple heights, colors, and unique design elements for ease of fitting and aesthetic appeal.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Zink Yellow | RAL 1018

    9 Articles
    CAD Article Description Height (mm) Color
    P11-140 50x50 1400 Zinc Yellow (RAL 1018)
    1
    P13-140 70x70 1400 Zinc Yellow (RAL 1018)
    1
    P11-148 50x50 1480 Zinc Yellow (RAL 1018)
    P11-200 50x50 2000 Zinc Yellow (RAL 1018)

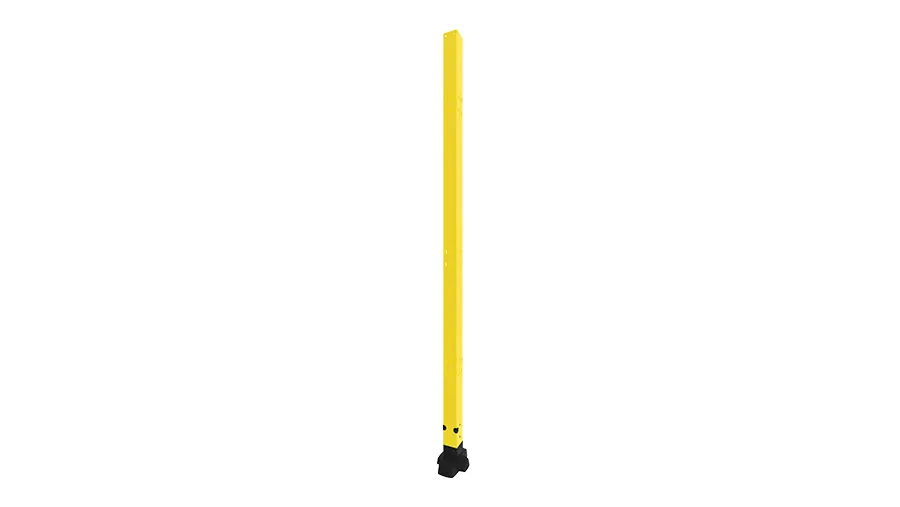

    P13-200 70x70 2000 Zinc Yellow (RAL 1018)
    1
    P11-230 50x50 2300 Zinc Yellow (RAL 1018)
    P13-230 70x70 2300 Zinc Yellow (RAL 1018)
    1
    P11-250 50x50 2500 Zinc Yellow (RAL 1018)
    P13-250 70x70 2500 Zinc Yellow (RAL 1018)
    1
  • Graphite Black | RAL 9011

    8 Articles
    CAD Article Description Height (mm) Color
    P31-140 50x50 1400 Graphite Black (RAL 9011)
    1
    P33-140 70x70 1400 Graphite Black (RAL 9011)
    1
    P31-200 50x50 2000 Graphite Black (RAL 9011)
    P33-200 70x70 2000 Graphite Black (RAL 9011)
    1
    P31-230 50x50 2300 Graphite Black (RAL 9011)
    P33-230 70x70 2300 Graphite Black (RAL 9011)
    1
    P31-250 50x50 2500 Graphite Black (RAL 9011)
    P33-250 70x70 2500 Graphite Black (RAL 9011)
    1
  • Traffic Red | RAL 3020

    8 Articles
    CAD Article Description Height (mm) Color
    P71-140 50x50 1400 Traffic Red (RAL 3020)
    1
    P73-140 70x70 1400 Traffic Red (RAL 3020)
    1
    P71-200 50x50 2000 Traffic Red (RAL 3020)
    P73-200 70x70 2000 Traffic Red (RAL 3020)
    1
    P71-230 50x50 2300 Traffic Red (RAL 3020)
    P73-230 70x70 2300 Traffic Red (RAL 3020)
    1
    P71-250 50x50 2500 Traffic Red (RAL 3020)
    P73-250 70x70 2500 Traffic Red (RAL 3020)
    1
  • Signal Blue | RAL 5005

    4 Articles
    CAD Article Description Height (mm) Color
    P21-140 50x50 1400 Signal Blue (RAL 5005)
    1
    P21-200 50x50 2000 Signal Blue (RAL 5005)
    P21-230 50x50 2300 Signal Blue (RAL 5005)
    P21-250 50x50 2500 Signal Blue (RAL 5005)

Downloads

X-Guard anchor bolt

Assembly instruction

Combination option for Counter plate

Product information

X-Guard Premium

Assembly instruction

X-guard classic

Assembly instruction

X-Guard Technical

Brochure

Product information

We have two different posts which comes in the sizes 50x50mm and 70x70mm.
The Premium 70x70 mm and Classic 50x50 mm posts offer customizable, robust solutions for secure installations, featuring multiple heights, colors, and unique design elements for ease of fitting and aesthetic appeal.

The Premium 70x70 mm and Classic 50x50 mm posts both offer versatile and robust solutions for machine guarding and other applications. Available in several heights, both types come with an extension piece, the Premium offering four different heights and the Classic a single extension of 750 mm. The posts are designed to meet various needs, with the Premium post being particularly suitable when a more robust and higher guard is required.

Both post types are available in standard colours of Zinc yellow (RAL 1018), Graphite Black (RAL 9011), and Traffic Red (RAL 3020), with the Premium also available in Traffic Red (RAL 3020) and the Classic offering an additional option of Signal Blue (RAL 5005). Customised colours can be requested for further personalisation.

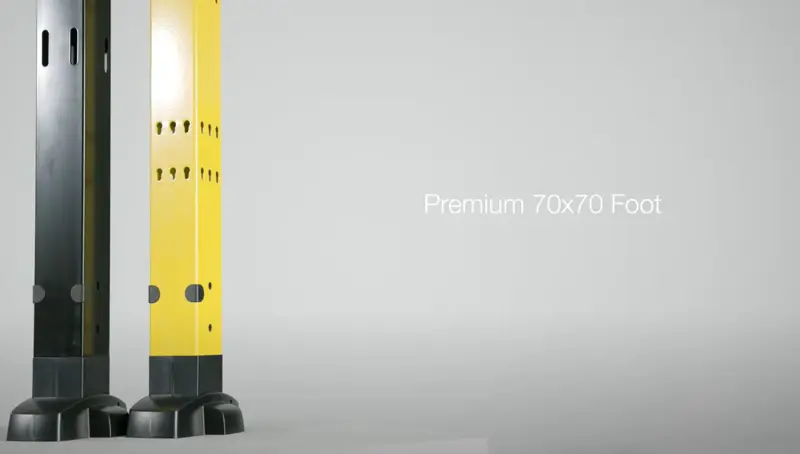

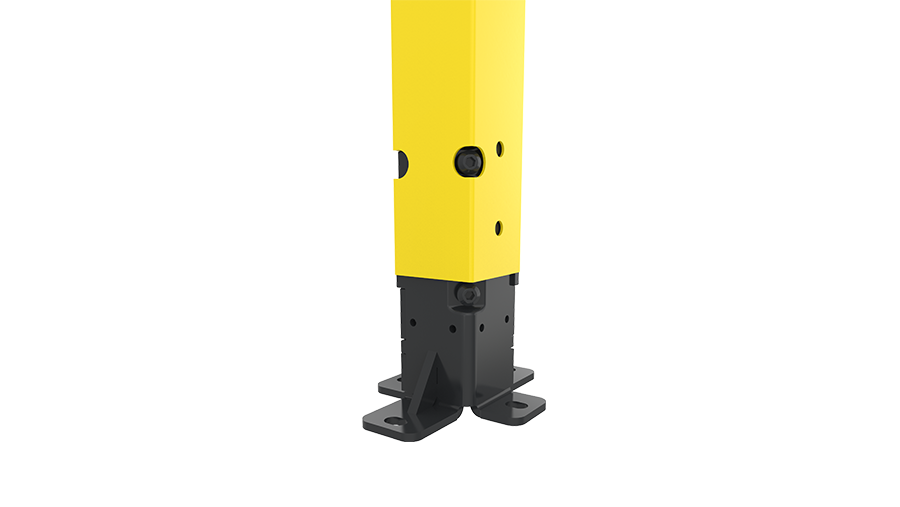

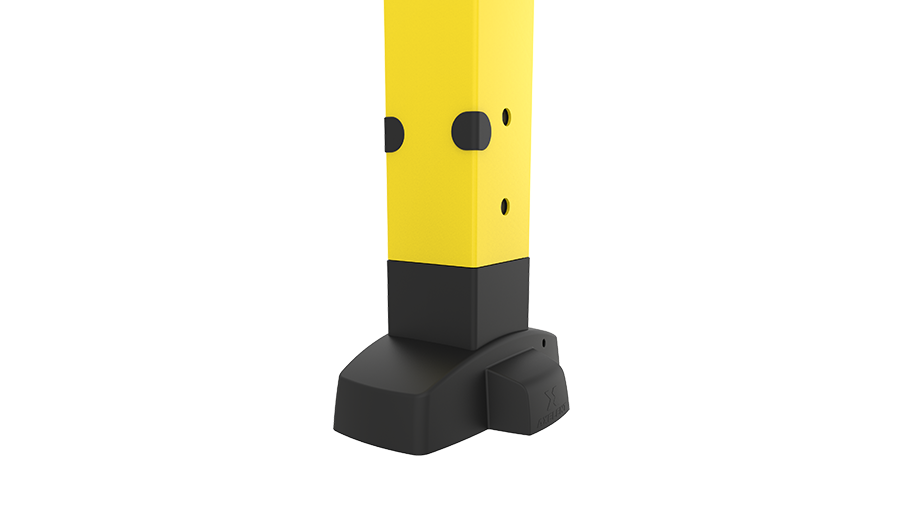

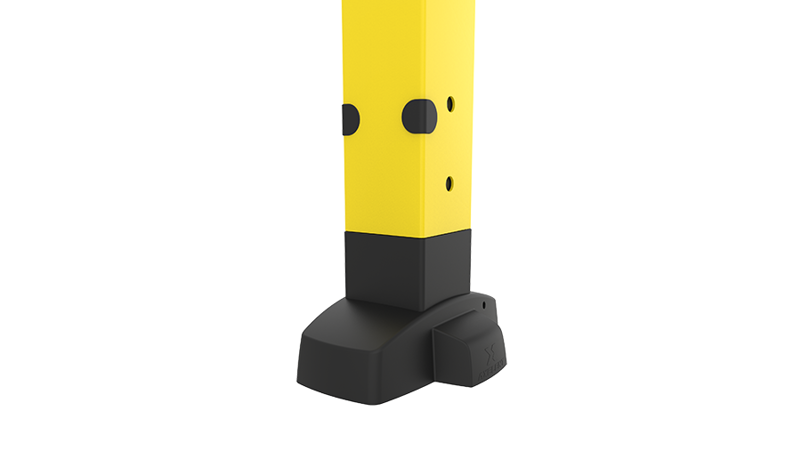

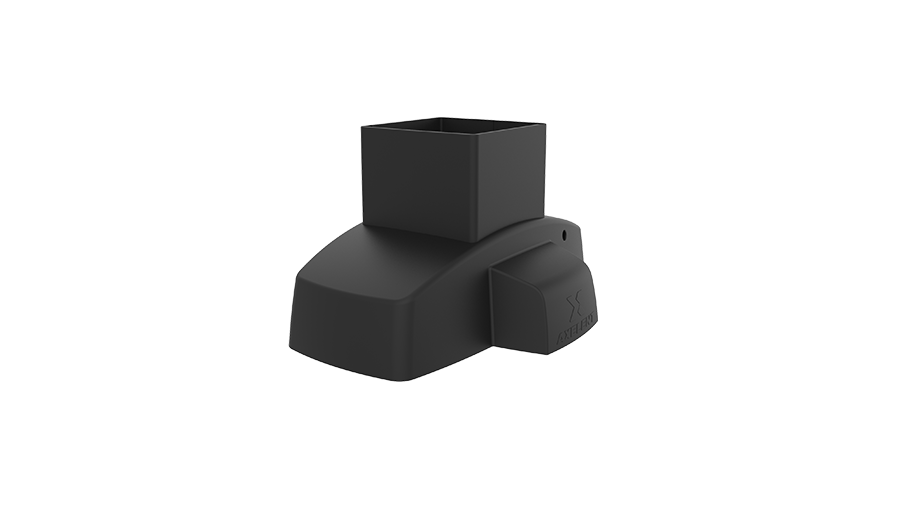

The Premium post features a separate foot that can be attached at four different angles, providing an optimal solution for tight spaces due to its non-centred foot plate. This design enhances the post's adaptability and functionality. The Classic post, on the other hand, comes with a foot cover that conceals the welded foot, offering a sleek design that simplifies cleaning processes.

Both posts are equipped with holes punched on three sides to simplify the fitting process and ensure a secure installation with a floor gap of 100 mm. To facilitate mounting, top plugs and expansion bolts for floor fixing are included with both types of posts. The Premium post's black foot adds a distinctive touch to its design, enhancing its aesthetic appeal and functional versatility.
