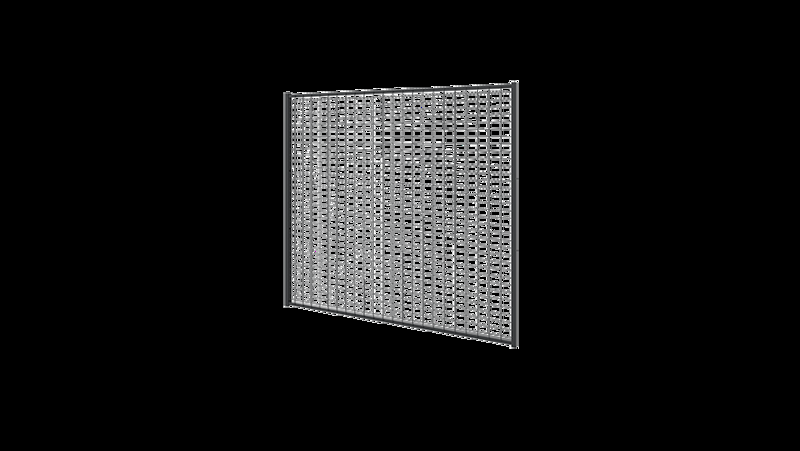

Mesh panels 50x30 mm

The mesh section is available in two widths, 1100 mm and 2200 mm and three heights. The standard section colour is RAL 9011 (black).
We can however supply panels in the colours customers require.

Post extensions are available as an accessory. This makes it possible to mount the anti-tip protection higher than the post itself.

Product facts
Uprights 15x15 mm
Horizontals 19x19 mm
Vertical wires Ø 2,5 mm
Horizontal wires Ø 3 mm
Mesh aperture 50x30 mm
Brackets 3 mm sheet metal, elongated holes for vertical adjustment
Finish Phosphatising/Epoxy paint
Colour mesh panel Light grey RAL 9018, black RAL 9011
Colour bracket Light grey RAL 9018, silver RAL 9006,
sendzimir galvanized
(Other colours can be quoted)
Product facts
Art. nr Height (mm) x Width (mm)

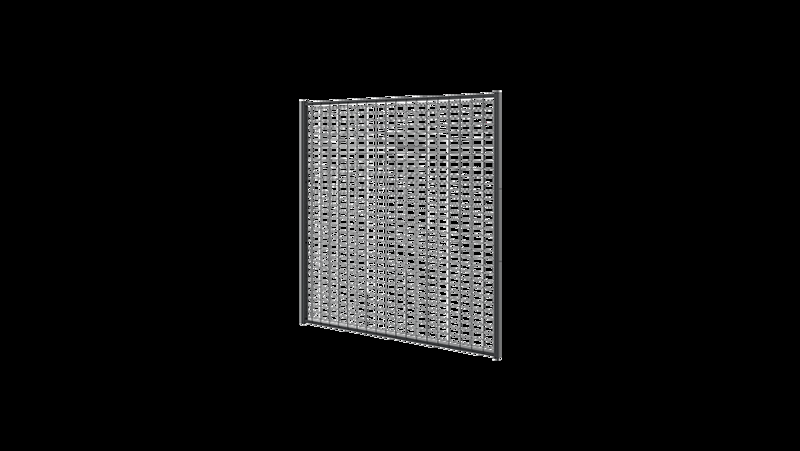

301-100-110 1000x1100
301-120-110 1200x1100

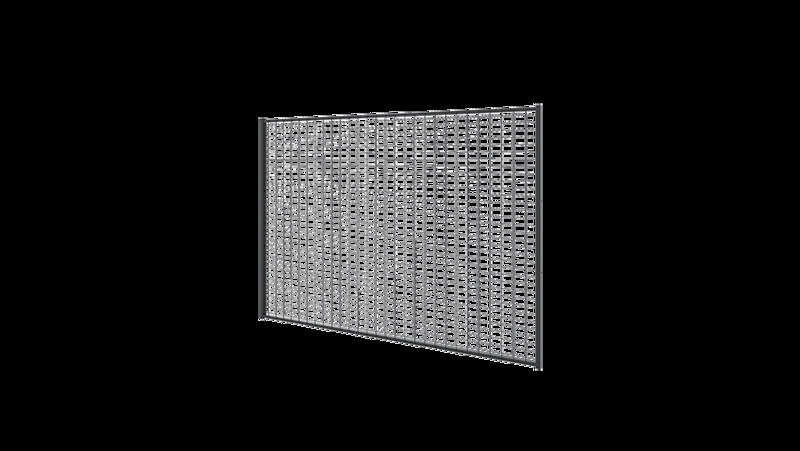

301-150-110 1500x1100
Product facts
Art. nr Height (mm) x Width (mm)

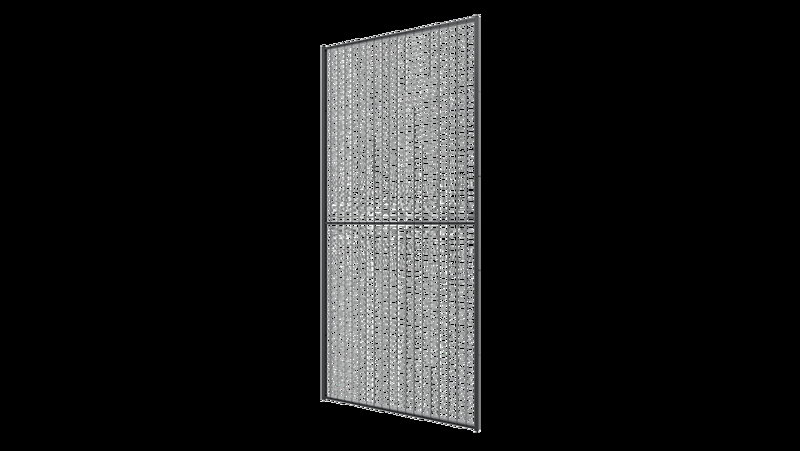

301-100-220 1000x2200

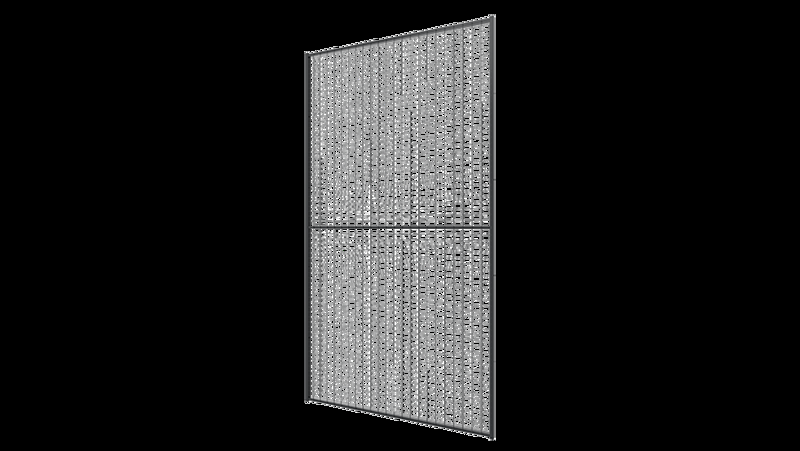

301-120-220 1200x2200

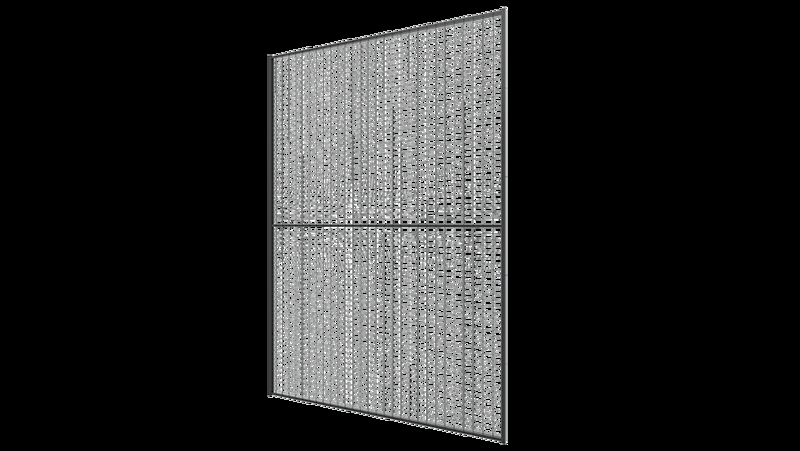

301-150-220 1500x2200
