X-Rail Fall Protection height 1400 mm

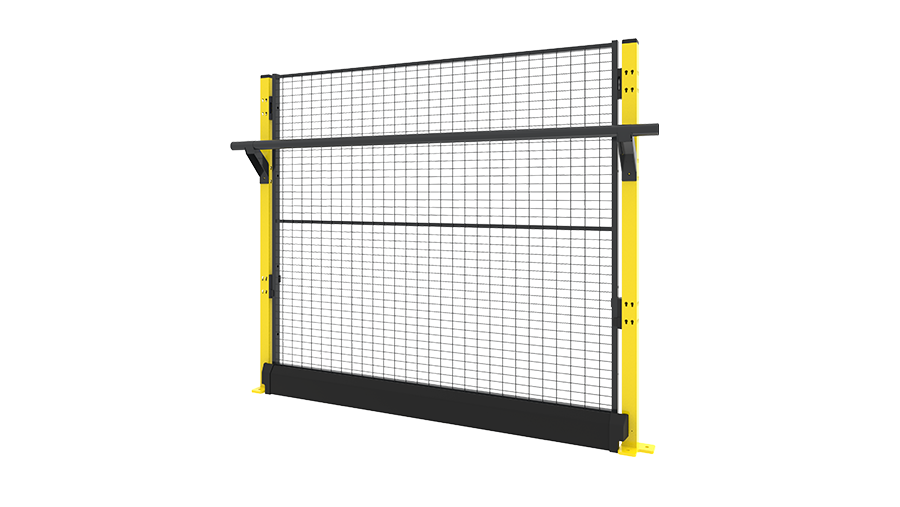

Height 1400 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Get your quote now

Models

  • Panels

    13 Articles
    CAD Article Width (mm) Height (mm) Color
    W322-130025 250 1300 Graphite Black (RAL 9011)
    W322-130040 400 1300 Graphite Black (RAL 9011)
    W322-130050 500 1300 Graphite Black (RAL 9011)
    W322-130060 600 1300 Graphite Black (RAL 9011)
    W322-130070 700 1300 Graphite Black (RAL 9011)
    W322-130080 800 1300 Graphite Black (RAL 9011)
    W322-130090 900 1300 Graphite Black (RAL 9011)
    W322-130100 1000 1300 Graphite Black (RAL 9011)
    W322-130110 1100 1300 Graphite Black (RAL 9011)
    W322-130120 1200 1300 Graphite Black (RAL 9011)
    W322-130130 1300 1300 Graphite Black (RAL 9011)
    W322-130140 1400 1300 Graphite Black (RAL 9011)
    W322-130150 1500 1300 Graphite Black (RAL 9011)
  • Posts 50x50mm

    1 Articles
    CAD Article Height (mm) Color
    P1170-140 1400 Zinc Yellow (RAL 1018)
    1

Downloads

X-Rail Anchor Bolt

Assembly instruction

List of fastening materials for X-Rail

Product information

Combination option for Counter plate

Product information

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Product information

X-Rail Fall protection

Assembly instruction

Product information

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

X-Rail 1400 mm can be used either without panels or with X-Guard Classic mesh panels.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
